LED work lamp reflector LAYTZ LY7107 64xLED 6400lm square
LED work lamp reflector LAYTZ LY7107 64xLED 6400lm square

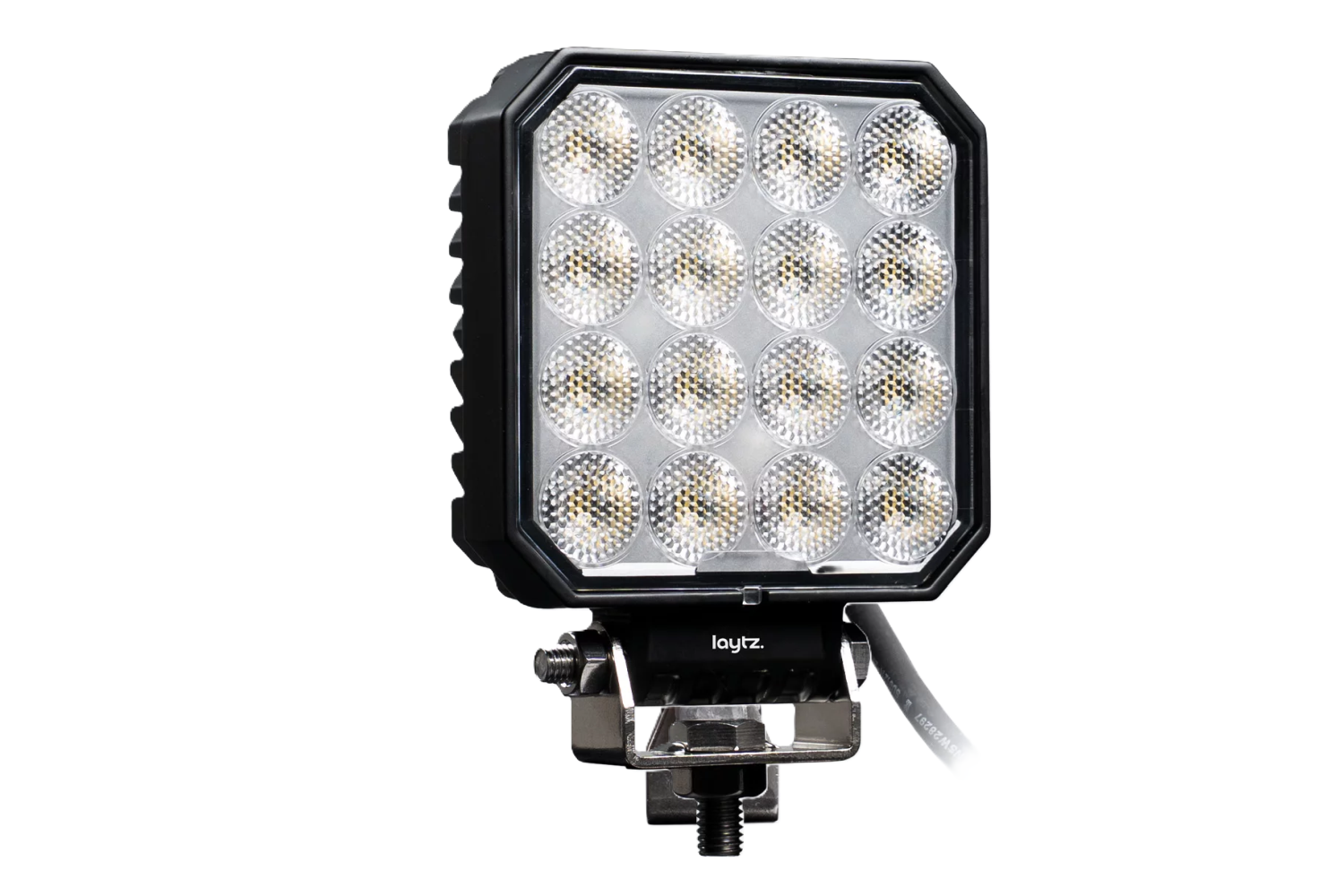

The LAYTZ LY7107 work light is the most powerful square light in the Grey series, designed for agricultural, construction, and specialist machinery operators who require maximum illumination across a wide work area. It's also suitable for commercial and off-road vehicles, boats, and as additional lighting for buses and trucks.

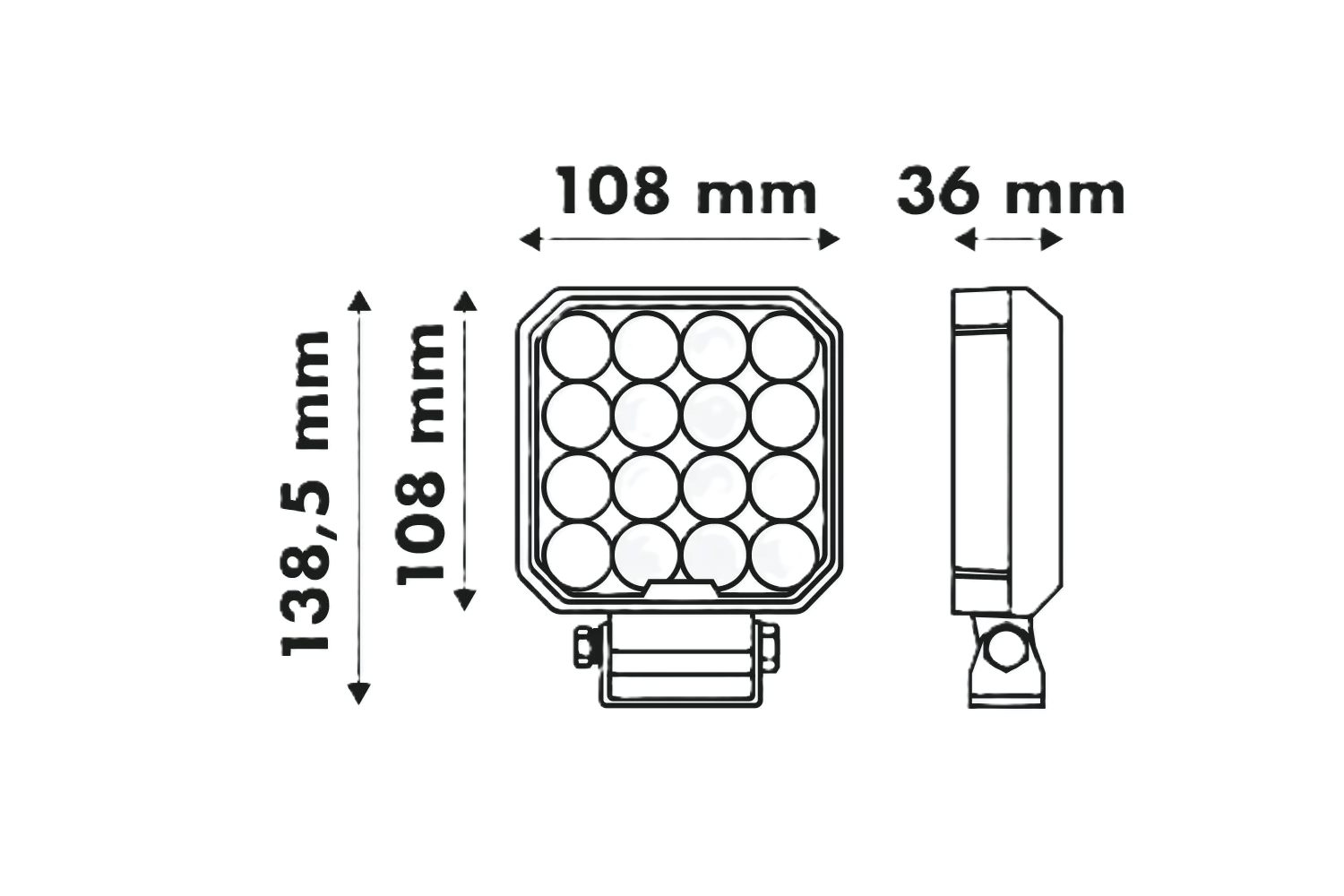

The compact, robust housing , measuring 108 x 108 x 36 mm, is made of durable materials resistant to shock and mechanical damage. This ensures reliable operation in harsh field conditions. Its wide supply voltage range of 10–30 V allows for installation in both 12 V and 24 V systems.

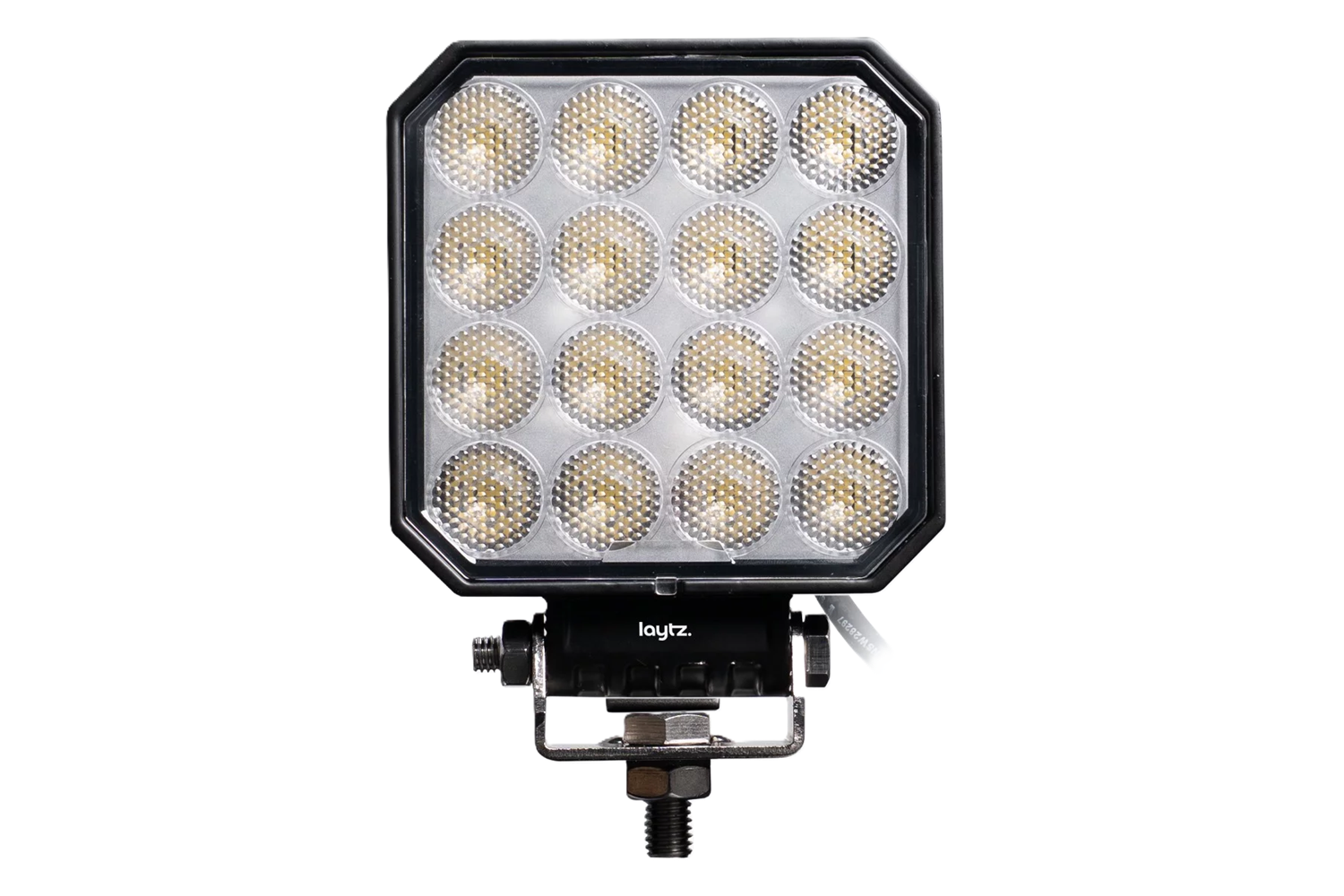

The lamp is equipped with 64 LEDs with a brightness of 6,400 lumens , emitting neutral white light at a temperature of 5,700 K. The diffused lens evenly illuminates the workspace, providing a wide beam angle and good visibility at night and in low-light conditions. Its high output makes it suitable for both precise tasks and wide-area illumination, increasing comfort and safety when working in the field, on construction sites, or in specialized vehicles.
Tightness class
IP68/69K rated work lights provide the highest level of protection against dust and water , making them ideal for the most demanding work environments. IP68 means complete resistance to dust ingress and the ability to withstand prolonged immersion in water (over 1 meter deep), while IP69K guarantees resistance to high-pressure and high-temperature water, such as during pressure washing. These properties make the lights an ideal choice for use in commercial vehicles, trailers, agricultural, construction, and off-road machinery – anywhere reliability and durability in extreme conditions are essential.
Approvals

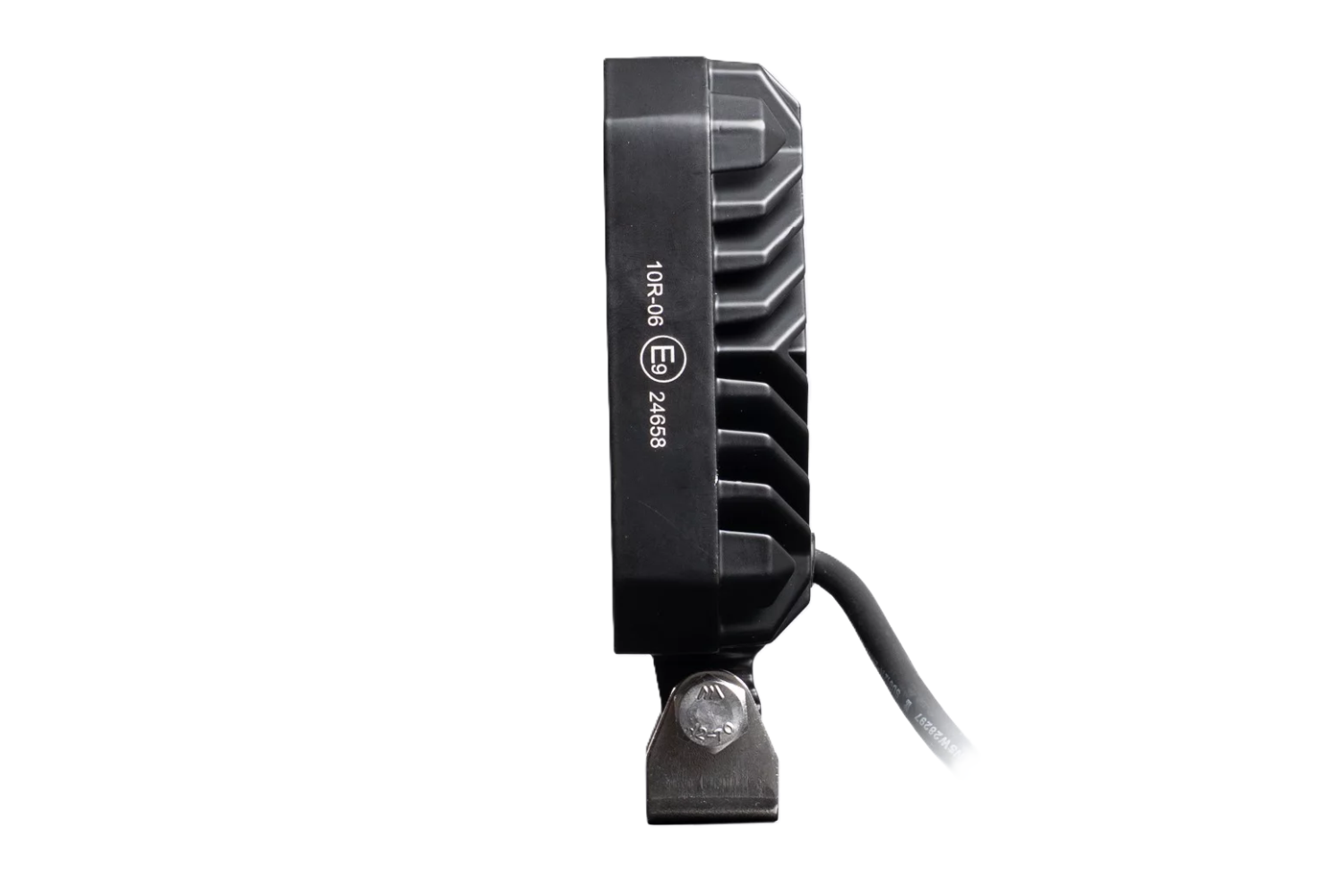

E9-approved work lights meet European safety and quality standards, confirming their compliance with vehicle lighting regulations. The E9 certification, awarded by Spain as the homologation country, demonstrates the passing of rigorous technical tests, including light output, durability, and operational safety . This certification allows these lights to be used in commercial vehicles, trailers, and machinery throughout the European Union, guaranteeing reliability in a variety of operating conditions.
Additionally, the lamp is CE , R10 , and RoHS certified , confirming its compliance with European Union requirements for safety, environmental protection, and electromagnetic compatibility. The CE certification demonstrates compliance with EU directives regarding health, safety, and the environment. R10 confirms that the device does not cause electronic interference and can be safely used in vehicles with electrical systems. RoHS guarantees that the lamp does not contain hazardous substances in concentrations exceeding permissible standards.
Work lights are a key component of specialized vehicles such as trailers, agricultural, construction, and service machinery, providing intense illumination of the workspace. Their primary purpose is to improve comfort and safety when working at night or in conditions of limited visibility —for example, during loading, field repairs, field work, or construction. High-quality work lights are characterized by high light output and resistance to shock, moisture, and dust, making them suitable for even extreme working conditions . Their installation and proper placement significantly improve the efficiency and precision of tasks.
