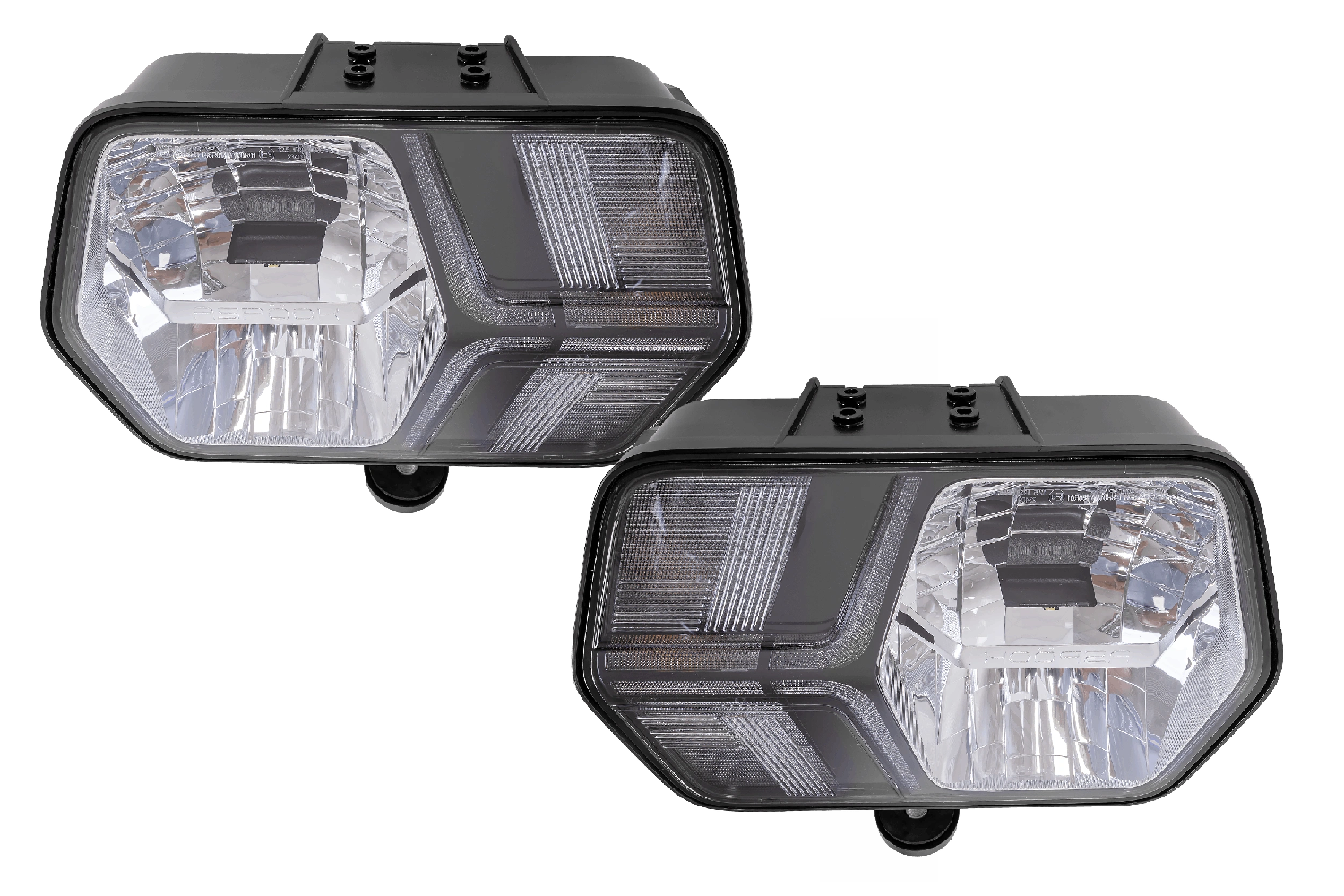

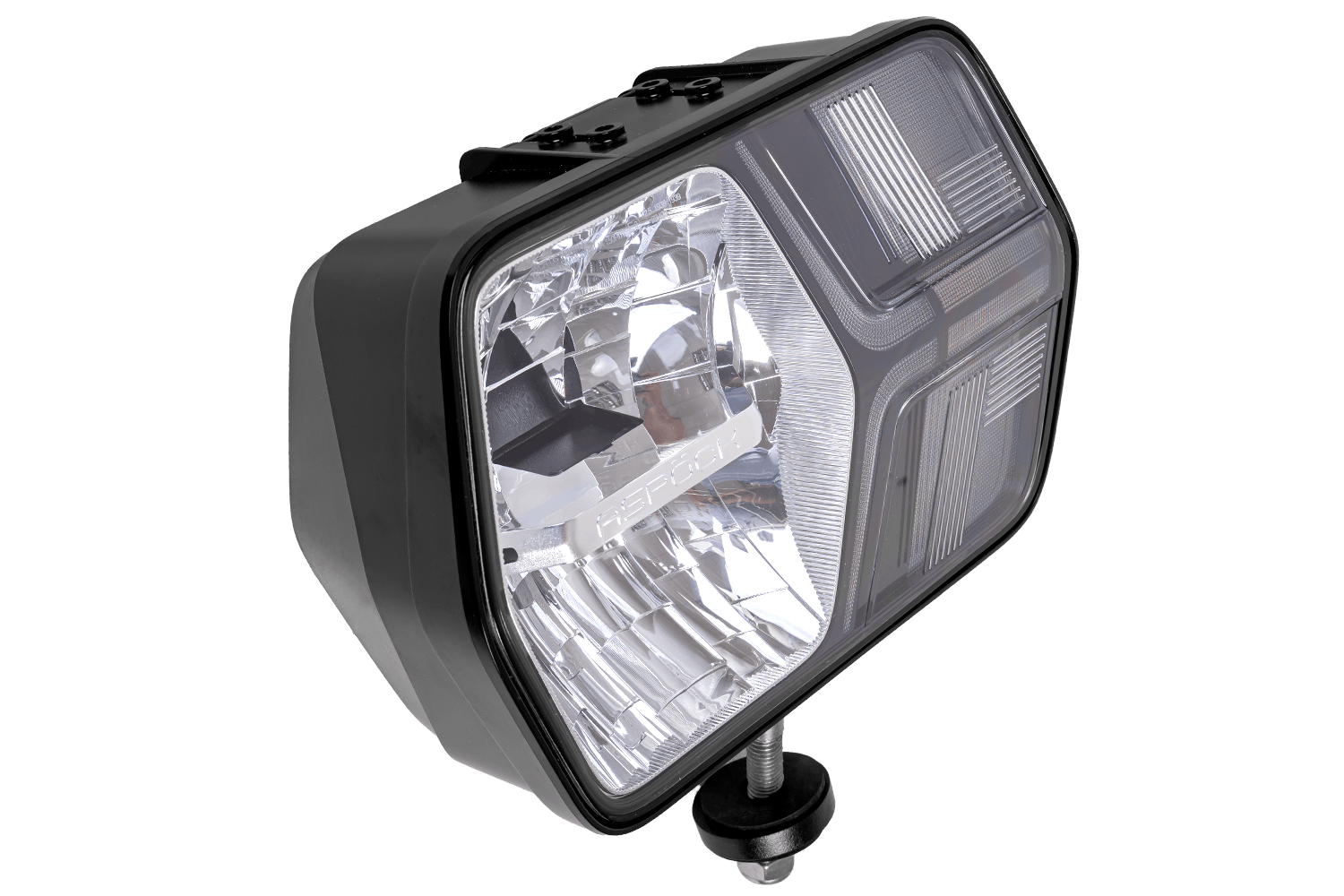

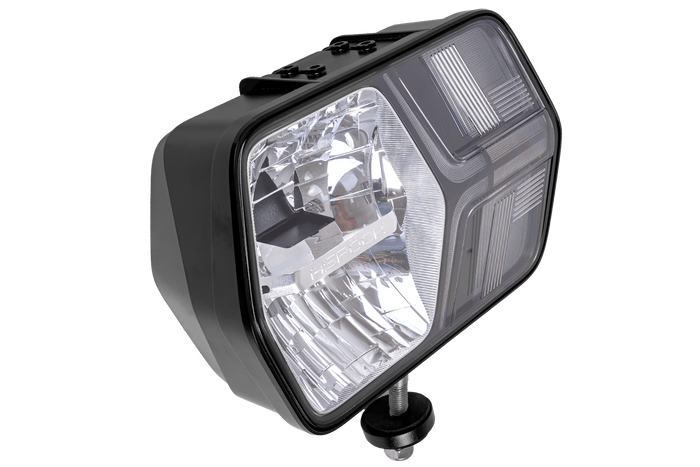

A set of two LuxLED II 25-0421-057+25-0420-057 front lamps from ASPÖCK , designed for horizontal mounting on the left and right sides of the vehicle . They can be used on telehandlers, forklifts, excavators, and other work machines and commercial vehicles requiring durable and multi-functional front lighting.

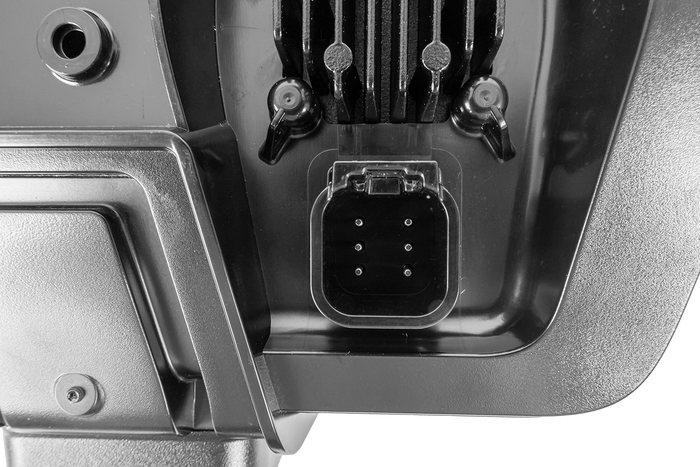

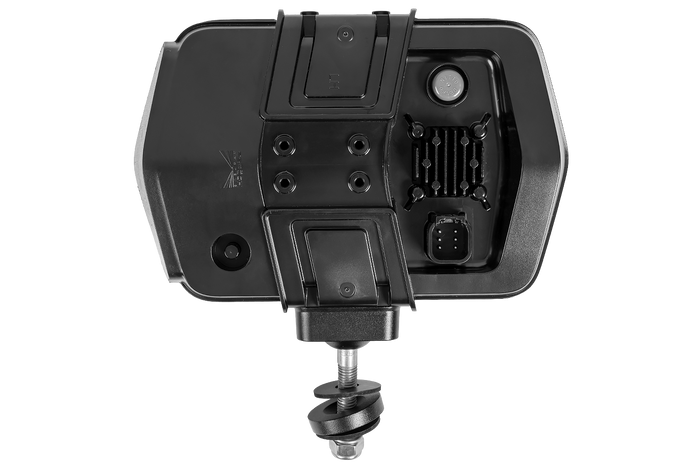

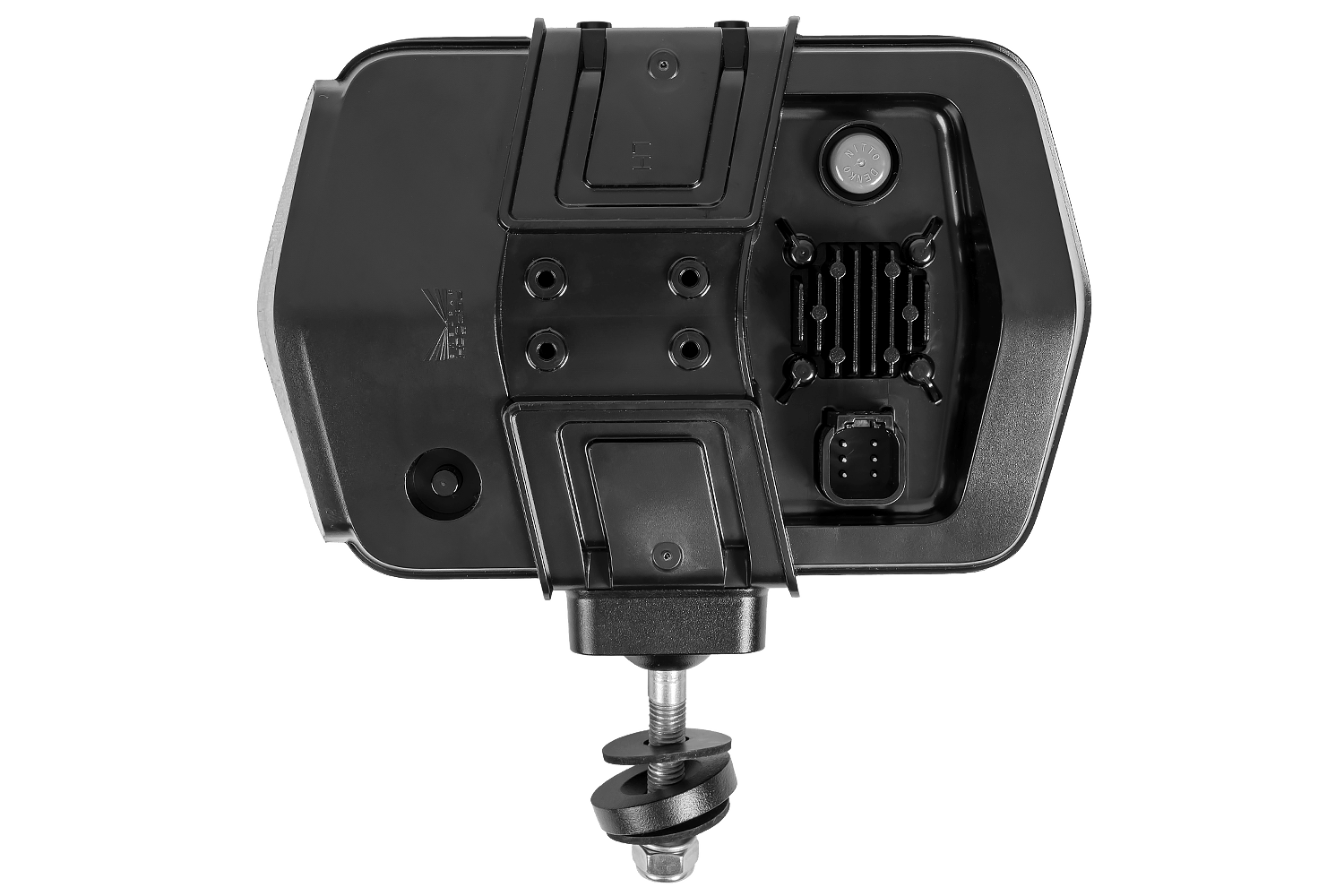

The headlights are suitable for 12V and 24V installations. A 6-pin DEUTSCH DT06-6S connector is used for connection, which supports all the lamp's lighting functions and is a solution often used in machine installations operating in demanding conditions.

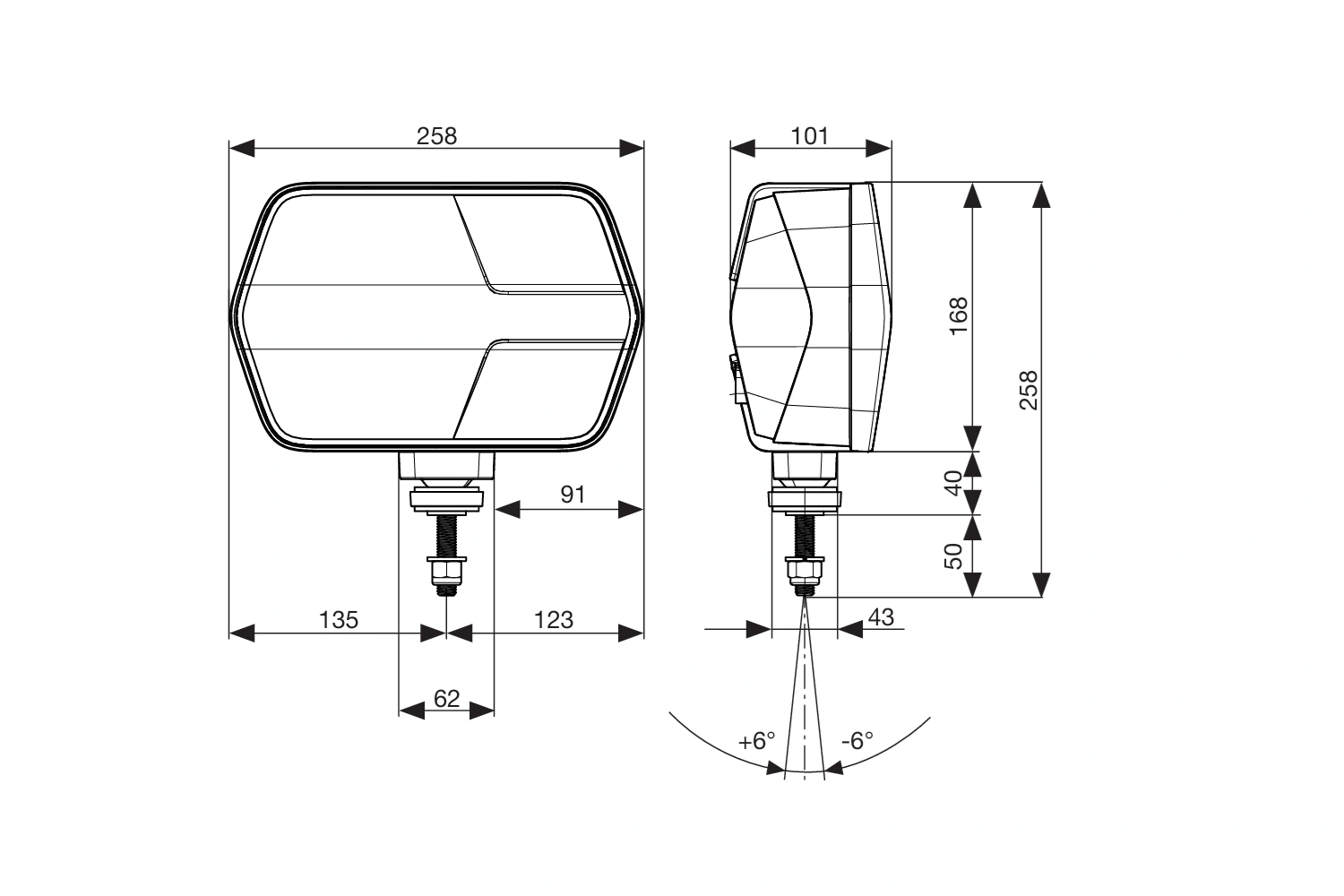

The lamp housing measures 258 mm wide, 168 mm high, and approximately 101 mm deep. Using LED technology , the lamps provide high performance, durability, and energy efficiency, helping to maintain good visibility and safety in various work and road conditions.

Lamp functions

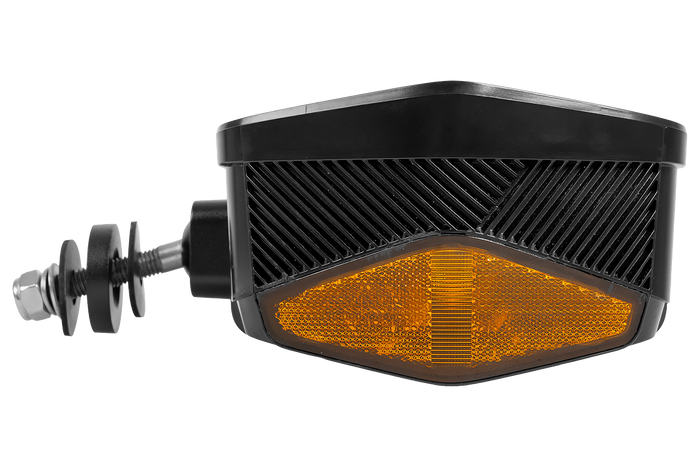

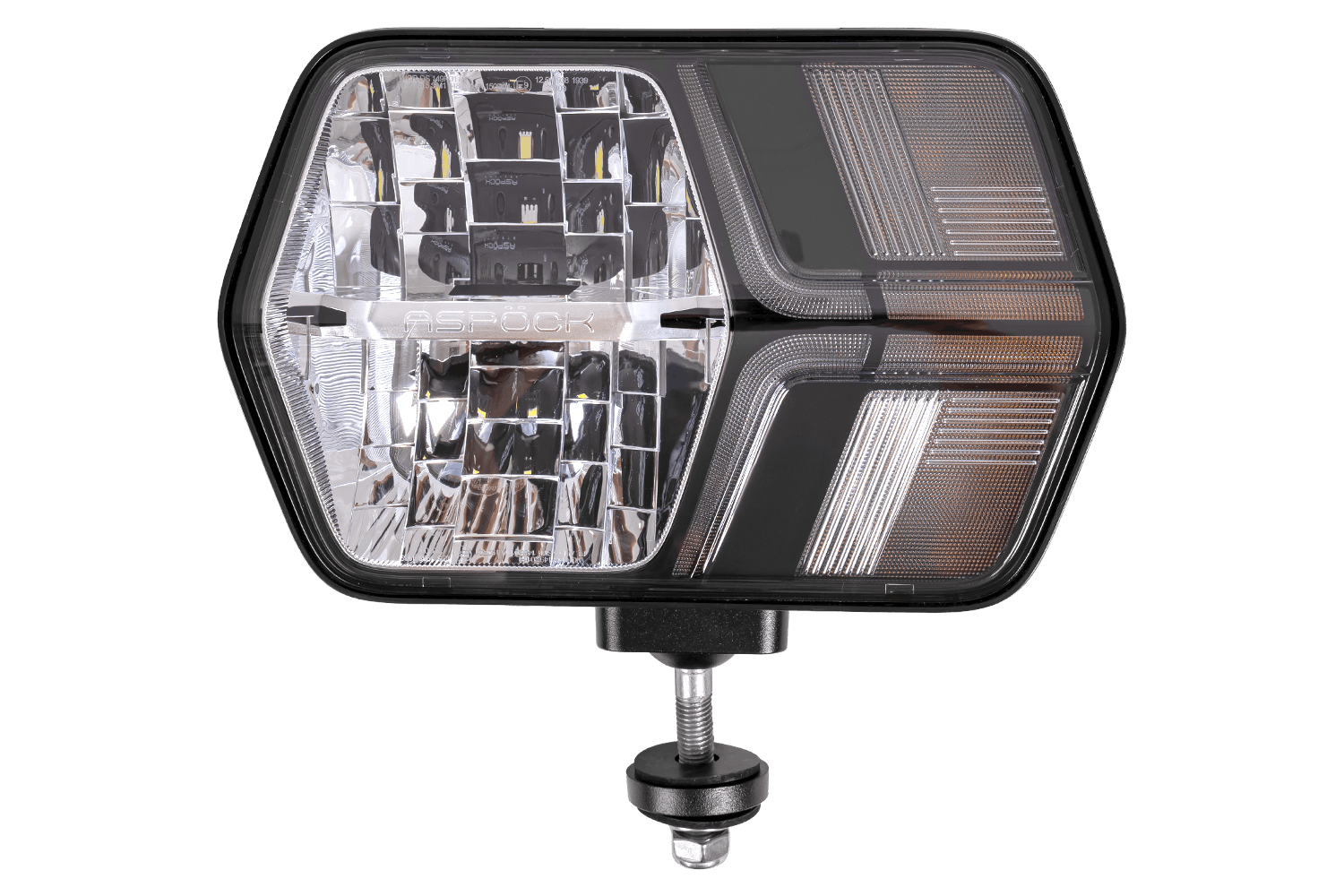

The lamps have seven functions: a low beam , which provides adequate illumination of the road ahead without excessive glare for other road users, and a high beam , designed to intensely illuminate the area further ahead. The DRL daytime running light increases the vehicle's visibility during the day, while the front position light signals its presence and position. The front turn signal indicates an intention to turn or change direction, while the side turn signal improves the visibility of this signal from the side of the vehicle. The side marker light with a reflector further defines the vehicle's outline and increases its visibility from the side, even after dark and in limited visibility conditions.

Tightness class

The lamps have an IP6K9K tightness rating , which provides a very high level of protection against dust, water, and intense high-pressure water jets. This protection is particularly important for vehicles and machinery operating in environments exposed to mud, dust, rain, and frequent pressure washing.

Approvals

The lamps are E9 approved for their lighting functions and ECE R10 approved for electromagnetic compatibility. They meet the requirements of UNECE R148 regulations for light signaling devices, UNECE R149 for low and high beam headlamps, and UNECE R150 for reflectors. Additionally, they meet CISPR 25 Class 3 and ISO 13766 requirements, confirming an adequate level of electromagnetic compatibility and reducing the risk of interference with vehicle electronics.

The lamps also meet ADR Zone 2 requirements, allowing them to be used in vehicles transporting hazardous materials. This means they provide the highest levels of safety, reliability, and resistance to operating conditions in the transport of goods requiring special protection.

Headlights effectively illuminate the workspace around the vehicle , which is particularly important when working at night or in conditions of limited visibility. They are primarily used in agricultural, construction, and forestry machinery, as well as in commercial vehicles , where they provide the operator with improved visibility and increased safety. Thanks to their high light output, durability, and weather resistance, these lights are indispensable for nighttime fieldwork, maneuvering in loading yards, or operating equipment in difficult conditions. Choosing modern LED lights guarantees lower energy consumption, long service life, and comfortable work in all conditions.
