UNITRAILER D-110.000.049 extendable crank support for 1300kg flatbed trailer 410-645mm
UNITRAILER D-110.000.049 extendable crank support for 1300kg flatbed trailer 410-645mm

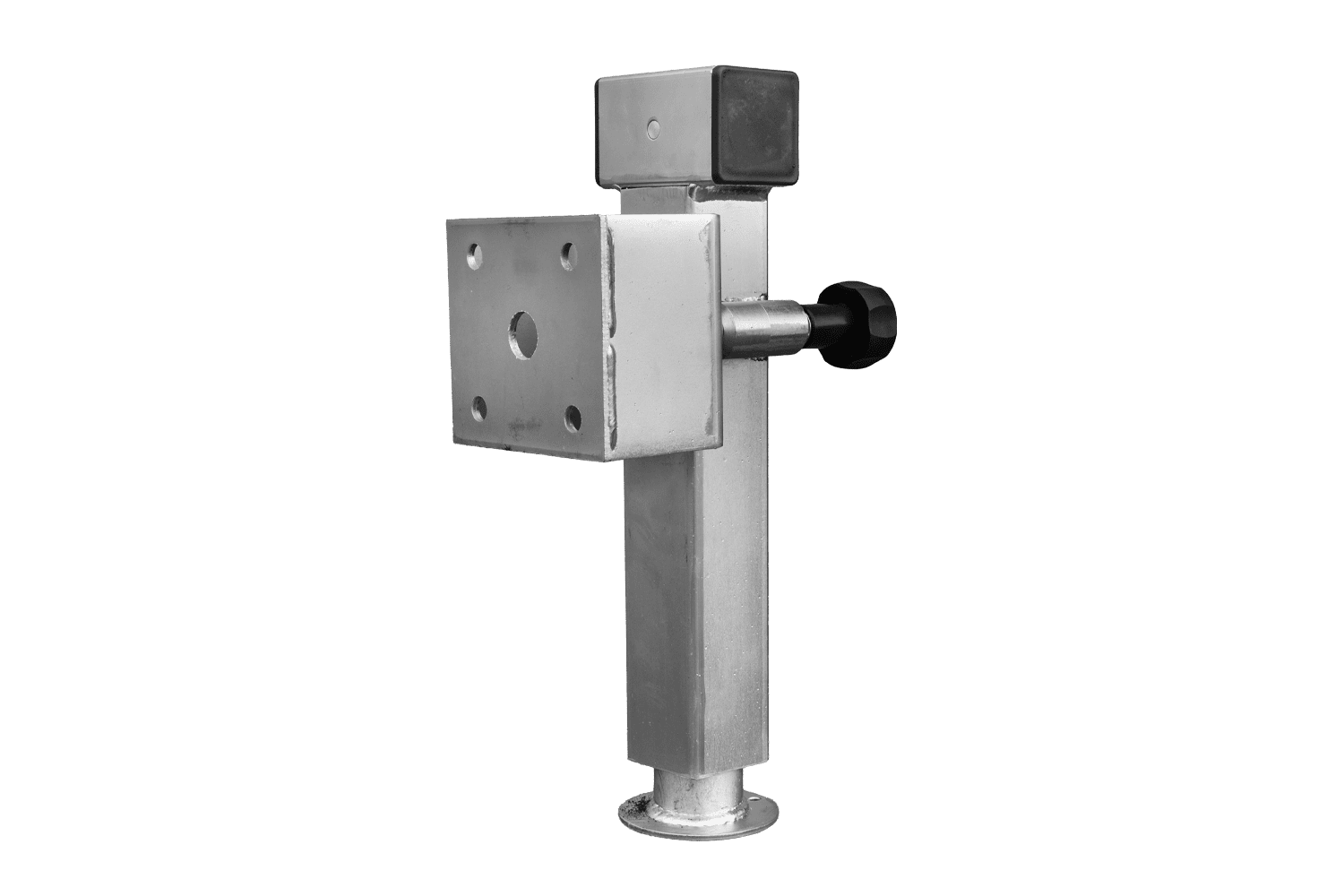

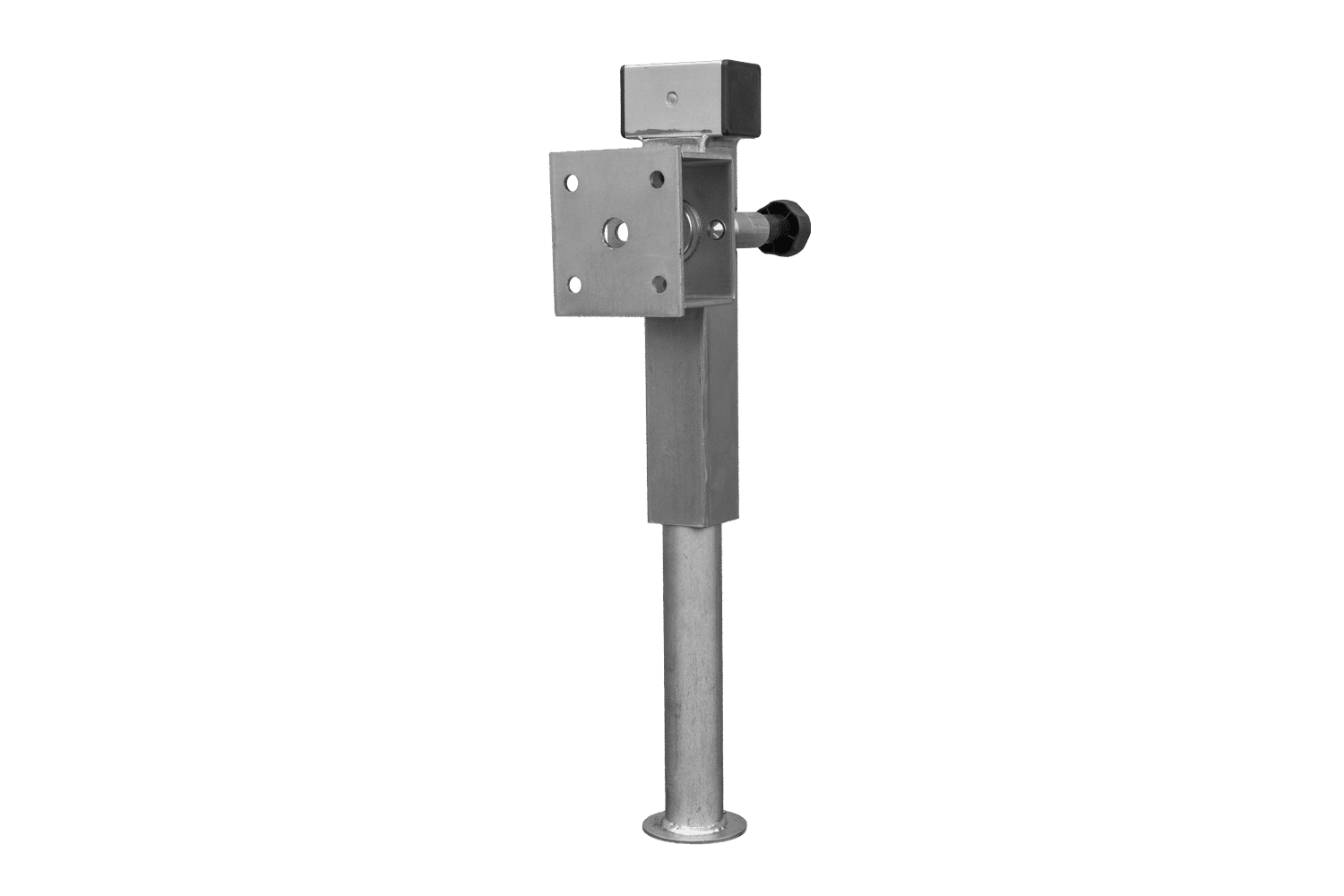

The UNITRAILER D-110.000.049 extendable support leg features a 60 mm diameter tube, ensuring a solid and stable construction. This model features a 120 x 120 mm mounting plate with 13 mm diameter mounting holes, allowing for secure bolting of the support leg to the trailer structure. Crank extendable supports have a higher load capacity , making them suitable for heavier trailers requiring stable and durable support.
Permissible load
The support's maximum load capacity is 1,300 kg , ensuring stable and safe support for the trailer during parking, use, or loading. The high load capacity guarantees reliable support for the structure, reduces the risk of tilt , and increases the safety and comfort of trailer use.
Extension length
The support's extension length is 235 mm , allowing for convenient adjustment of the support height to suit various ground conditions and trailer designs. When folded, the support height is 410 mm , and when fully extended, it reaches 645 mm . This adjustment range allows for stable trailer positioning during parking, loading, unloading, or everyday use.
Crank
The extendable support is operated by a crank , which allows for convenient raising and lowering of the support. Height adjustment requires a 19 mm diameter crank, which is not included . This solution allows for simple and quick operation and ensures stable support for the trailer when parked.
Anti-corrosion protection
Support It is made of galvanized steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The zinc coating protects the steel elements from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage .
Extendable crank supports are a practical trailer accessory used to stabilize the trailer during parking, loading, and use . Height adjustment is achieved using a crank, allowing for easy and precise adjustment of the support to the ground. They provide reliable structural support, reduce tilt, and increase safety around the trailer. They are most often mounted at the rear of the frame and help maintain stability, especially when the trailer is not connected to a vehicle. They are not designed to lift a loaded trailer , but rather to provide stable support. This practical solution is used on transport trailers, boat trailers, and caravans, improving comfort and safety.
