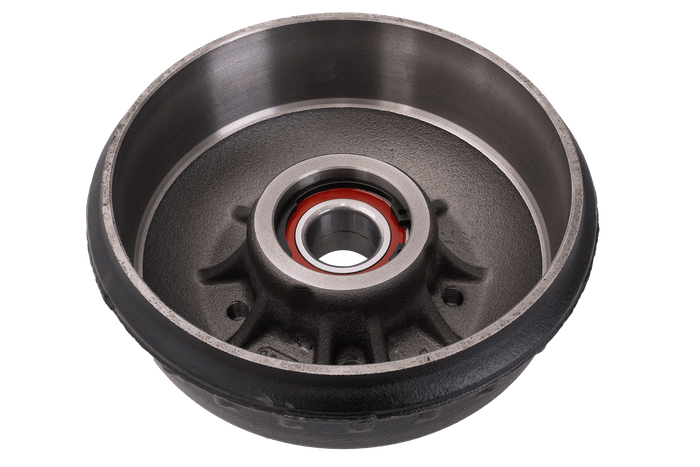

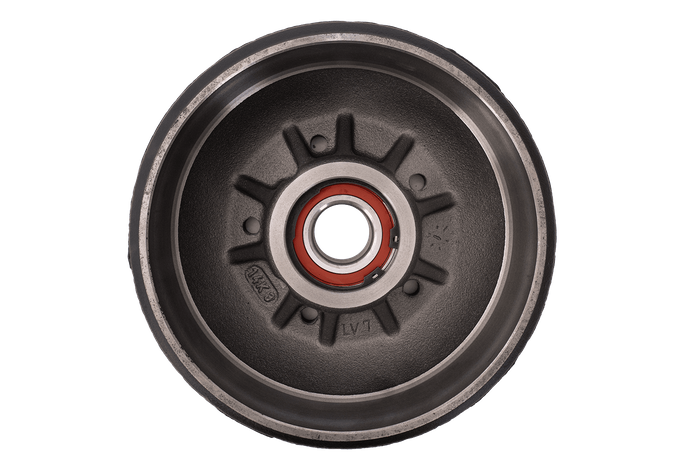

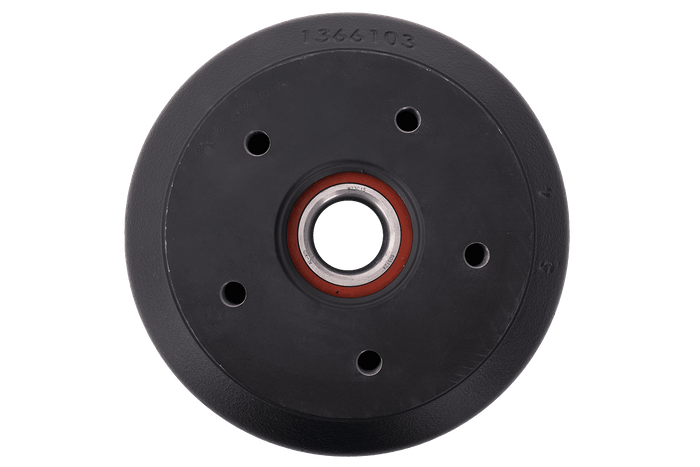

Brake drum 2051 EURO AL-KO with bearing for trailer axle 1300kg 200x50 112X5

Brake drum 2051 EURO AL-KO with bearing for trailer axle 1300kg 200x50 112X5

The brake drum is used to effectively slow and stop the trailer. It is a key component of the braking system , ensuring safety during transport.

This AL-KO brake drum features a 112 x 5 bolt pattern, ensuring compatibility with a wide range of trailers. The drum's internal diameter is 200 mm , and the braking surface width is adapted to 50 mm wide shoes , ensuring effective braking. The bearing's internal diameter is 34 mm , ensuring stable and precise seating of the drum in the braking system. This product is ideal for applications requiring reliability and durability.

Parameters:

• Bolt pattern: 5 x 112 (5 holes in a 112mm diameter circle)
• Drum inner diameter: 200 mm
• Bearing inner diameter: 34 mm
• Jaw width 50 mm
