Fixed support with clamp WINTERHOFF RSR48-700+KLE48 150kg 48mm 700mm

Fixed support with clamp WINTERHOFF RSR48-700+KLE48 150kg 48mm 700mm

The complete WINTERHOFF RSR48-700+KLE48 set includes a fixed support, a dedicated clamp and the necessary mounting elements , ensuring stable and safe support for the trailer during parking and loading work.

The set includes:

• 1x fixed support RSR48-700
• 1x clamp (clamp) KLE48 for the support
• 2x M10x25 screw
• 2x self-locking nut M10

The RSR48-700 fixed support is equipped with a 48 mm diameter tube, ensuring a solid, stable construction and comfortable operation. It is equipped with a convenient handle that makes it easy to raise and lower the support during use.

The KLE48 pipe clamp (clamp) with a 48 mm diameter ensures stable and secure attachment to the trailer drawbar. The clamp is 131 mm long and 66 mm wide , ensuring adequate clamping surface and solid pipe retention. It is equipped with two 10.5 mm diameter mounting holes spaced 105 mm apart, allowing for easy and precise installation to the trailer structure.

Long version

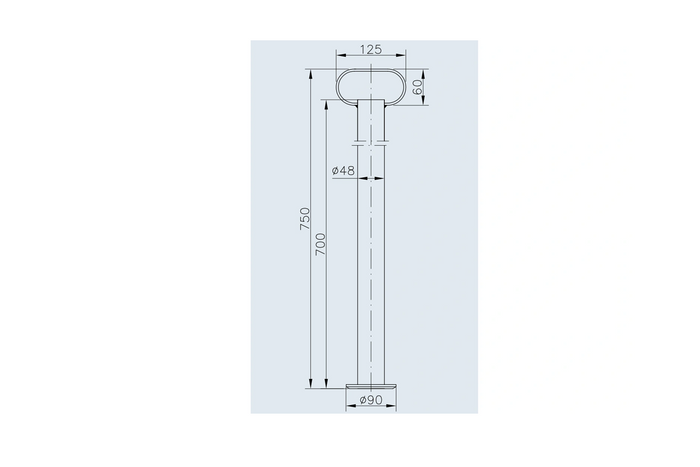

The XL (long) support leg is 700 mm high , allowing for better adaptation to various trailer frame heights and ground conditions. The total height, including the handle, is 750 mm . The extended design facilitates stable trailer support, even on uneven terrain, increasing comfort and safety.

Permissible load

The support's maximum load capacity is 150 kg , providing stable and safe support for the trailer during loading, unloading , and extended periods of standstill. A properly selected load capacity ensures reliable support for the drawbar, reduces the risk of tilt, and improves comfort when working around the trailer. Maintaining the maximum load limits is crucial for maintaining the durability of the mechanism and ensuring long, trouble-free operation of the product.

Anti-corrosion protection

A fixed support leg with a clamp (clamp) is a practical solution designed to stabilize a trailer while parked, loaded, and unloaded . The leg provides reliable support, reduces tilt, and increases safety around the trailer, while the clamp allows for stable and permanent attachment to the frame or drawbar. Fixed supports are most often mounted on the rear or side of the trailer and help maintain stability , especially when the trailer is not connected to a vehicle. They are not designed to lift a loaded trailer , but to provide stable support. This practical solution is used on transport trailers, boat trailers, and caravans , improving comfort and safety.

A fixed support leg is a practical piece of trailer equipment used to stabilize the trailer during parking, loading, and unloading . It provides reliable support for the structure, reduces tilt, and increases safety around the trailer. Fixed supports are most often mounted on the rear or side of the frame and help maintain stability, especially when the trailer is not connected to a vehicle. They are not intended to lift the trailer with a load, but rather to provide stable support. This practical solution is used on transport trailers, boat trailers, and caravans , improving comfort and safety.
