ASPÖCK MULTIPOINT V rear lights + MANTES 7m 7-PIN harness

ASPÖCK MULTIPOINT V rear lights + MANTES 7m 7-PIN harness

The lighting kit is an electrical solution that provides full and compliant lighting for trailers, trailers and other transport vehicles , increasing their visibility and safety on the road. It consists of rear lights and an electrical harness. Thanks to high-quality components , it guarantees reliable operation, good visibility and compliance with applicable safety standards. It is the ideal choice for those looking for a durable and effective vehicle lighting system.

The set includes:

• 1x left rear light ASPÖCK MULTIPOINT V (24-8500-007)
• 1x rear light right ASPÖCK MULTIPOINT V (24-8700-007)
• 1x MANTES electrical harness, 7 m long, terminated with a 7 PIN plug

ASPÖCK MULTIPOINT V rear lights 6 functions left + right

A set of two MULTIPOINT V rear lights by ASPÖCK , designed for installation on the left and right side of the vehicle , are characterized by dimensions: width 238 mm, height 140 mm, depth 55 mm . Both lights are equipped with a 5-pin bayonet connector , which allows easy and quick installation in trailers, buses or tow trucks. The rear lights have E9 homologation , which meets the requirements of European safety and quality standards .

The lamps are factory-equipped with 12V bulbs , but can be easily adapted to 24V by replacing the bulbs, which increases their versatility and versatility of use.

Rear light functions: position light , which ensures the vehicle's visibility when driving at night; brake light , signaling braking; turn signal , enabling you to indicate your intention to turn ; fog light , which increases safety in difficult weather conditions, such as fog or heavy rainfall ; license plate lighting , which ensures the visibility of the vehicle's registration number at night ; and a reflective triangle that increases the visibility of the vehicle .

Tightness class

IP54 tightness class is a solid solution that guarantees protection against dust in quantities that could disrupt the operation of the lamps, and against splashes of water from any direction . Thanks to this, it works great in various weather conditions, ensuring reliable operation in commercial vehicles such as trailers, semi-trailers or agricultural machines. It offers durability and resistance to everyday use, increasing road safety and minimizing the risk of damage in difficult working conditions.

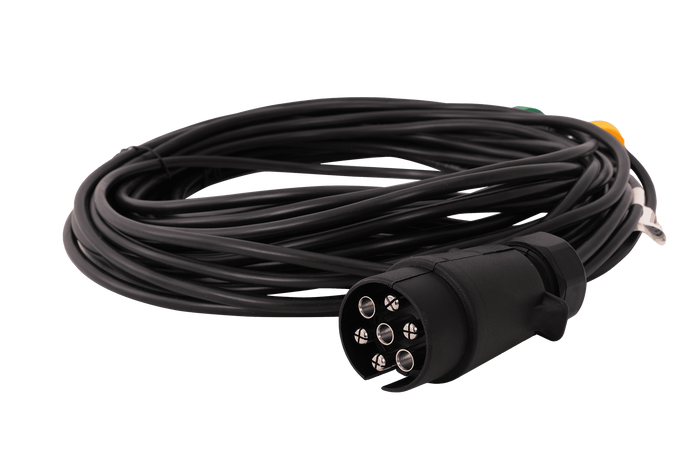

MANTES electrical installation, trailer harness, 7m, 7PIN plug, 2x 5PIN bayonets

The MANTES electrical system is a practical and reliable solution for car trailers. The 7-meter main cable with a cross-section of 0.5 mm² is equipped with a standard 7 PIN plug , ensuring universal compatibility with most vehicles.

The harness is equipped with two 5 PIN bayonet connectors for connecting the rear lights. The bayonet system ensures quick and secure installation, eliminating the risk of accidental disconnection while driving. The design of the connectors guarantees a waterproof connection and protects the contacts from corrosion, which translates into long-term, trouble-free operation of the entire trailer lighting system.

Supported lighting features

position light

fog light

signpost

license plate light

brake light

The harness supports lighting functions: left/right position light , which ensures the vehicle's visibility when driving at night; left/right turn signal , which allows to indicate the intention to turn; brake light , which signals braking; fog light , which increases safety in difficult weather conditions, such as fog or heavy precipitation; and license plate light integrated with the rear light , which ensures the visibility of the vehicle's registration number at night .

Meaning of wire colors in 7 PIN plug

• (1) yellow - left turn signal
• (2) blue - left fog light
• (3) white - mass
• (4) green - right turn signal
• (5) brown right position light/ license plate light
• (6) red - brake light
• (7) black - left position light/ license plate light
