The KNOTT ATK60 jockey wheel features a 60 mm diameter tube and a total height of 785 mm, including the wheel , ensuring a solid, stable construction and comfortable operation. Designed for use in trailers requiring greater load capacity and durability.
The product has a factory-welded mounting bracket with dimensions of 130 × 100 mm , with mounting holes with a diameter of 11 mm and a spacing of 105 × 50 mm . This solution eliminates the need for an additional clamp, simplifies installation, and increases the durability of the entire connection.
A jockey wheel is a practical trailer accessory that stabilizes the trailer when parked and facilitates maneuvering and rolling the trailer around a yard, driveway, or campsite. It allows for convenient coupling and uncoupling of the trailer from the towbar, as well as precise positioning. Jockey wheels are designed to stabilize the trailer – they are not intended for lifting a loaded trailer . They are an ideal solution for cargo trailers, boat trailers, and caravans , increasing comfort and safety.
Permissible load
The permissible load when parked is 350 kg , providing stable and safe support for the trailer during loading, unloading, and extended periods of standstill . A properly selected load capacity ensures reliable support for the drawbar, reduces the risk of tilt, and improves comfort when working around the trailer. Maintaining the maximum load limits is crucial for maintaining the durability of the mechanism, protecting structural components from overload, and ensuring long and trouble-free product operation. .
Extension length
The XL (long) support wheel has an increased adjustment range, which allows for better adjustment to different drawbar heights and ground conditions. The jockey wheel extension length is 235 mm , providing an adequate range of drawbar height adjustment. The height of the jockey wheel with the wheel is 785 mm, and the maximum height with extension reaches 1020 mm . This range allows for convenient adjustment of the trailer to various ground conditions and facilitates connecting and disconnecting it from the tow bar. The appropriate extension range increases comfort and stability when parked. .
Type of wheel
The 225 x 65 mm wheel is equipped with a solid rubber tire , eliminating the risk of punctures and ensuring high durability during use. The steel rim reinforces the structure, increases resistance to loads and mechanical damage, ensuring stable and reliable operation in various operating conditions.
Fully automatic wheel

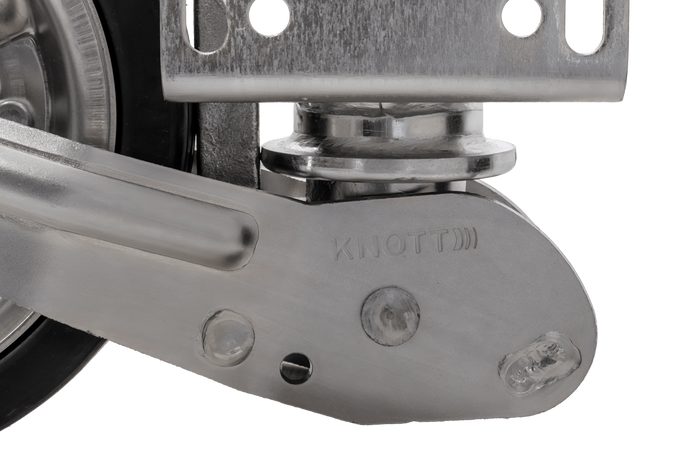

The jockey wheel is equipped with a fully automatic lifting mechanism that allows for quick and convenient tilting of the wheel into the transport position without the need for manual locking. Additionally, it has a fully automatic support foot that rests firmly on the ground, increasing the comfort and safety of using the trailer when parked.
Crank with thrust bearing
The crank is equipped with a thrust bearing , which significantly improves comfort. The bearing reduces friction during operation, resulting in smoother and lighter crank movement . This means that raising and lowering the jockey wheel requires less force and is more comfortable, even under heavy loads.
Anti-corrosion protection
The jockey wheel is made of electro-galvanized steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The zinc coating protects the steel components from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage.
