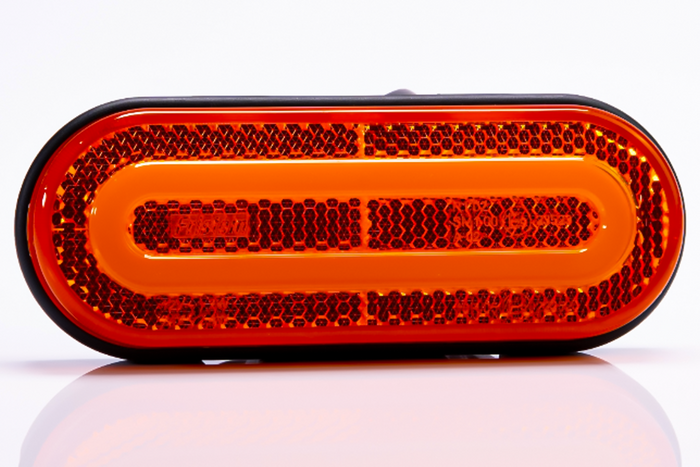

FRISTOM FT-072 LED Universal Marker Lamp

FRISTOM FT-072 LED Universal Marker Lamp

The FT-072 LED marker lamp by FRISTOM is designed for installation on both the left and right side of the vehicle and is characterized by the following dimensions: width 120.5 mm, height 46.5 mm, depth 18.6 mm . Designed to work in the voltage range of 12-36 V , it is used in trailers, agricultural machines, trucks or tow trucks, which emphasizes its versatility. Equipped with a 0.5 m flat cable , it allows for easy and quick installation. Thanks to the use of LED technology the lamp provides high performance, durability and energy efficiency, ensuring safety in various road conditions. The lamp is resistant to shocks and mechanical damage.

The lamp is characterized by low current consumption and increased resistance to external factors , which was achieved through increased hermetic sealing of the electronic system. Additionally, it is equipped with an innovative "CLICK-ON" mounting system , which ensures easy installation and aesthetic appearance, eliminating visible elements connecting the lamps to the bodywork. Mounting is possible directly on a flat surface or by using angle bracket (angle bracket), included in the set.

Lamp functions

side marker light

reflection

The lamp has two functions: a side marker light (orange) , which highlights the contours of the vehicle and improves its visibility, especially at night and in poor lighting conditions; and a reflector , which further increases road safety .

Approvals

The marker lamp has an electromagnetic compatibility ( EMC ) certificate and E9 approval , which meets the requirements for safety and reliability in vehicles. The EMC certificate confirms that the lamp is resistant to external electromagnetic interference and does not generate any interference that could affect the operation of other electronic devices in the vehicle . This is an ideal solution for commercial vehicles, trailers and specialist machines.

Marker lights are an essential part of the equipment of commercial vehicles, such as trailers, semi-trailers, agricultural and construction machines. Their main function is to improve the visibility of the vehicle both on the road and in the workplace, which significantly increases the safety of the driver and other road users . Marker lights play a key role in conditions of limited visibility, such as fog, night or heavy rainfall, helping other drivers and operators better assess the width and position of the vehicle. In the case of machines working on construction sites or in agricultural areas, appropriate light markings help avoid dangerous situations and collisions. Choosing high-quality marker lights is not only a matter of compliance with regulations, but also an investment in the durability and reliability of the equipment in demanding operating conditions.
