Crossbar for AL-KO support wheel for V 440/460 drawbar

Crossbar / profile for support wheel for V-type drawbar up to 3500 kg

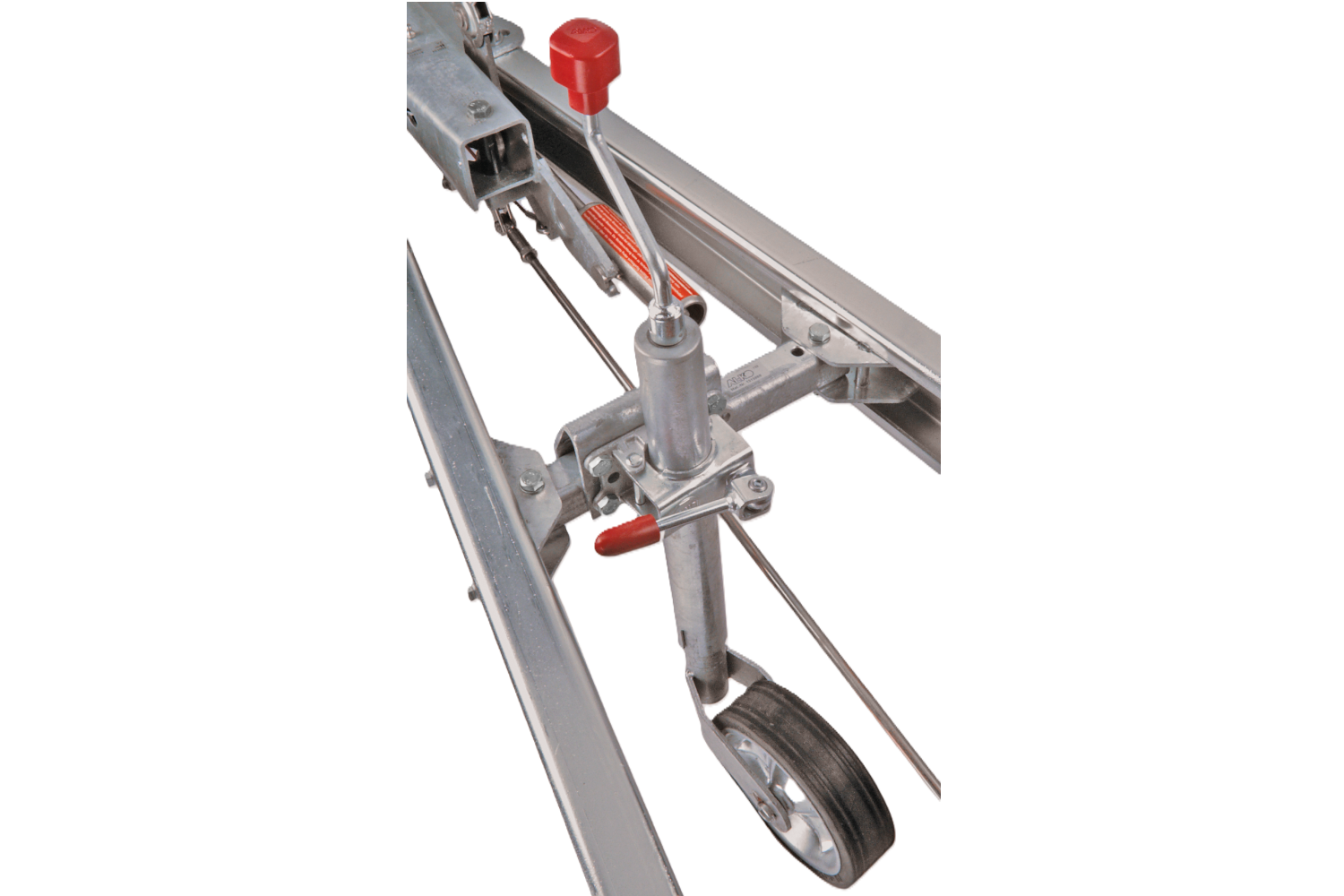

The AL-KO support wheel crossbar is used to mount a support wheel to a V-type drawbar with a load capacity of up to 3,500 kg. It is ideal for use in various types of trailers, especially where frequent manual maneuvering is required and ensuring maximum trailer stability.

The crossbar prevents the drawbar from twisting, which significantly increases safety both when standing and maneuvering. It makes manual maneuvering of the trailer easier, which is beneficial when parking or moving the trailer on the square. Thanks to movable mounting brackets, the crossbar can be easily adjusted to various drawbar configurations, making it a versatile solution for many types of trailers.

The support wheel can be mounted in front of or behind the cross profile in the direction of travel.

Specification:

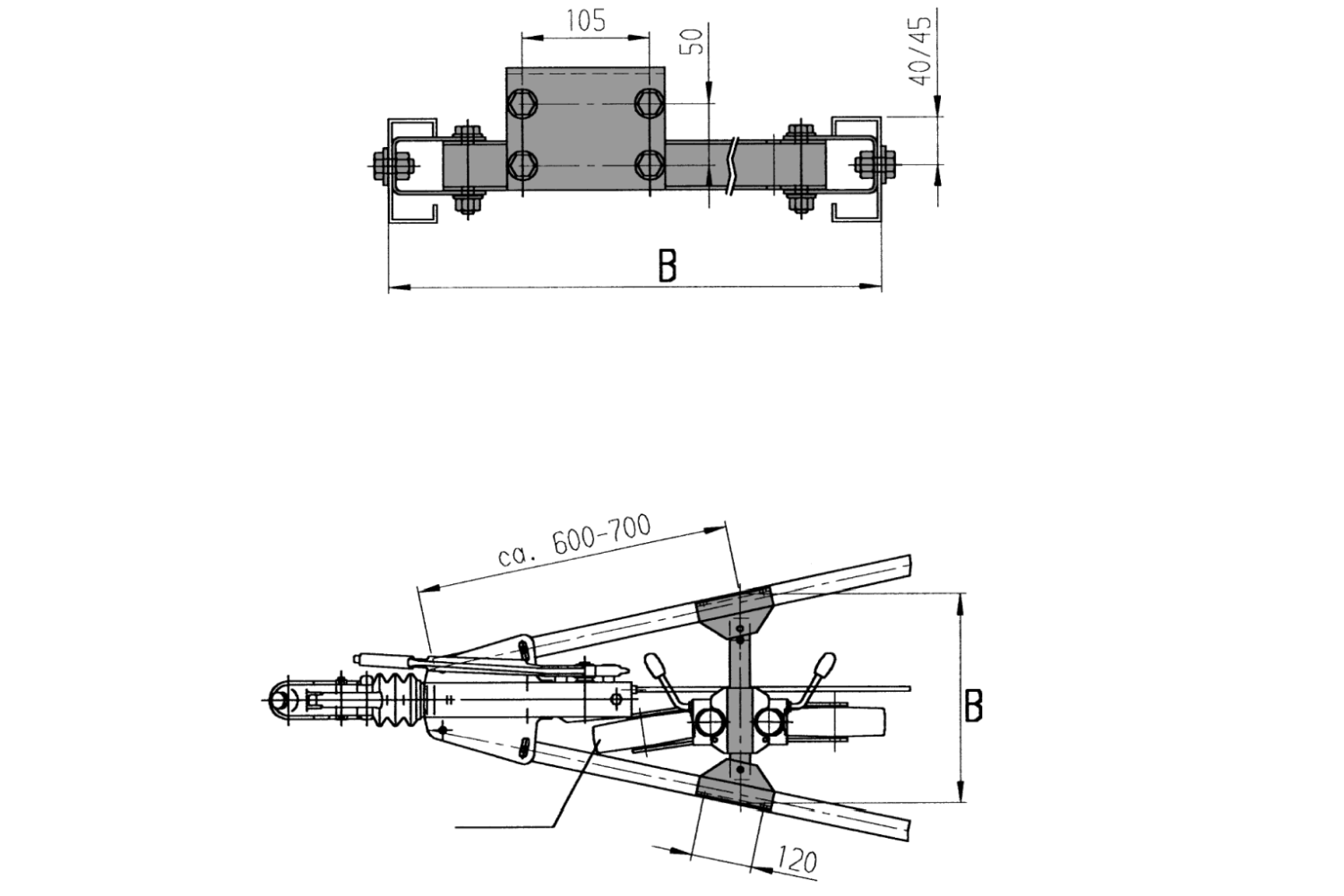

• Length (B): 440 - 460 mm
• Static load max.: 300 kg
• Surface treatment: hot-dip galvanized, electro-galvanized screws
