MANTES electrical installation trailer tow truck harness 5.5 m 13 PIN plug bayonets 2x 5 PIN

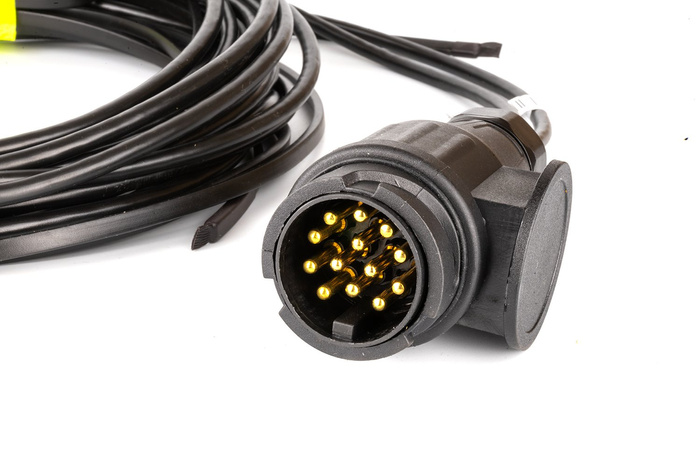

The MANTES electrical system is a practical and reliable solution for car trailers. The main cable is 5.5 meters long, with a cross-section of 0.5 mm², and is equipped with a standard 13 PIN plug , ensuring universal compatibility with most vehicles.
The harness is equipped with two 5 PIN bayonet connectors for connecting the rear lights. The bayonet system ensures quick and secure installation, eliminating the risk of accidental disconnection while driving. The design of the connectors guarantees a waterproof connection and protects the contacts from corrosion, which translates into long-term, trouble-free operation of the entire trailer lighting system.
The installation has an integrated branching of two 3.5-metre-long cables to the marker lamps, which effectively mark the vehicle's dimensions both during the day and at night, improving safety during manoeuvres and driving in difficult conditions.
Supported lighting features
position light
signpost
brake light
reversing light
fog light
marker light
license plate lightThe harness supports lighting functions: left/right position light , which ensures the vehicle's visibility when driving at night; left/right turn signal , which allows you to indicate your intention to turn; brake light , which signals braking; reversing light , which facilitates reverse manoeuvres, improving visibility behind the vehicle ; fog light , which increases safety in difficult weather conditions, such as fog or heavy precipitation; left/right marker light , which highlights the outer contours of the vehicle, improving its visibility on the road, especially at night and in low light conditions; and license plate light , which ensures the visibility of the vehicle's registration number at night .
Trailer wiring harnesses are an essential element ensuring the correct operation of lighting in car trailers, tow trucks, agricultural trailers and camping trailers. Their main task is to transmit electrical signals to position lights, brake lights, indicators and fog lights, which significantly improves visibility and safety on the road . Using high-quality wiring harnesses allows you to avoid problems with overvoltage and lighting failures, which is crucial for both the driver and other road users. Thanks to the appropriate length of cables and universal connectors, installation is quick and easy, and solid insulation ensures resistance to weather conditions, vibrations and mechanical damage .
Meaning of wire colors in 13 PIN plug
- (1) yellow - left turn signal
- (2) blue - fog light
- (3) white - mass
- (4) green - right turn signal
- (5) brown or black right position light
- (6) red - brake light
- (7) black - left position light
- (8) gray - reversing light
