Wheel TIRE KENDA 15x6.00-6 RIM STARCO 4.5Ax6H2 3x98
Wheel TIRE KENDA 15x6.00-6 RIM STARCO 4.5Ax6H2 3x98
This complete wheel is primarily designed for lawn mowers, gardening equipment, and agricultural machinery . It's widely used on a variety of utility and work equipment, including tillers, sweepers, snow blowers, municipal cleaning equipment, light agricultural machinery, sprayers, spreaders, and mini agricultural and orchard trailers . It excels in applications requiring stability, good traction, and resistance to intensive use. The combination of a KENDA tire and a STARCO steel rim ensures ready-to-install installation and reliable operation in a variety of terrain. The wheel's maximum load capacity is 335 kg at speeds up to 30 km/h.
KENDA 15×6.00-6 tire
The KENDA 15x6.00-6 tire features a 4PR design and is tubeless ( TL ), which increases comfort and reduces the risk of sudden flats. The Turf Rider tread provides good traction on grass, dirt, and paved surfaces while reducing the risk of ground damage. This is especially important for lawnmowers and garden equipment used in green spaces.

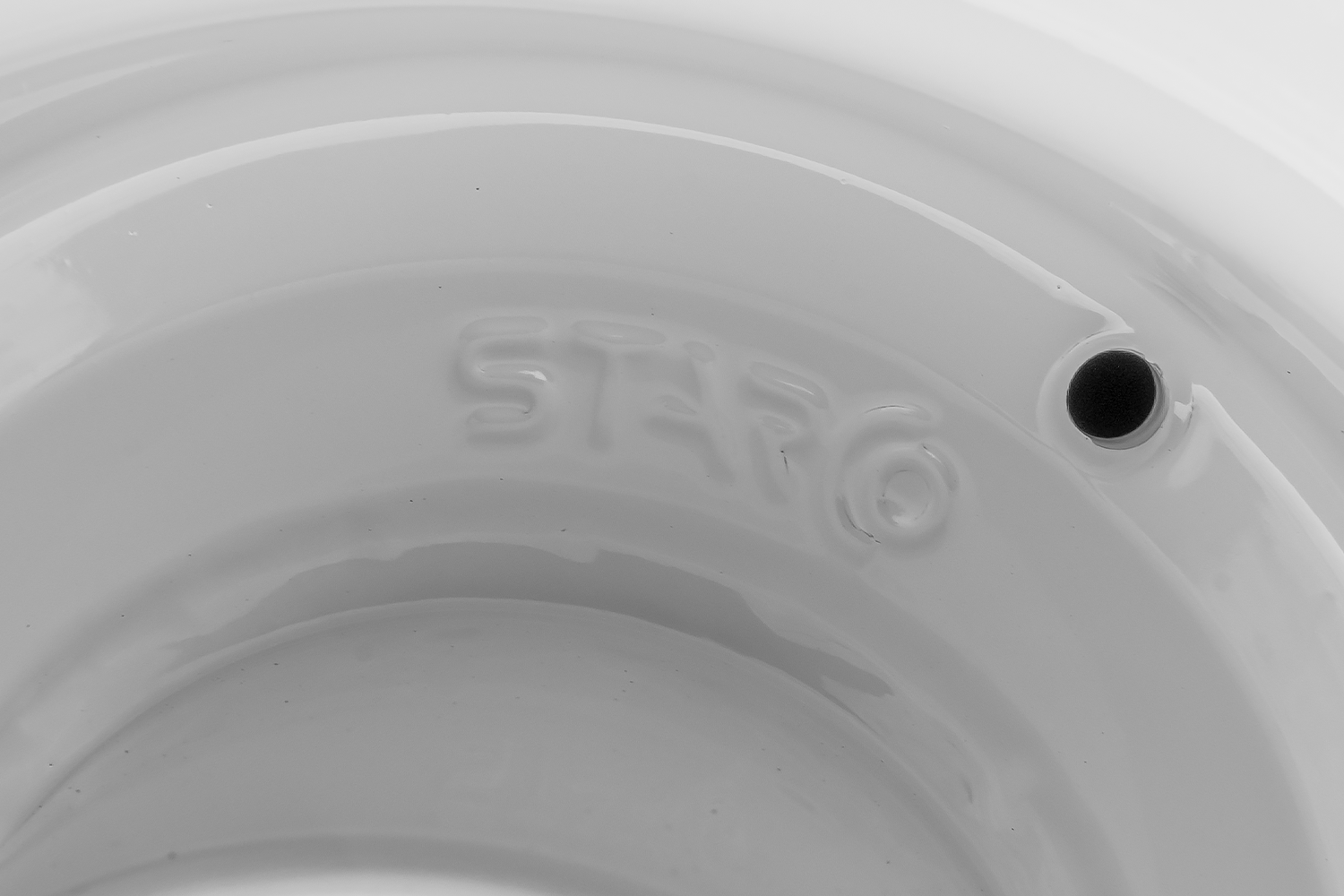

STARCO steel rim 4.50A×6" H2 3x98 with 6205-2RS bearings
The STARCO 4.5A×6 H2 steel rim is a robust solution for wheels used on lawnmowers, gardening and agricultural machinery, and transport carts. The 4.5-inch wide, 6-inch diameter rim ensures stable wheel operation and good tire seating. Thanks to its steel construction and protective coating, the rim is durable, resistant to loads, and offers good corrosion protection.
This model is equipped with two sealed 6205-2RS bearings , which ensure smooth operation and protection against dust and moisture. The hub length is 98 mm , including approximately 60 mm of bearing spacing, and the hub's outer diameter is 57 mm . A mounting hole spacing of 3x98 means the rim has three holes arranged in a 98 mm diameter circle. Bolt spacing is a key parameter when selecting a rim to ensure proper fitment to the vehicle's hub.
In this rim, the center bore/hub has a diameter of 57 mm , and the inner diameter for the axle is approximately 25 mm . These parameters are important for proper rim-to-axle fit and stable wheel operation. Proper rim seating affects safety, smooth rotation, and durability of the entire assembly.
The "A" rim flange profile refers to the standard rim flange shape used primarily on smaller wheels, such as those used on gardening and agricultural machinery, and trailers. The "A" flange is characterized by a simple and versatile design that ensures proper tire seating and stability during operation. It is commonly used on rims of small diameters and widths, where easy tire installation and reliability in everyday use are key. Thanks to its design, it works well with tires designed for moderate speeds and varied terrain.
The rim cross-section profile refers to the shape of the inner part of the rim, which includes both the flange and the surface on which the tire rests. This profile is crucial for proper tire seating, mounting, and overall fitment to the vehicle's hub. The H2 rim cross-section profile is a double-hump rim. This profile provides even greater tire protection against detachment. This is especially important for sporty, off-road vehicles, or those subjected to higher lateral loads.
