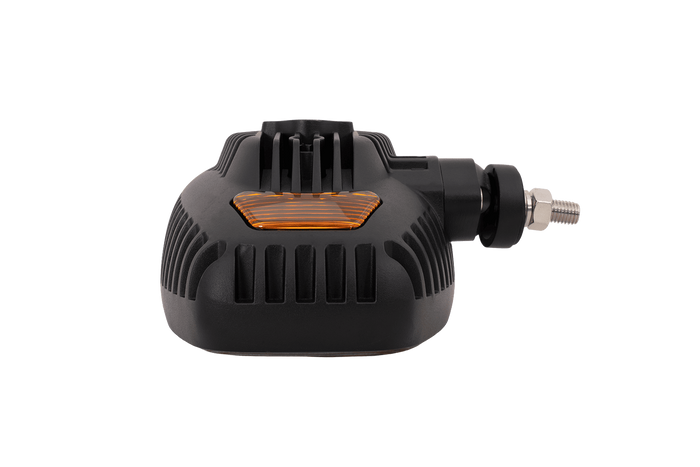

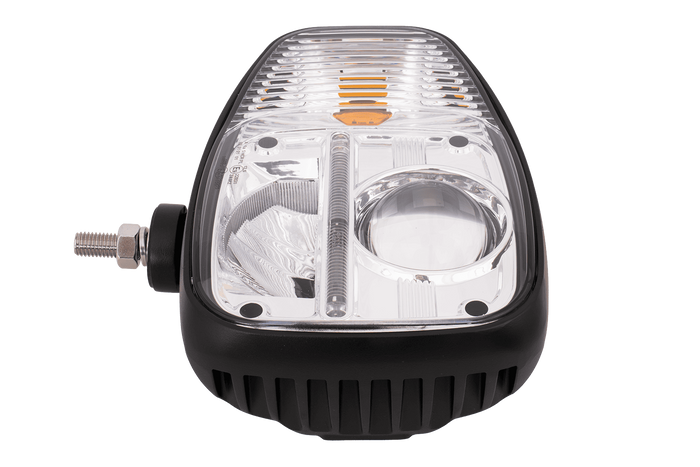

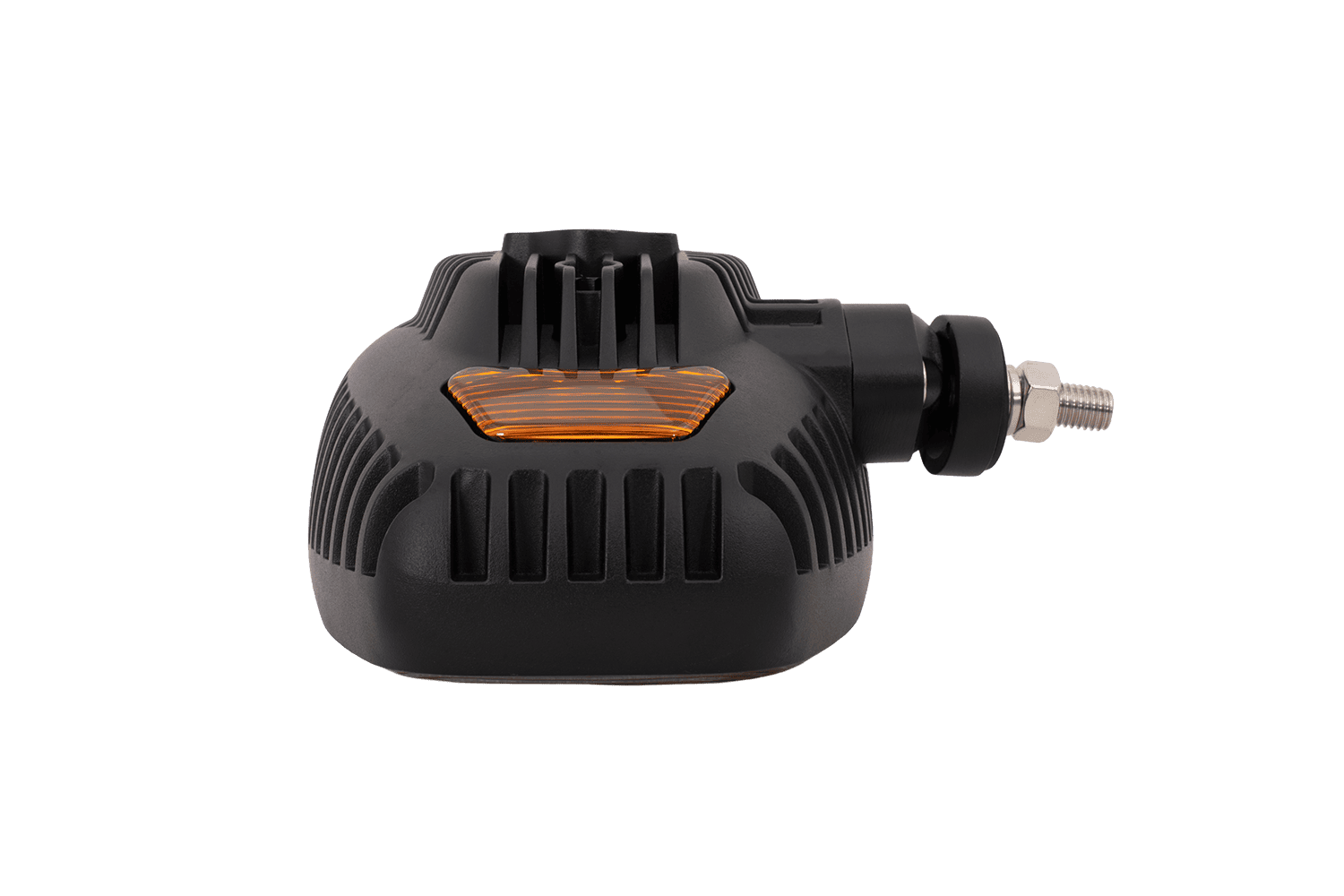

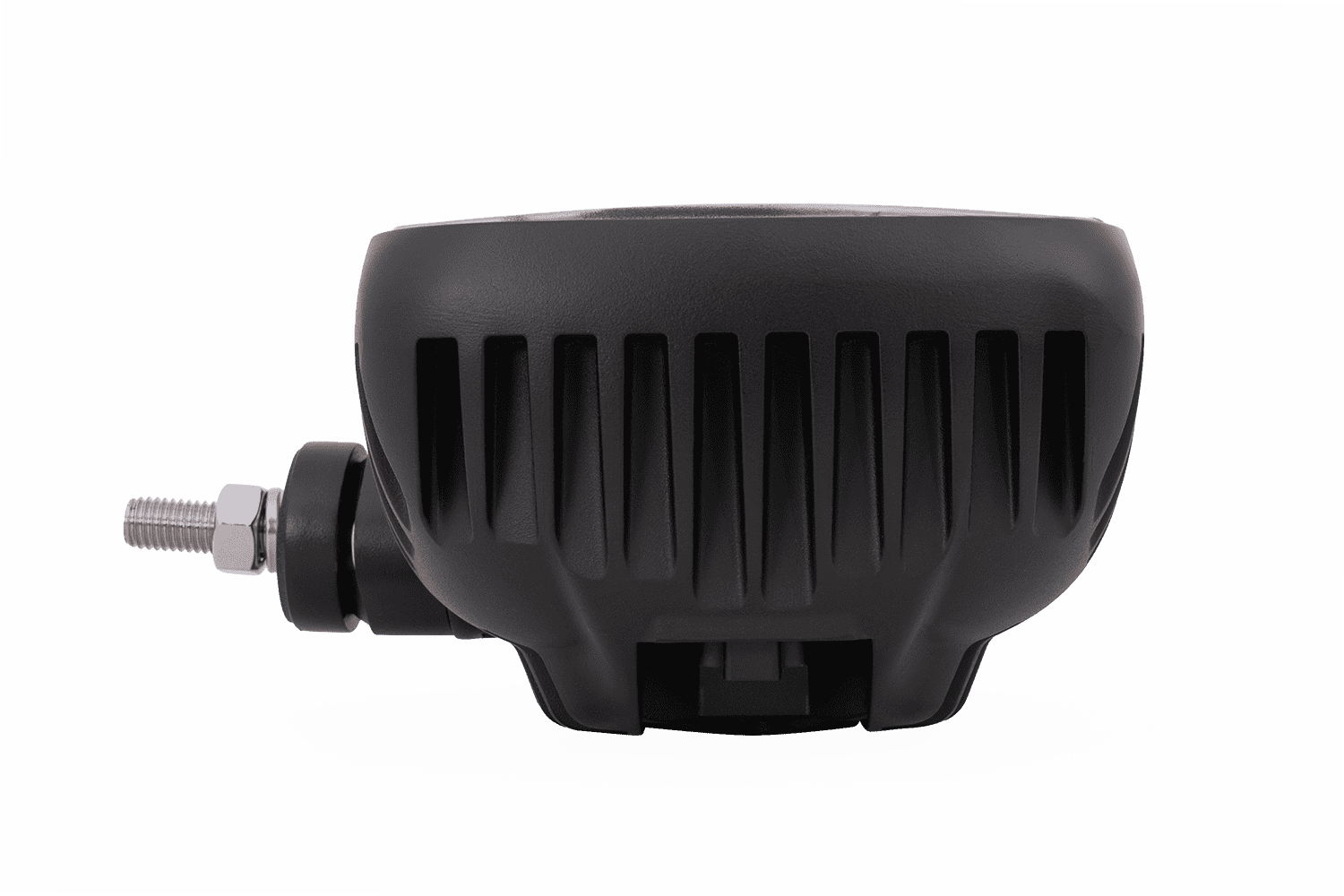

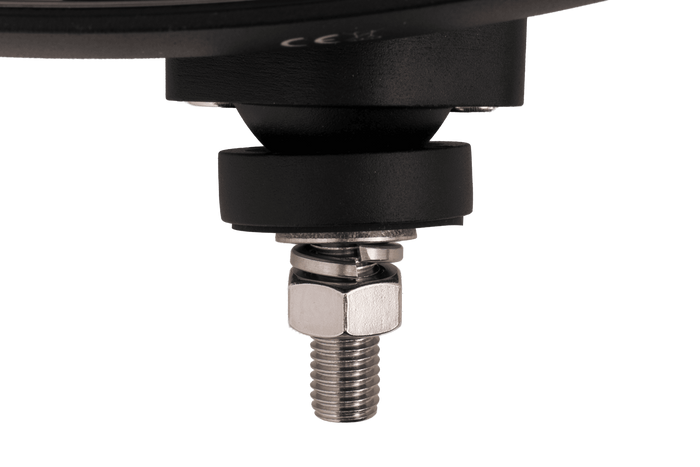

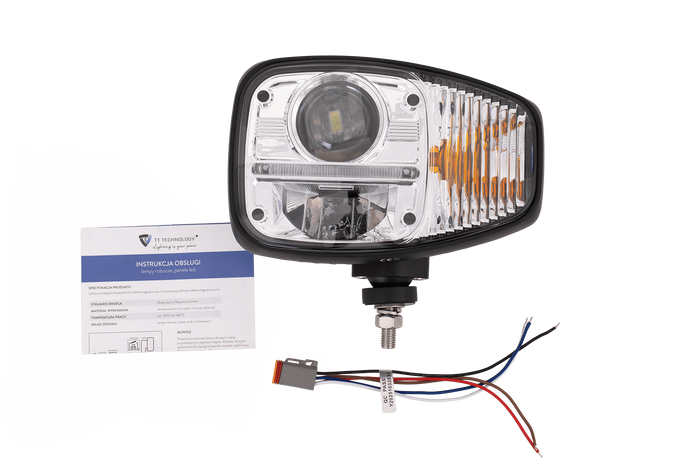

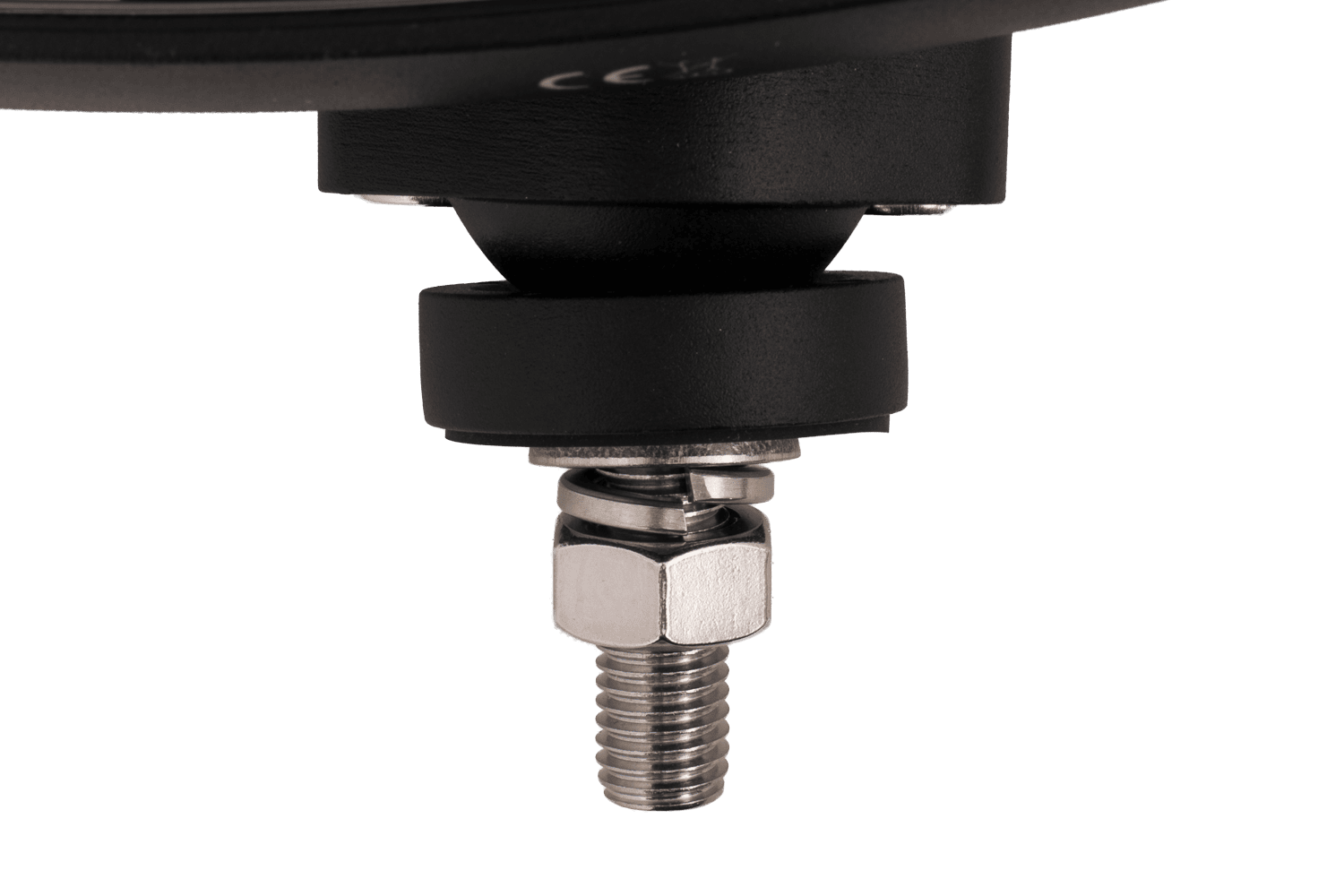

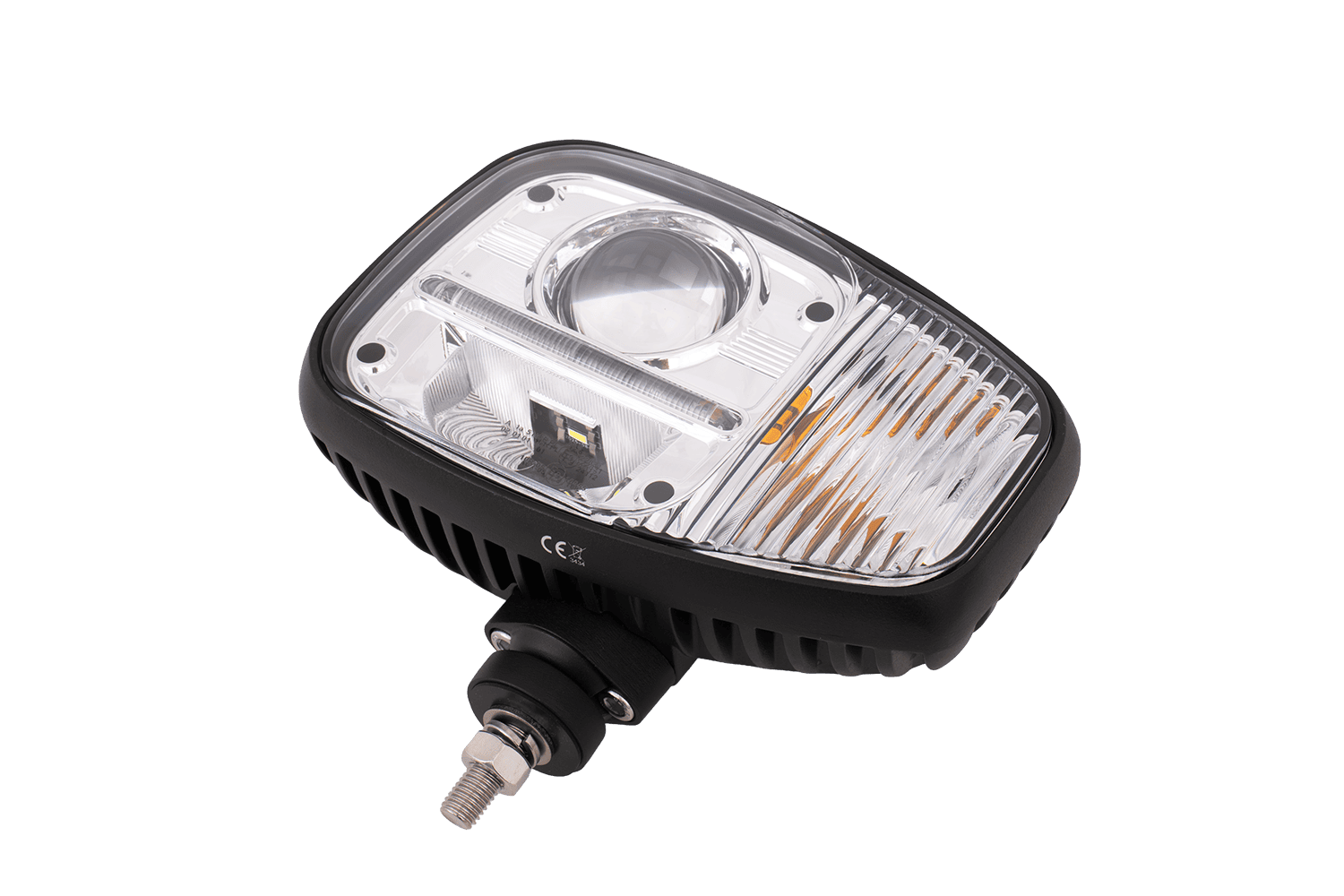

TT Technology TT.16611-L+TT.16611-P LED headlights 3 functions 23xLED 2350lm left+right for JCB/Cat/Manitou/Volvo/Terex

TT Technology TT.16611-L+TT.16611-P LED headlights 3 functions 23xLED 2350lm left+right for JCB/Cat/Manitou/Volvo/Terex

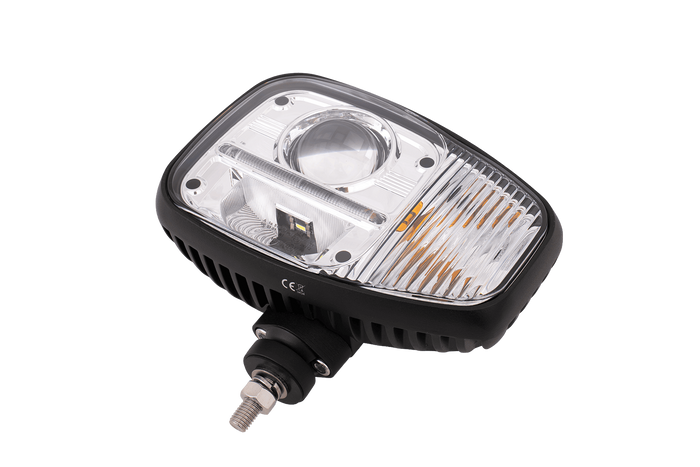

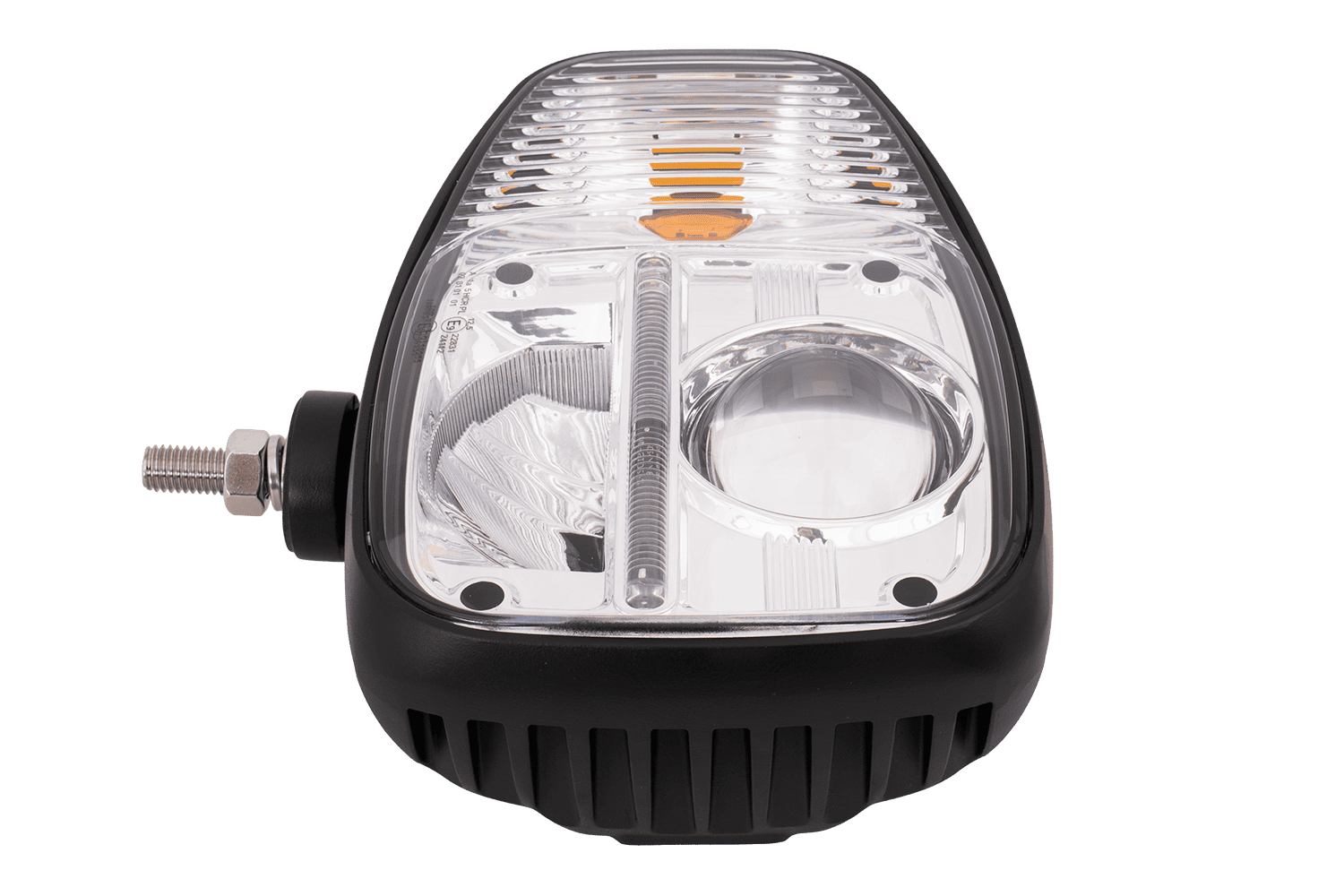

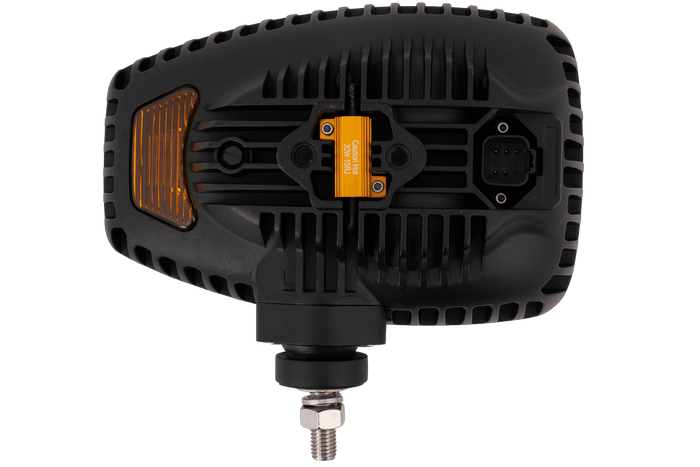

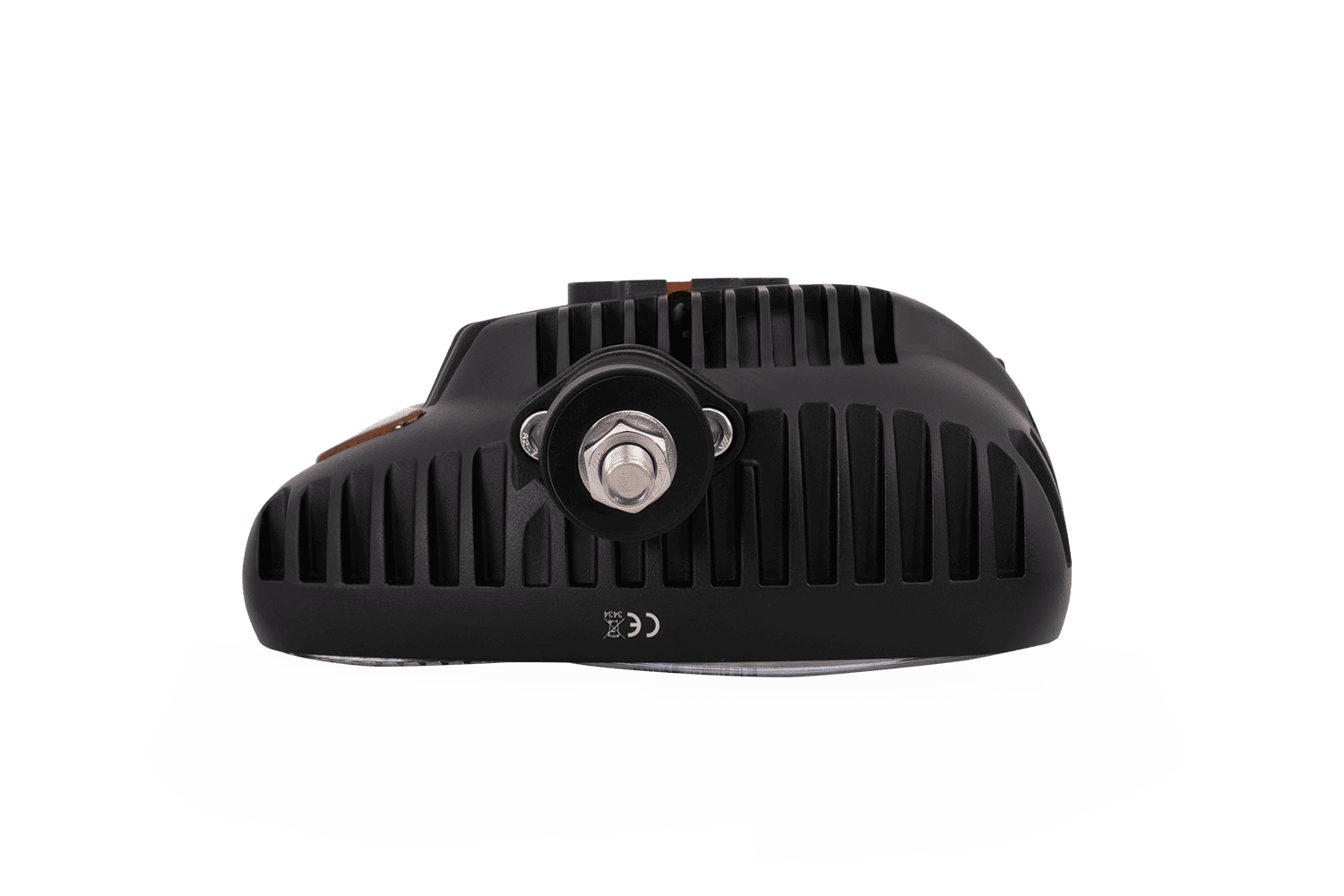

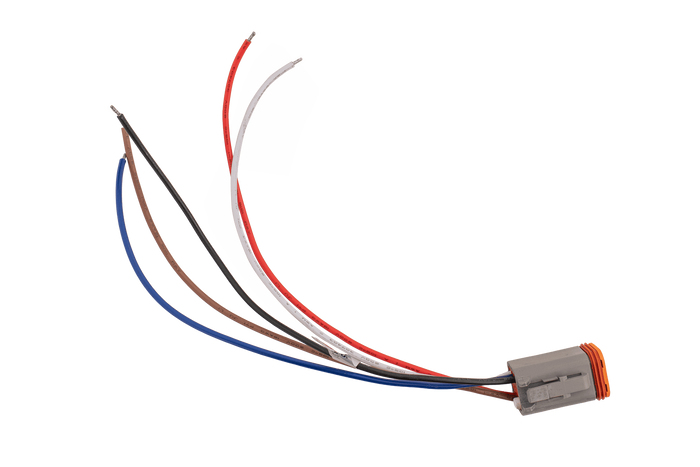

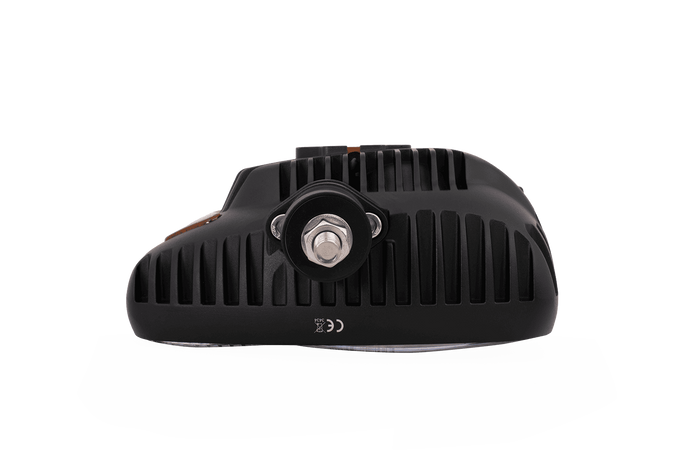

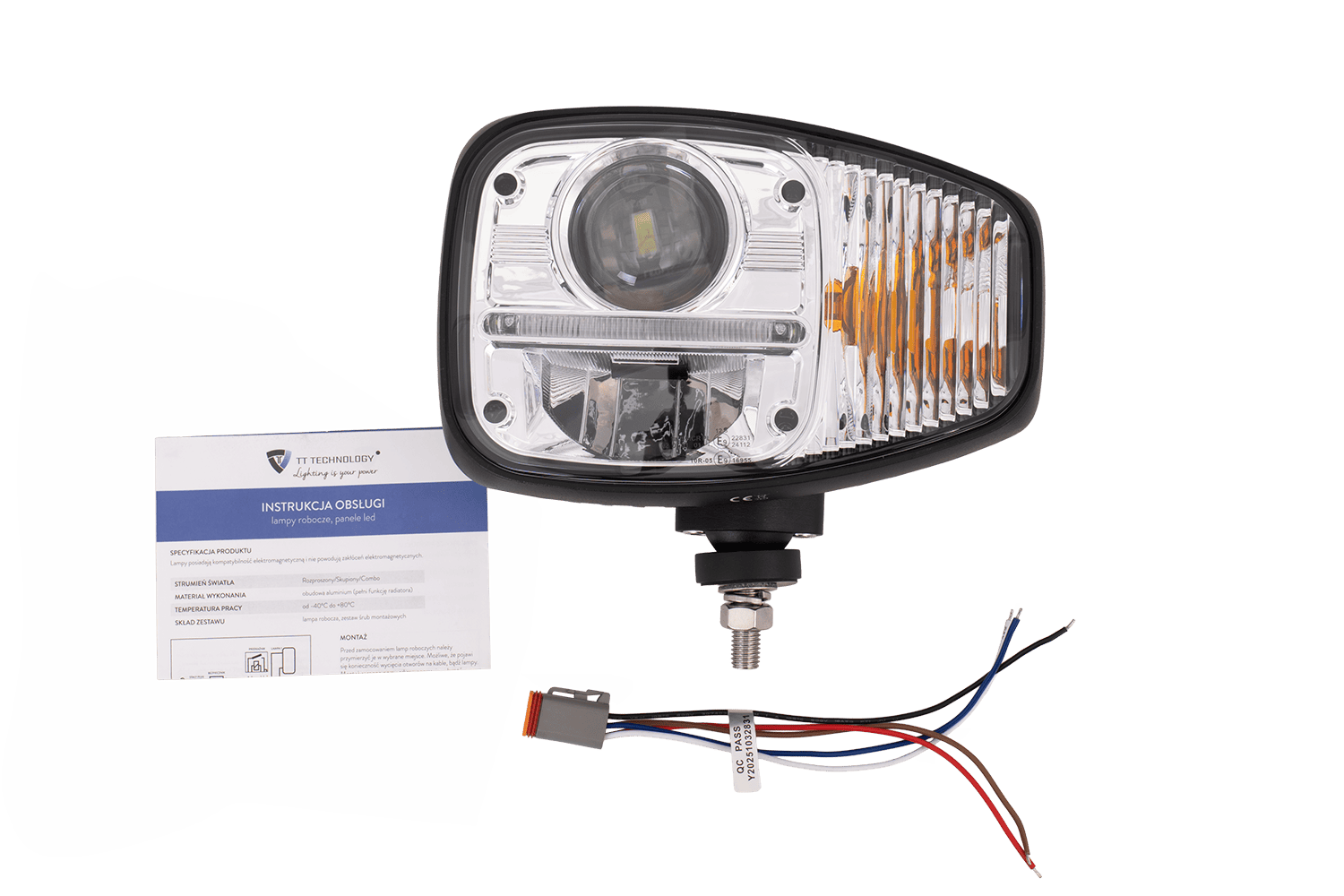

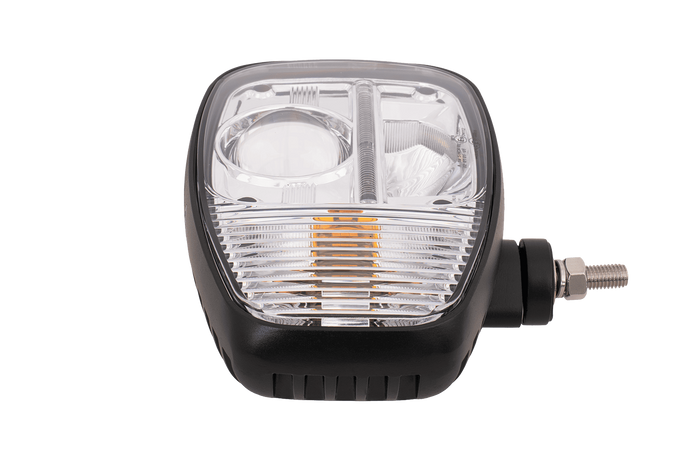

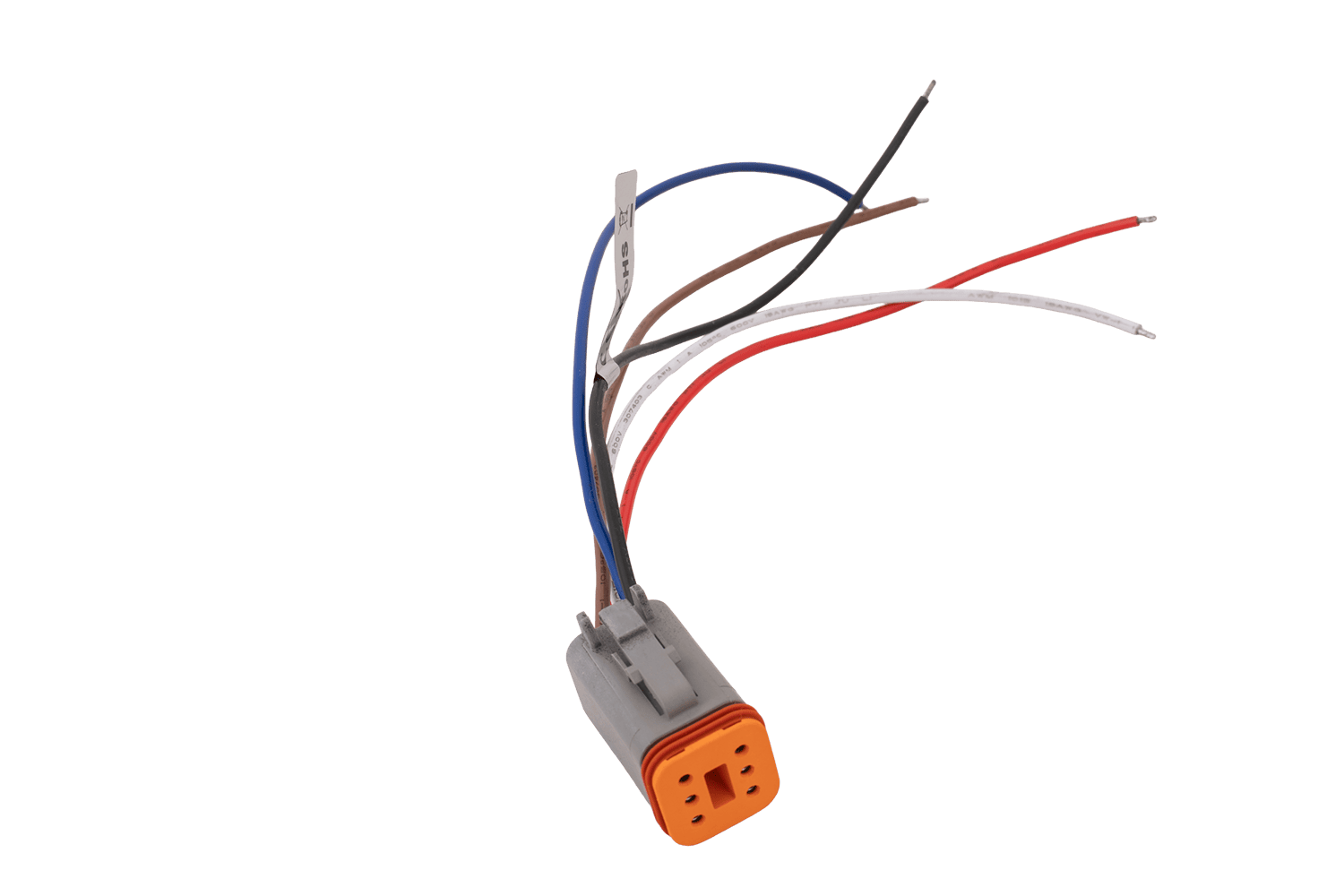

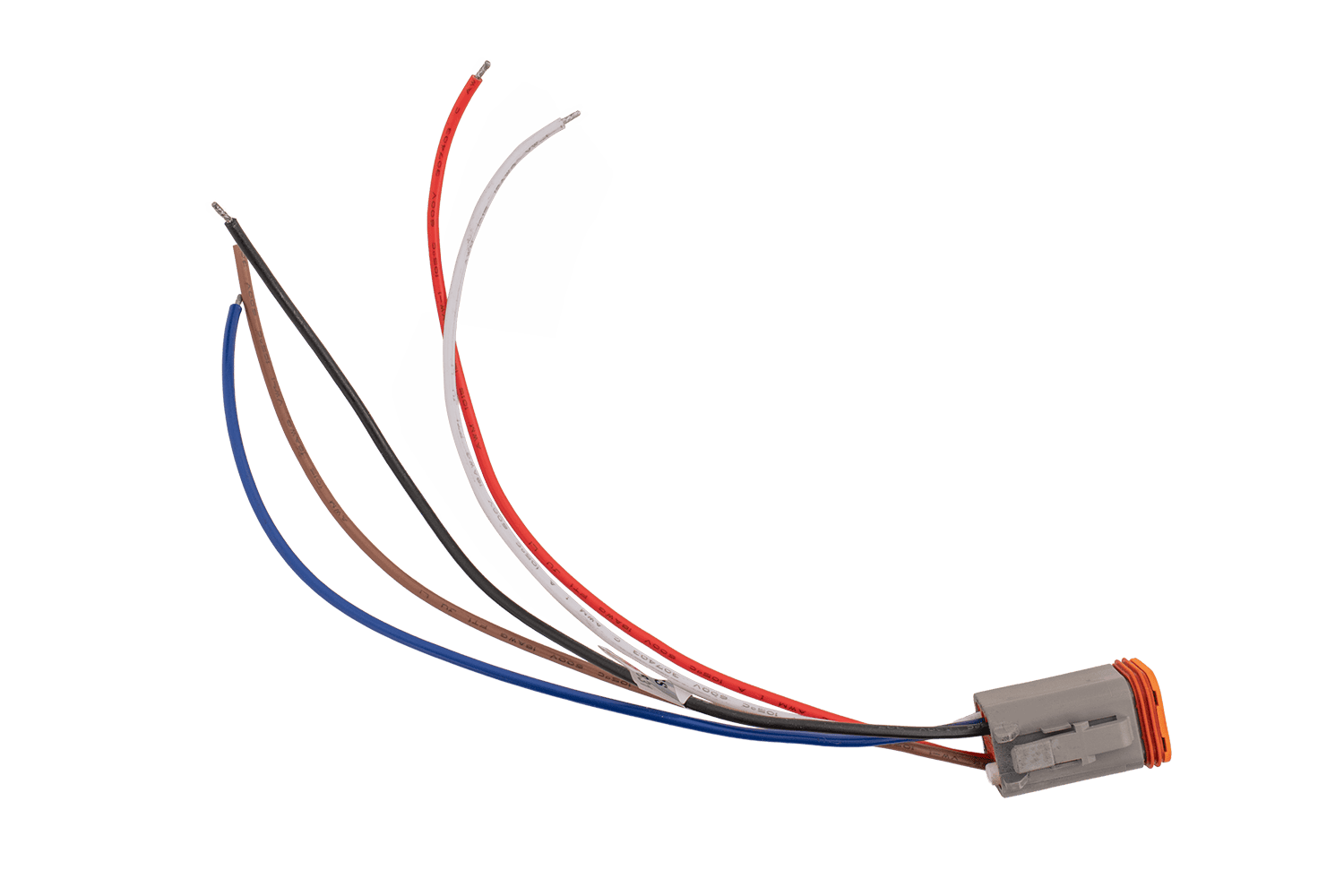

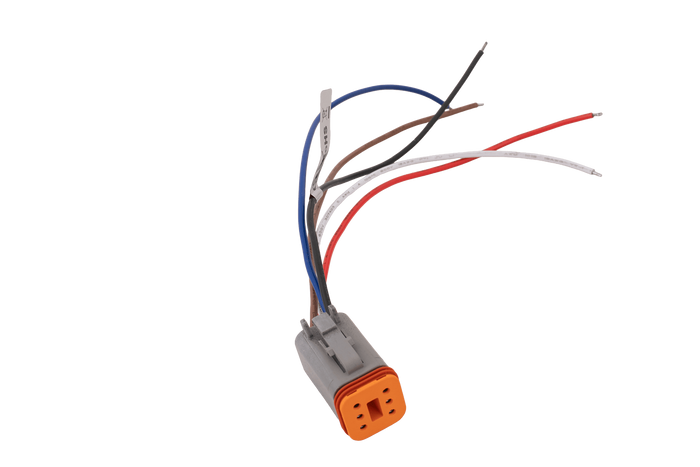

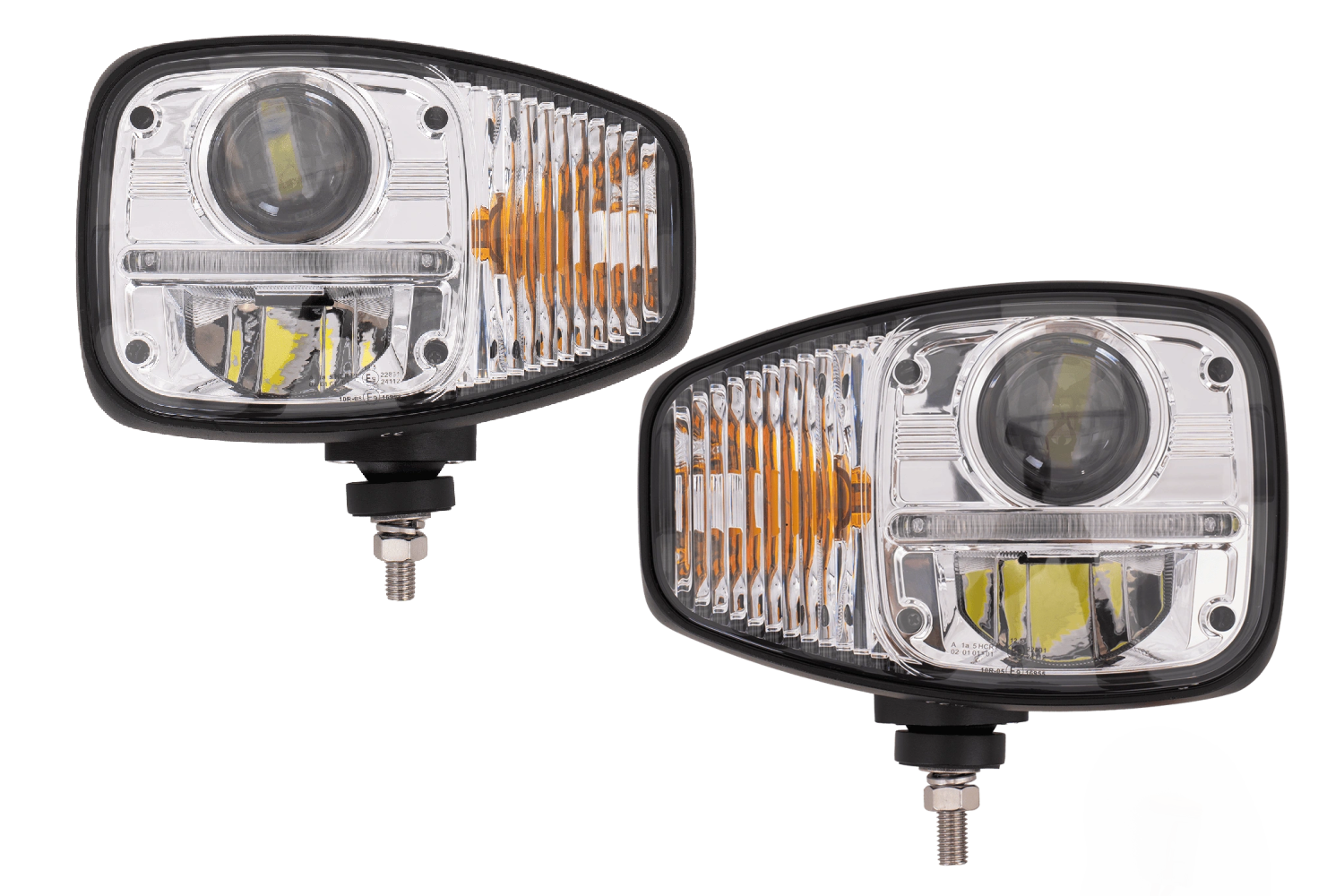

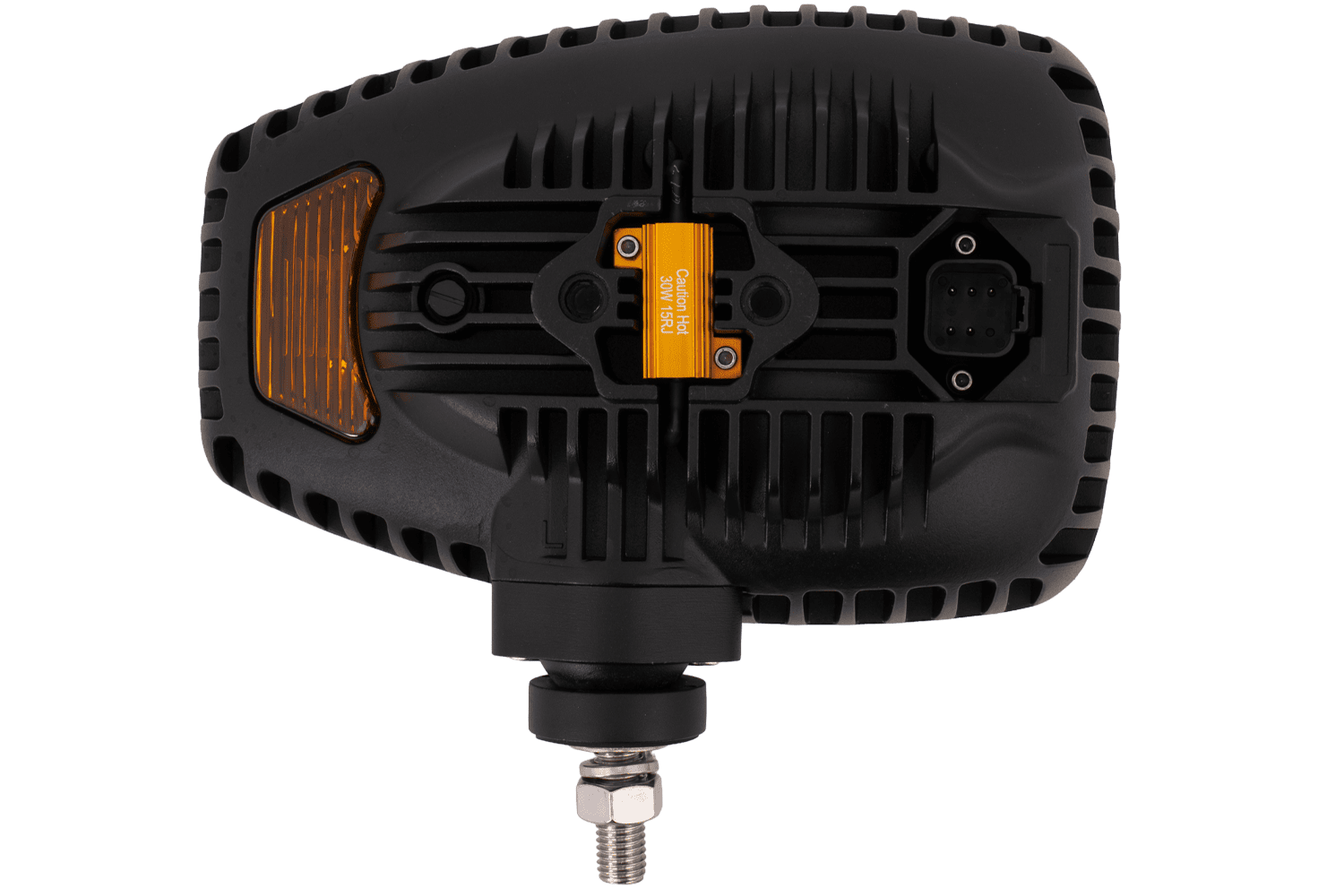

The TT.16611-L+TT.16611-P headlights by TT Technology are designed for installation on the left and right side of the vehicle and have the following dimensions: Width 229 mm, Height 152 mm, Depth 114 mm . Suitable for operation in a wide voltage range of 10-32 V, they are used in various types of agricultural vehicles, such as JCB, Cat, Manitou, Volvo, and Terex tractors. They are equipped with a male and female DT 6-pin plug. and The 0.15m cable allows for quick and hassle-free installation. Thanks to LED technology, the lamps provide high performance, durability, and energy efficiency, ensuring safety in various road conditions. They feature a built-in resistor , facilitating compatibility with vehicle wiring.

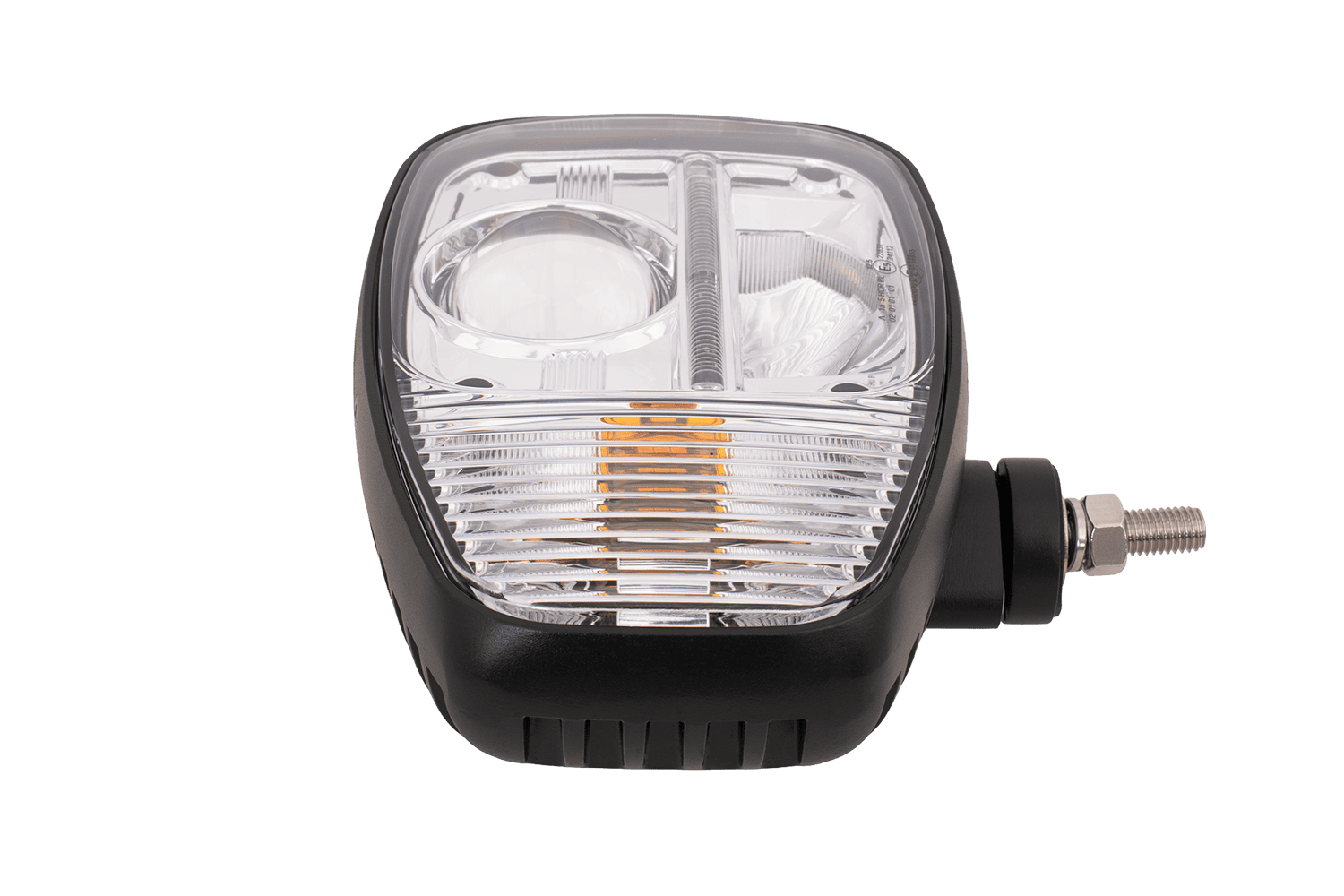

High-quality rectangular headlights with low beam, high beam, and integrated turn signal, powered by 23 OSRAM LEDs, each with an output of 82 W. Luminous flux: 750 lm in low beam mode and 2350 lm with high beam and low beam on. They emit a neutral white 5700K light that is easy on the eyes and does not cause fatigue during long periods of use.

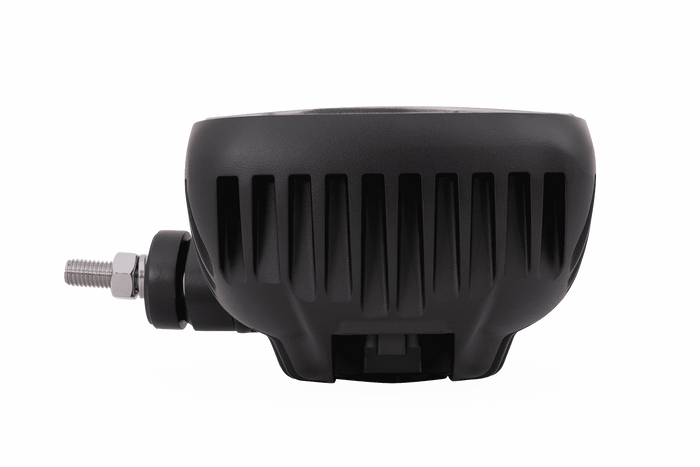

The lamps are highly resistant to shock, vibration, and extreme temperatures ranging from -40°C to +80°C, ensuring reliable operation in harsh operating conditions. Additionally, the lamps meet the CISPR 25 Class 4 standard, ensuring high efficiency in reducing electromagnetic noise . They do not interfere with other electronic devices in the vehicle and can be safely used in modern machines equipped with sensitive electronics.

Lamp functions

The lamps have three functions: a low beam , which ensures safe illumination of the road ahead without dazzling other road users; a high beam , which allows for maximum illumination of the area in conditions of limited visibility; and a turn signal , which clearly signals the intention to turn or change lane, improving communication with other drivers and the safety of maneuvers.

Tightness class

Lamps with an IP68/69K rating provide the highest level of protection against dust and water , making them ideal for the most demanding operating conditions. IP68 indicates complete resistance to dust ingress and the ability to withstand prolonged immersion in water (over 1 meter deep), while IP69K guarantees resistance to high-pressure and high-temperature water, such as during pressure washing. These properties make the lamps an ideal choice for use in commercial vehicles, trailers, agricultural, construction, and off-road machinery – anywhere reliability and durability in extreme conditions are essential.

Approvals

The headlamps are E9 approved for use in the EU, and meet a full set of key certifications and standards: CE – compliance with safety and compatibility requirements, RoHS – restriction of the use of hazardous substances in electronics, and ECE approvals: R112 (low beam/high beam), R6 (indicator), and R7 (position/parking light). These markings guarantee that the fixture meets stringent photometric, electrical, and EMC criteria, can be legally used in public traffic, and that the lens displays the appropriate "E9" marking along with the approval numbers for the lighting functions.

Headlights effectively illuminate the workspace around the vehicle , which is particularly important when working at night or in conditions of limited visibility. They are primarily used in agricultural, construction, and forestry machinery, as well as in commercial vehicles , where they provide the operator with improved visibility and increased safety. Thanks to their high light output, durability, and weather resistance, these lights are indispensable for nighttime fieldwork, maneuvering in loading yards, or operating equipment in difficult conditions. Choosing modern LED lights guarantees lower energy consumption, long service life, and comfortable work in all conditions.

Fits:

• HELLA:
  1EE 996 174-401
  1SA996120107
  1EE996174201
  Combi220


• AEBI:
  12671021
  12683795


• MAFI: 0005800148


• MAN:
  81251016403
  81.25101.6403FF
  81251016792
  81AC1258117


• MANITOU: 929717


• PAUS: 556625


• SCANIA: 20223061


• VOLVO: 17 286 451

• Faresin: ME11096A40

• JCB:
  700/50192
  700/50194
