YATO YT-06412 puller and separator set 14 pieces
YATO YT-06412 puller and separator set 14 pieces
The YT-06412 YATO puller and separator set is designed for removing tightly fitted components such as bearings, gears, brake discs , and other parts mounted on shafts and axles. The set includes a two-arm puller, two separators, and the necessary mounting hardware, allowing you to customize the tool for a variety of service and repair tasks.

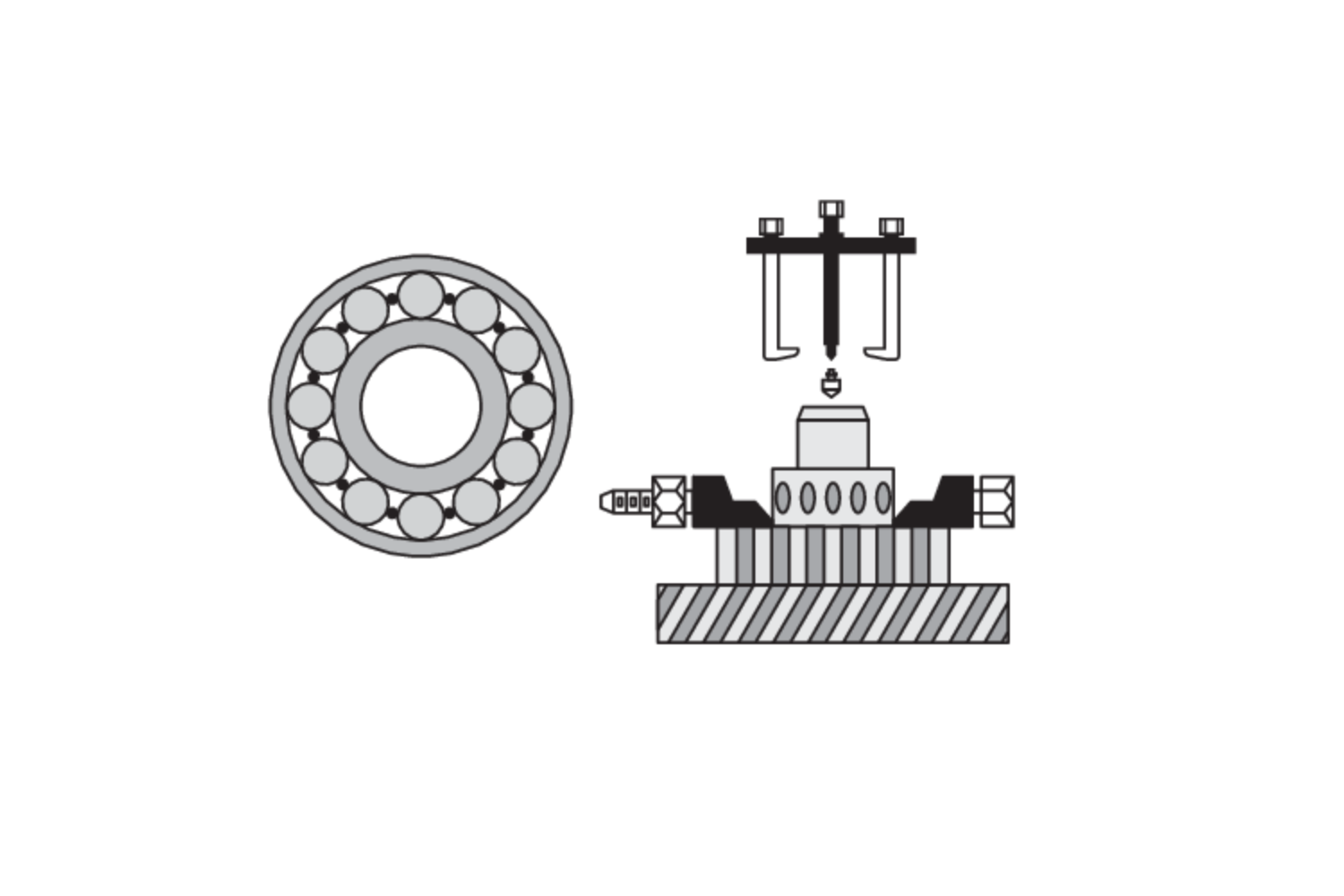

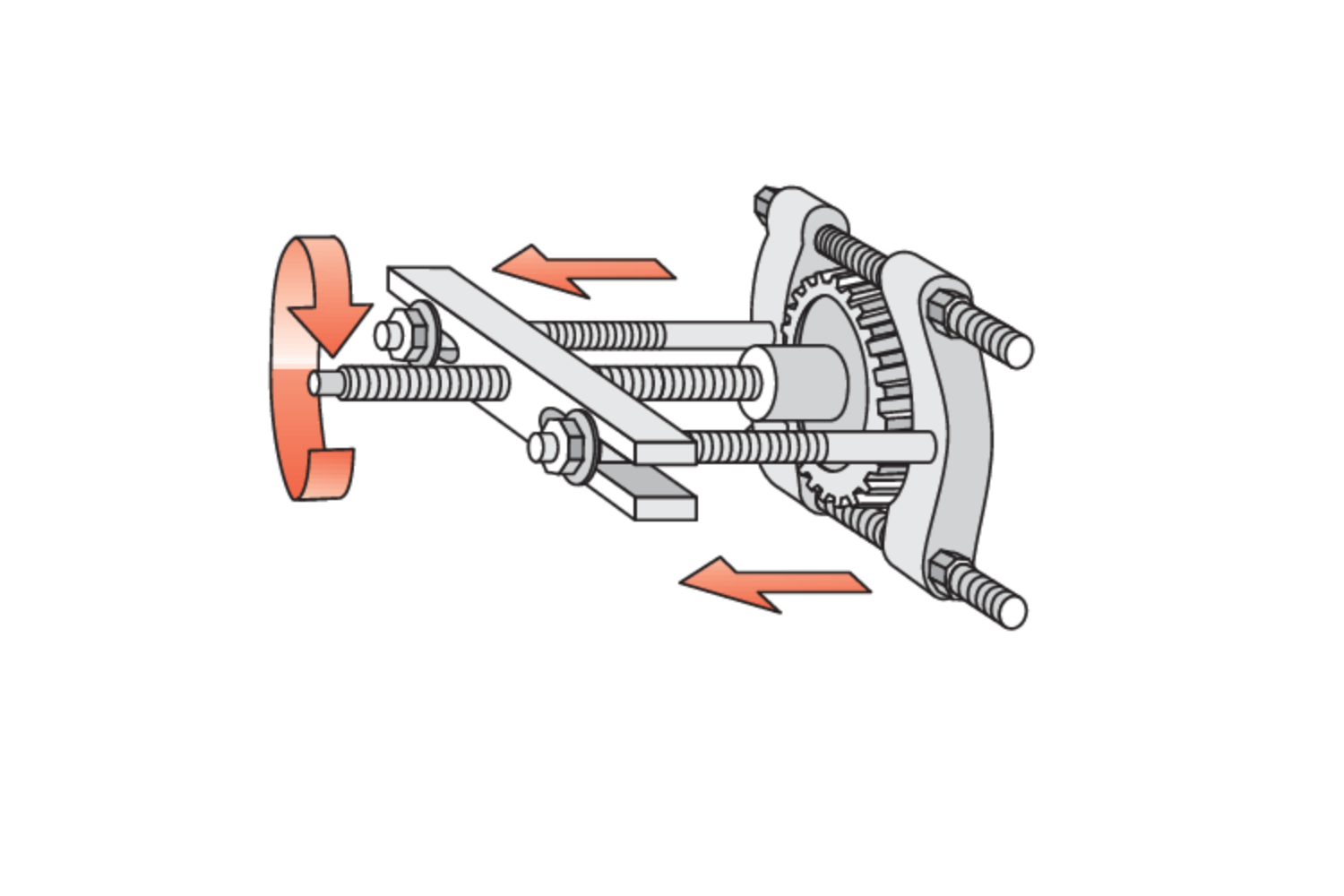

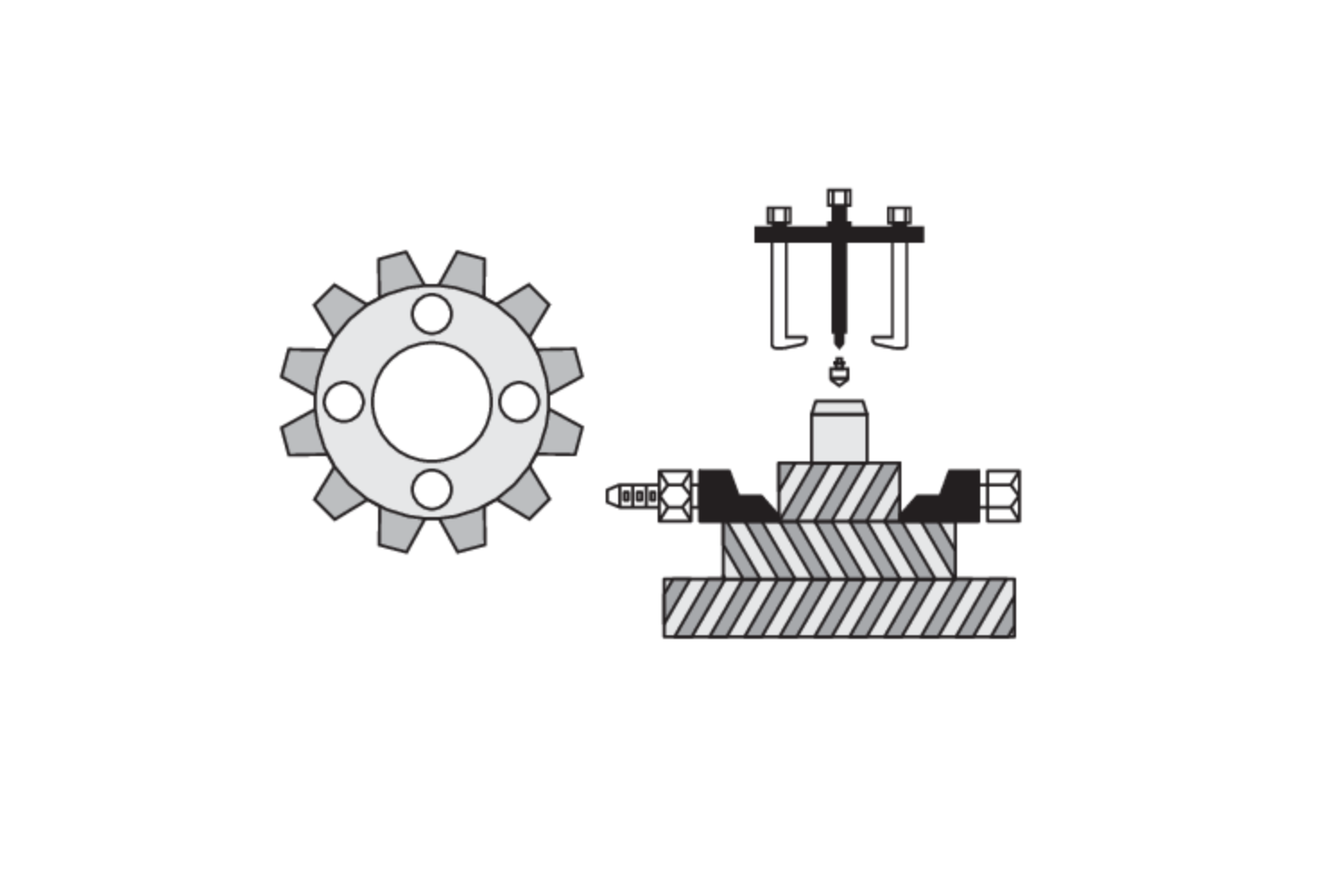

Adjustable jaw spacing from 35 to 130 mm allows for work with components of various sizes. Separators with diameters of 60 and 75 mm slide under the part being removed, facilitating even support and safe removal without excessive pressure on any one point. The separators' working range is 15–60 mm and 25–75 mm, respectively.

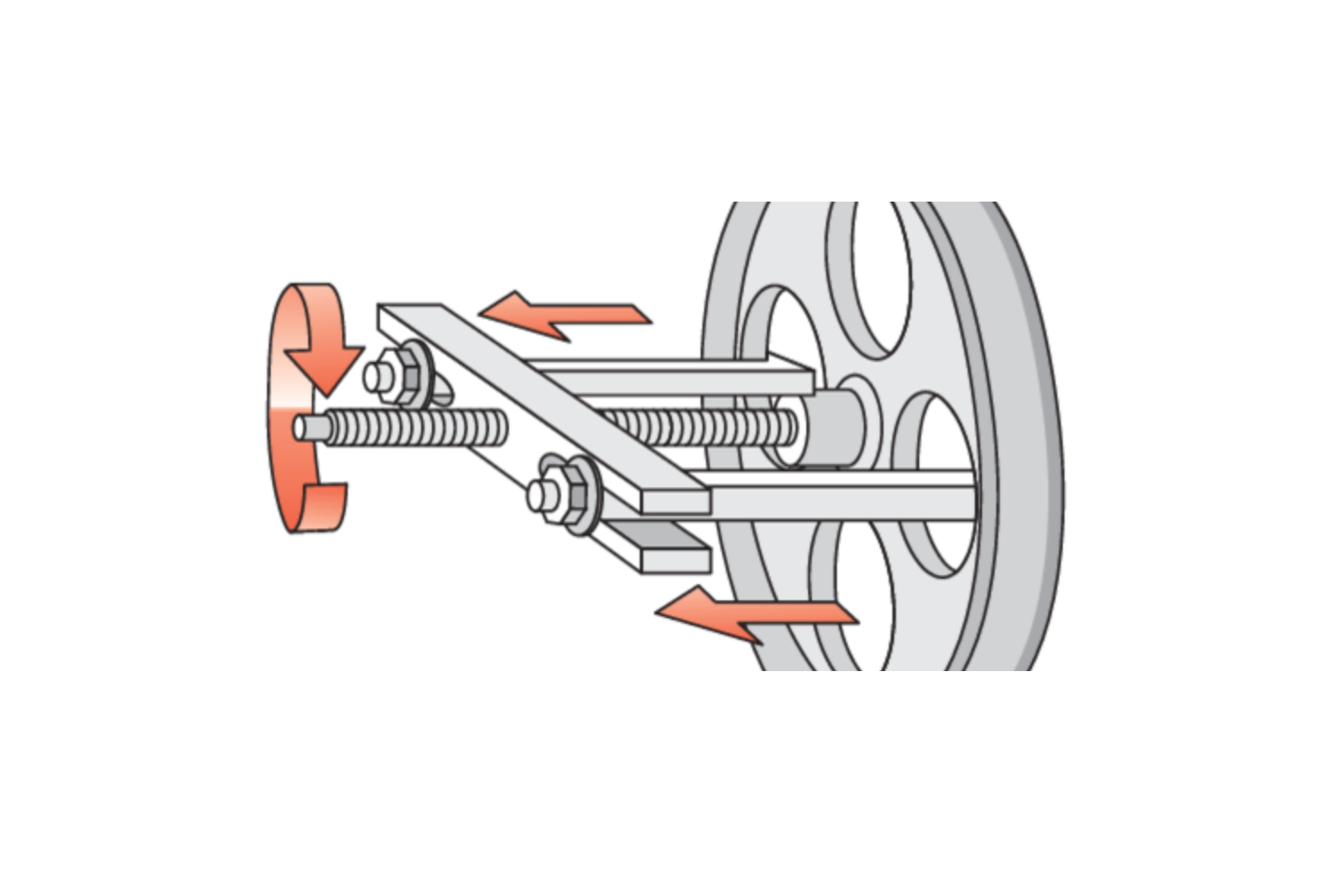

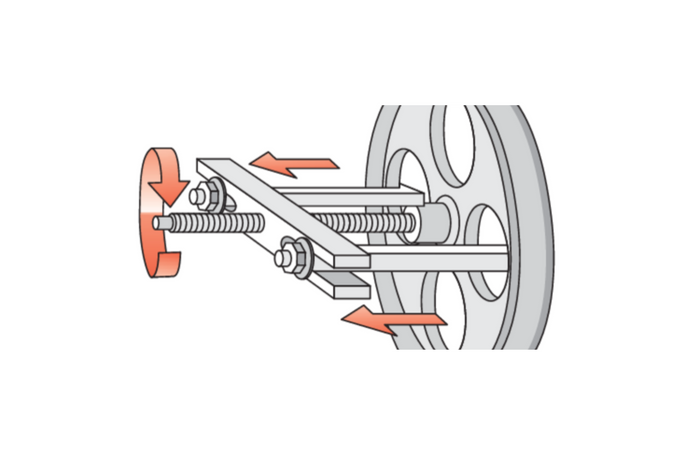

All components are made of carbon steel, ensuring adequate stiffness and resistance to the loads generated during disassembly. Central screws allow for the gradual application of controlled force, helping to reduce the risk of damage to the removed component or its associated components.

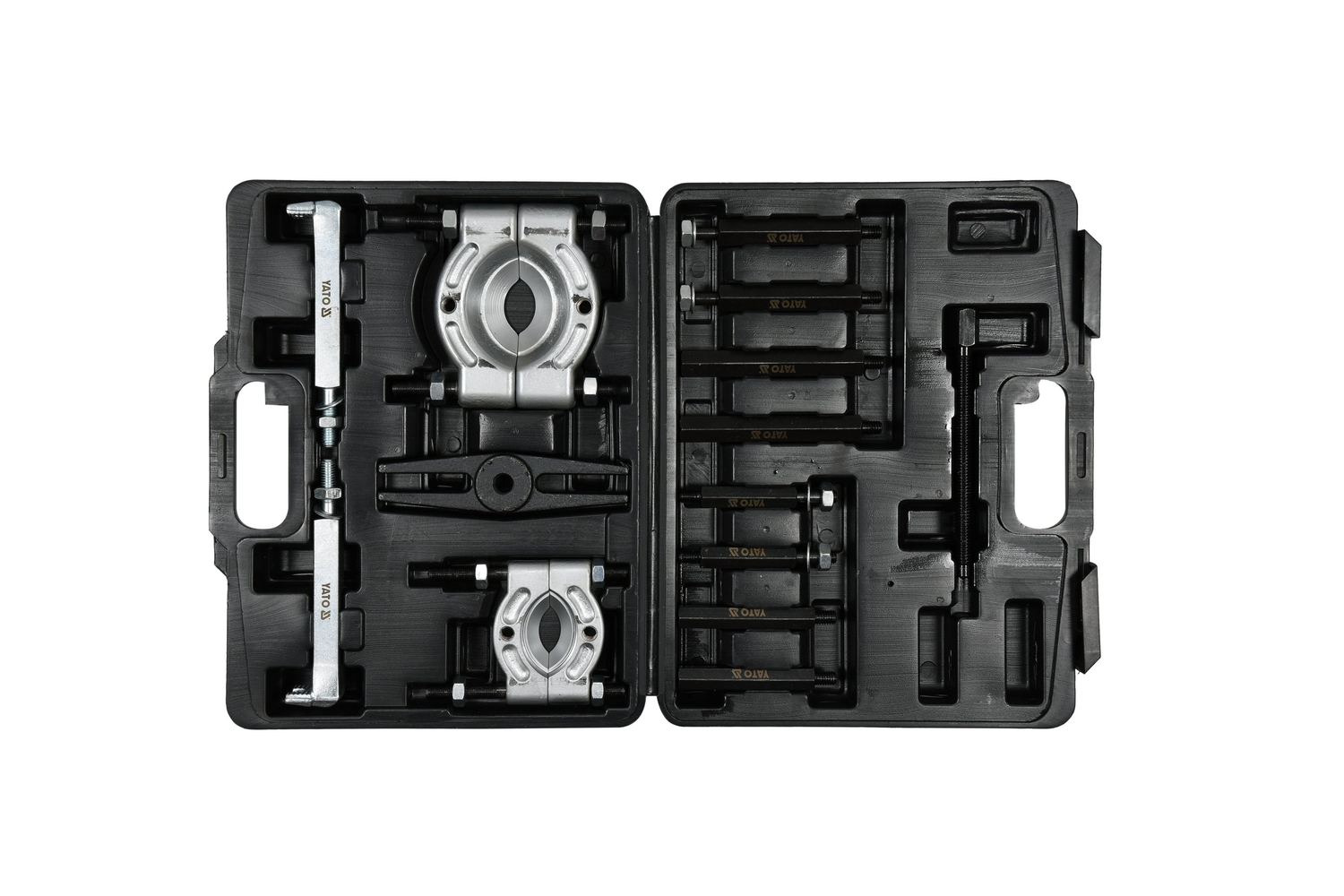

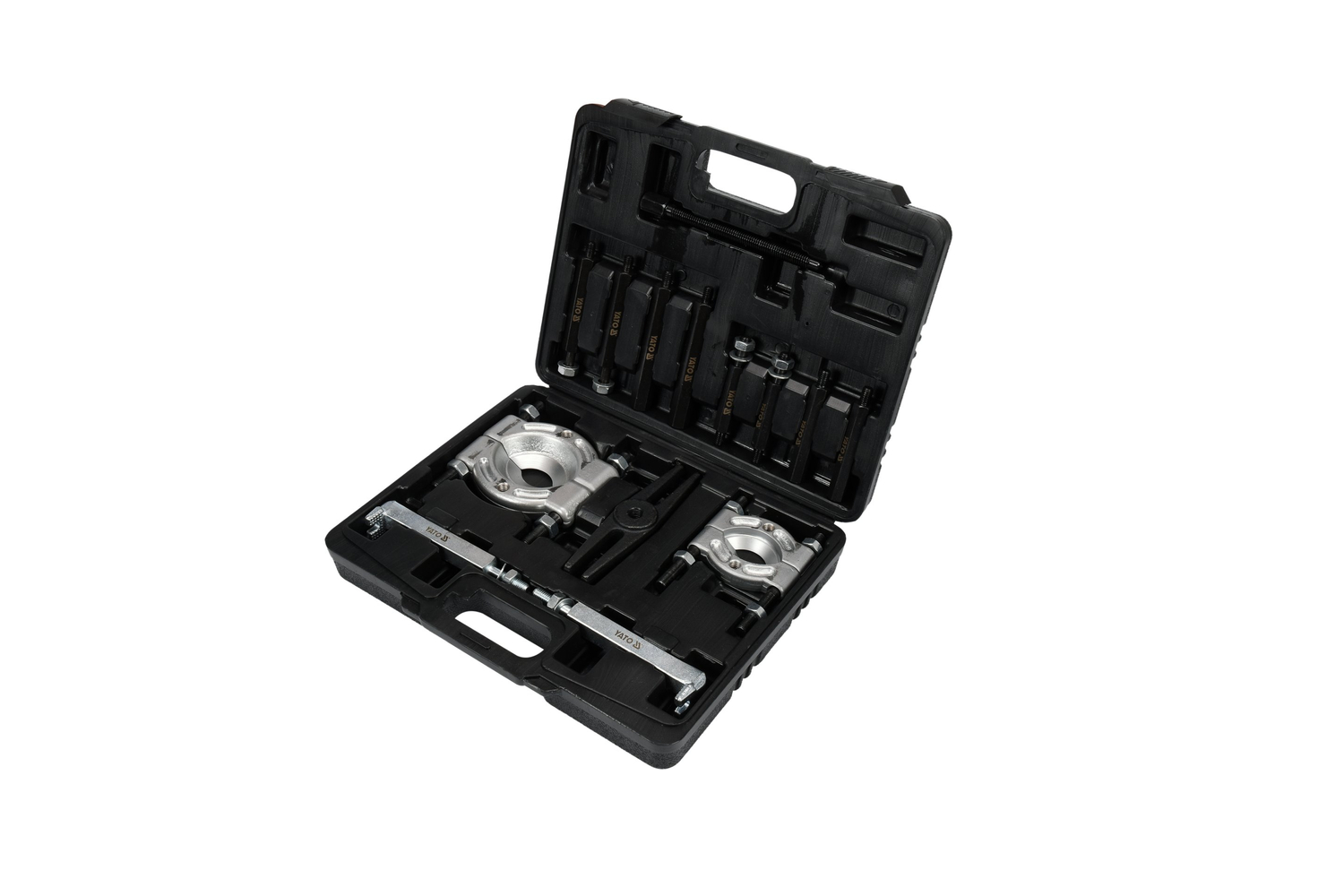

The entire set is housed in a handy carrying case , making it easy to store, transport, and keep all the set's components in one place. This keeps the tools organized and ready for use in or out of the workshop.
Technical parameters
- number of elements in the set: 14,
- material: carbon steel,
- jaw spacing: 35–130 mm,
- separator sizes: 60 and 75 mm,
- separator operating range: 15–60 mm and 25–75 mm,

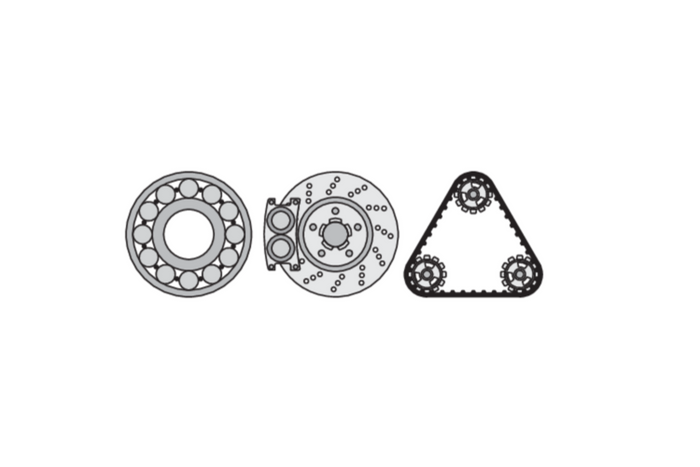

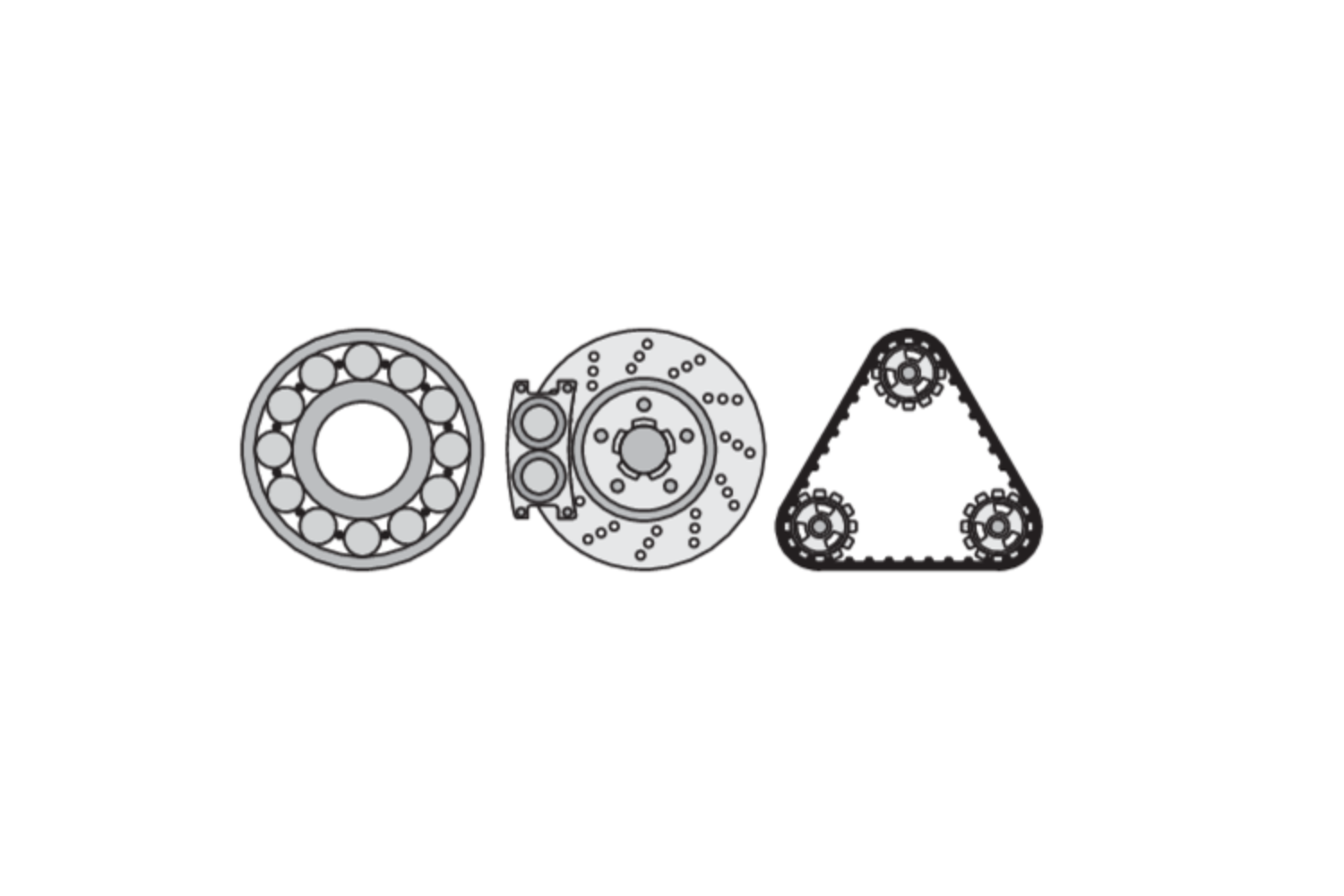

- Application: dismantling bearings, gears, brake discs and other tightly fitted components.
Contents of the set
- two-arm puller,
- separator 60 mm,
- separator 75 mm,
- a set of central screws and mounting elements,
- transport case
This set is perfect for automotive and mechanical workshops, machine repair shops, and home garages. It's designed for mechanics, service technicians, and DIY enthusiasts who repair chassis systems, transmissions, and other mechanical components. It facilitates the removal of firmly seated parts, reduces the need for prying , and allows for more controlled work.
