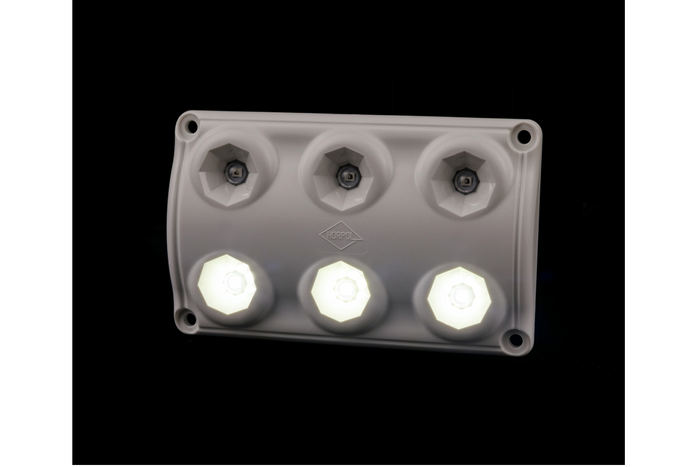

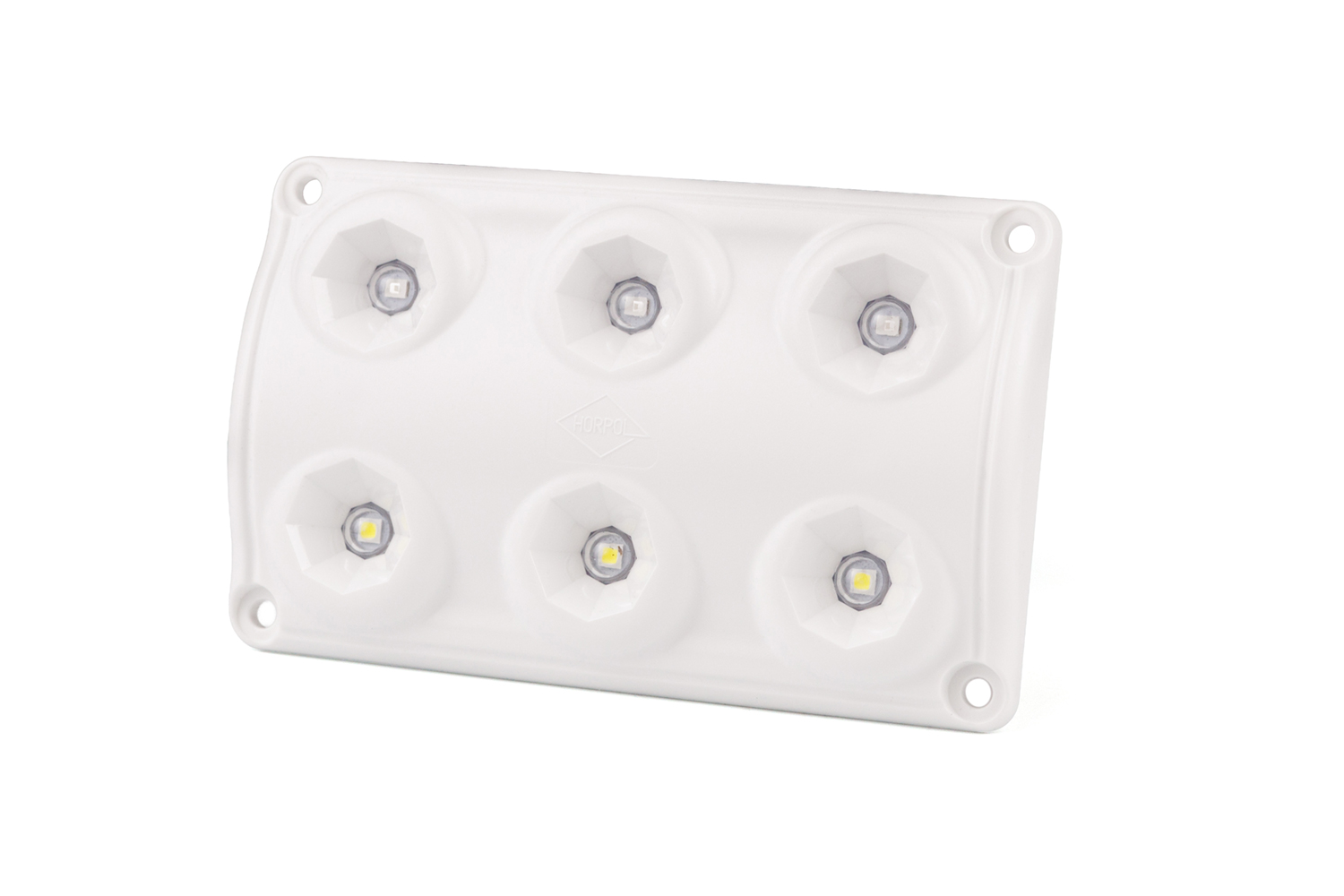

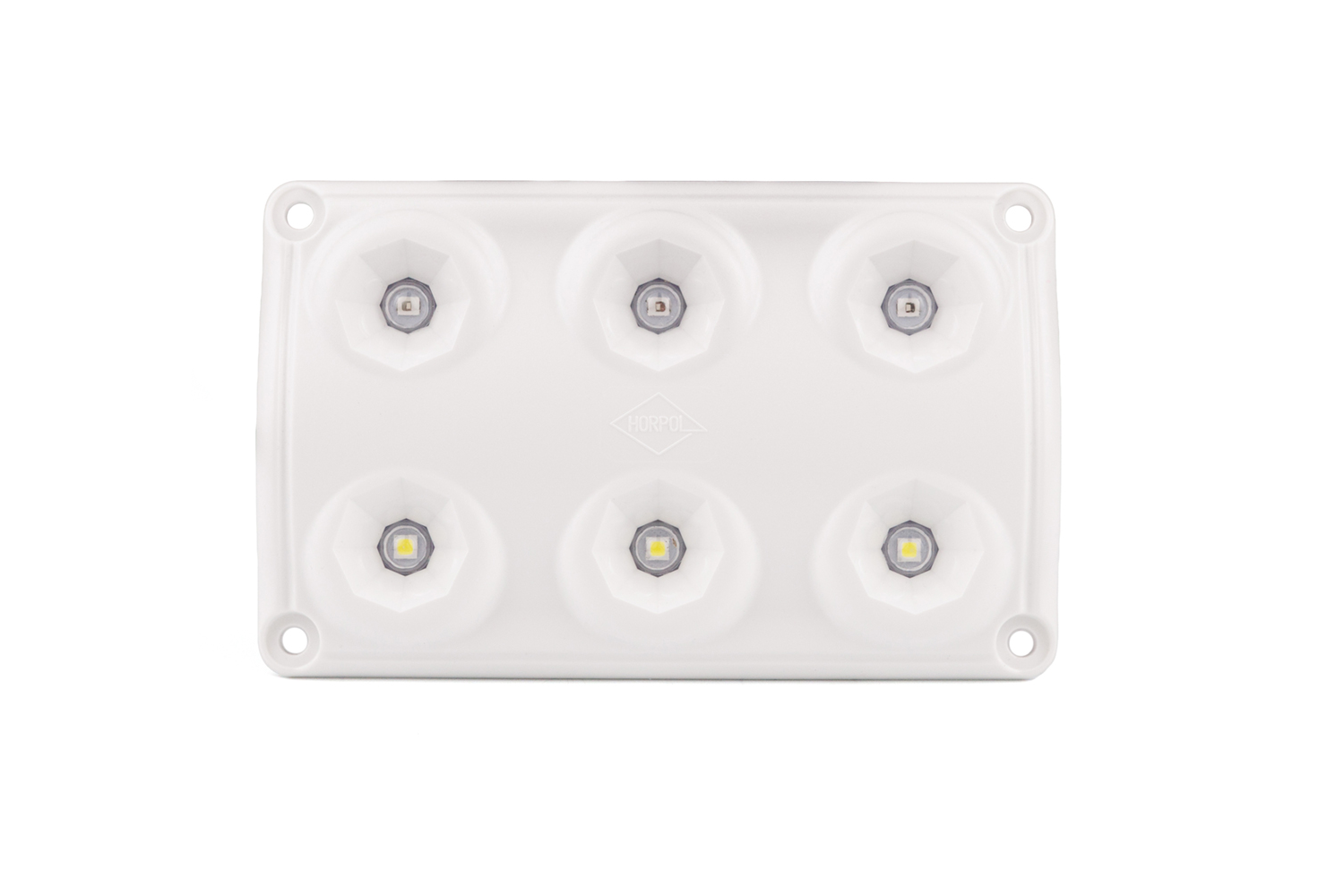

HORPOL LWD2864 LED 560lm interior car lamp
HORPOL LWD2864 LED 560lm interior car lamp

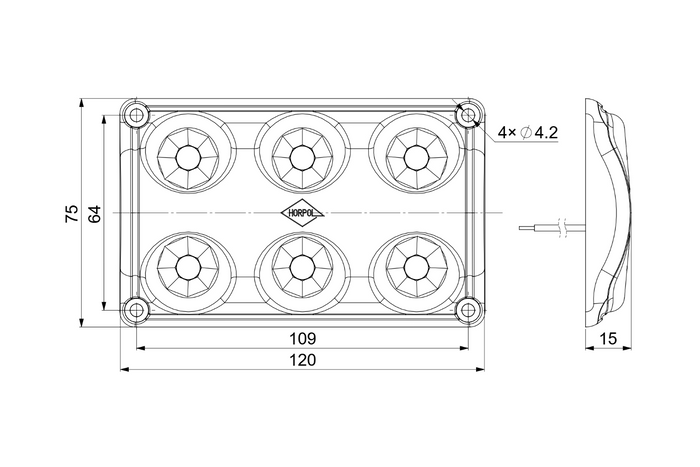

The LWD 2864 interior lamp from HORPOL is a rectangular LED model designed for 12 or 24 V installations. Its dimensions of 120 x 75 x 15 mm allow for minimal space and allow for use in a variety of vehicle configurations. Its universal mounting system makes it easy to adjust the lamp to the desired location within the vehicle. It is suitable for illuminating cabins, passenger compartments, cargo areas, and vehicle bodies in passenger cars, vans, trucks, buses, campers, caravans, trailers, and semi-trailers.
The lamp offers two lighting modes , adapted to different operating conditions. White LEDs provide a luminous flux of 560 lumens at a rated power of 0.4 W at 12V or 0.2 W at 24V , which is ideal for working in the cabin or cargo area. Blue LEDs generate a soft auxiliary light with a flux of 20 lumens and a power of 0.7 W at 12V or 1.3 W at 24V. This mode provides subtle interior illumination, reduces glare, and is ideal for nighttime stops and working in low-visibility conditions.

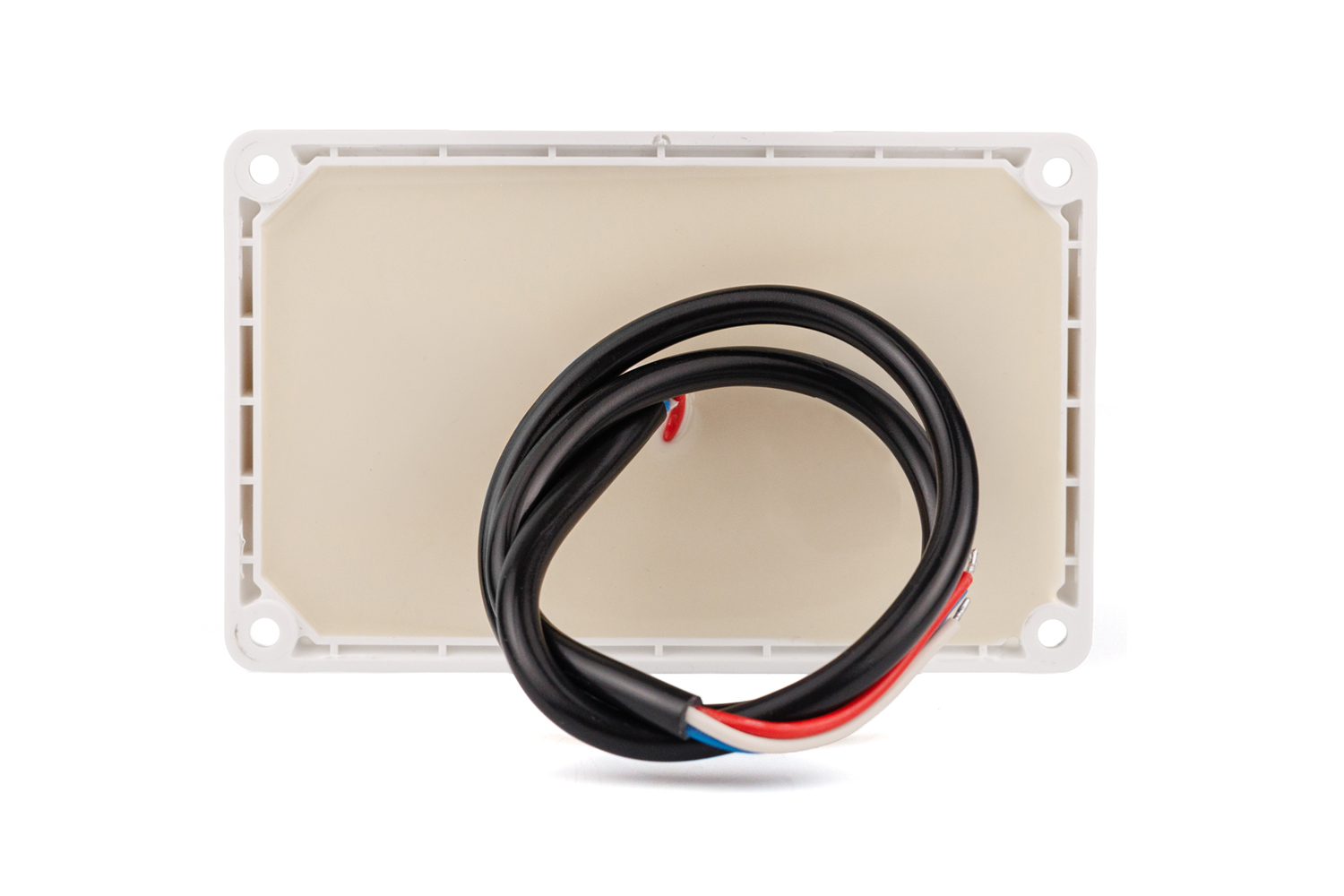

The light source is 6 LEDs that emit white light with a color temperature of 5000K , and in night mode, low-intensity blue light . The model is equipped with a 3×0.5 mm², 0.5 m long cable for easy connection to the vehicle's electrical system. An operating temperature range of -30°C to +50°C allows you to use the lamp in a variety of conditions.
Lighting modes
- white diodes – 560 lm, 0.4 W/0.2 W (12 V/24 V)
- blue diodes – 20 lm, 0.7 W/1.3 W (12 V/24 V)
Tightness class
The IP65 -rated lamp is fully protected against dust ingress and protected against low-pressure water jets from any direction. This makes it ideal for demanding work environments where dust, dirt, and the possibility of contact with water are present, such as in commercial vehicles, trailers, agricultural machinery, and construction equipment. It guarantees reliability and durability, ensuring safe use even in challenging environments.
Approvals
The lamp is E20 approved in accordance with UNECE R10 regulation and EMC requirements for the electromagnetic compatibility of equipment used in vehicles. The E20 marking indicates that the approval was granted by the relevant authority in Poland, while compliance with R10 and EMC confirms that the lamp meets requirements for electromagnetic interference emissions and immunity to interference from other devices. Therefore, its operation should not interfere with the vehicle's electrical system or on-board equipment.
Additionally, the lamp has a PZH hygiene certificate , confirming that it can be safely used in conditions consistent with its intended use, including in vehicle interiors and utility buildings.
Interior lamps are a practical solution for illuminating cabins, passenger compartments, cargo areas, trailers, semi-trailers, and commercial vehicle bodies . They improve visibility after dark and in poorly lit areas, facilitating loading, unloading, servicing , and everyday vehicle use. They are recommended for use wherever an independent, efficient, and convenient light source is needed inside the vehicle.
