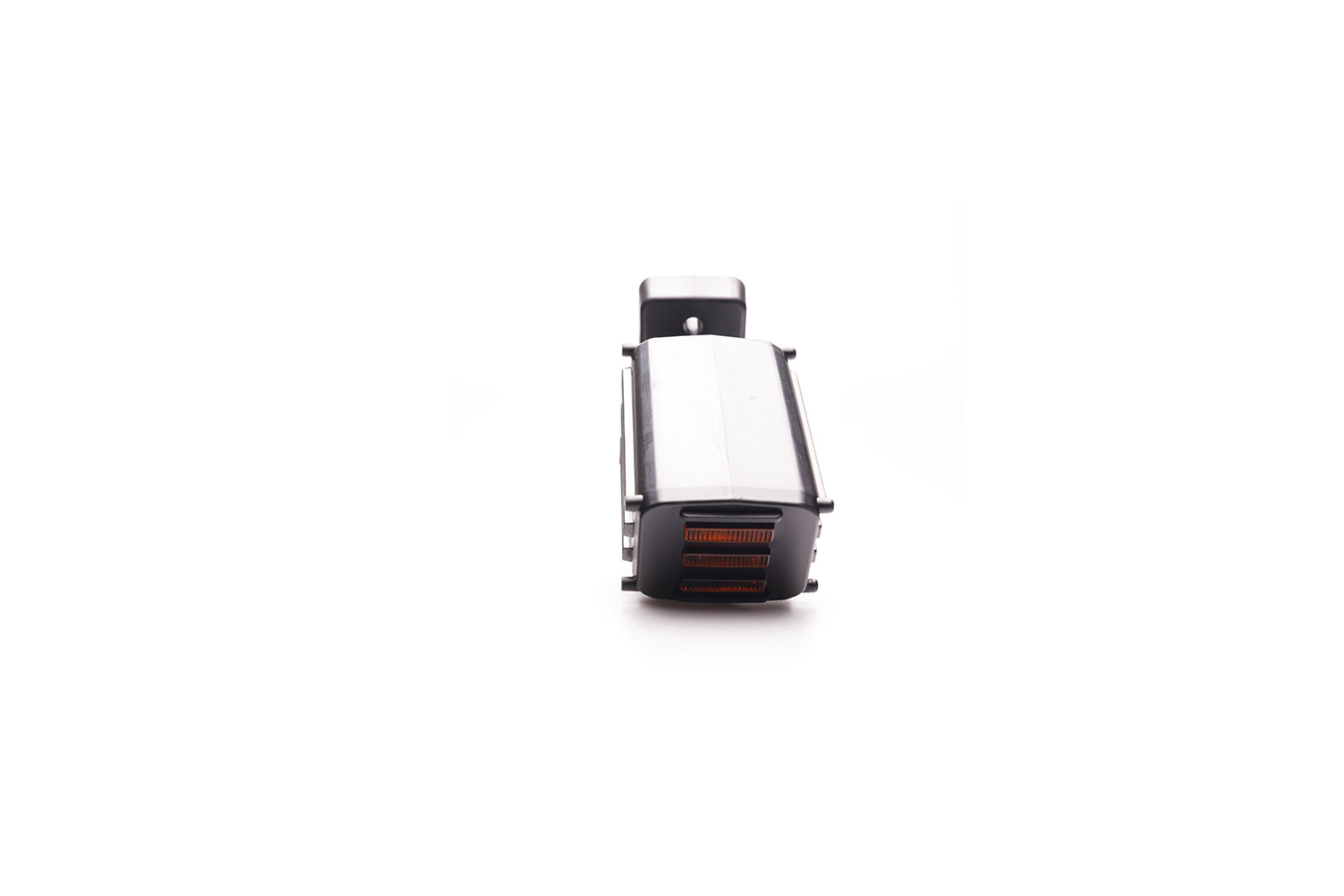

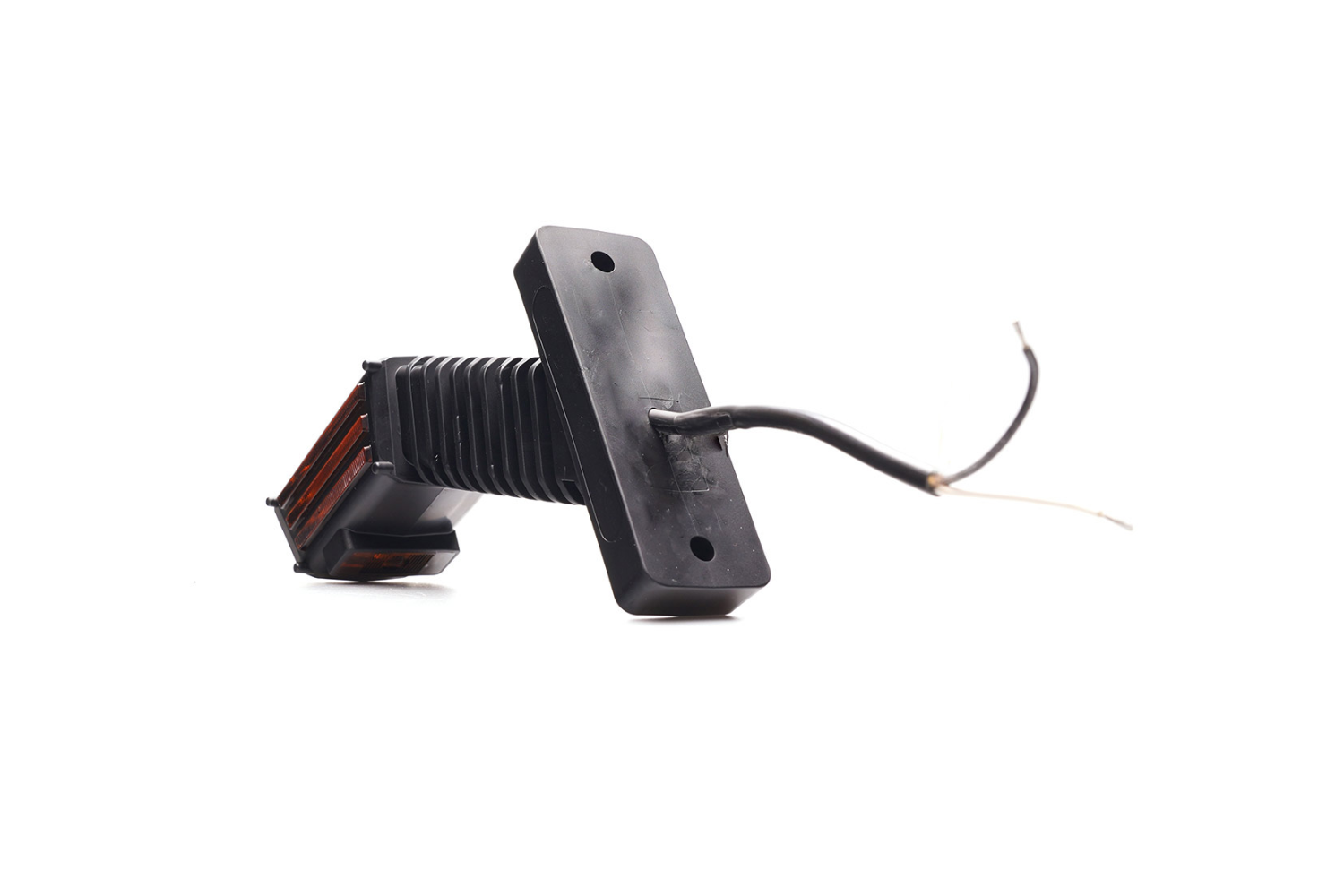

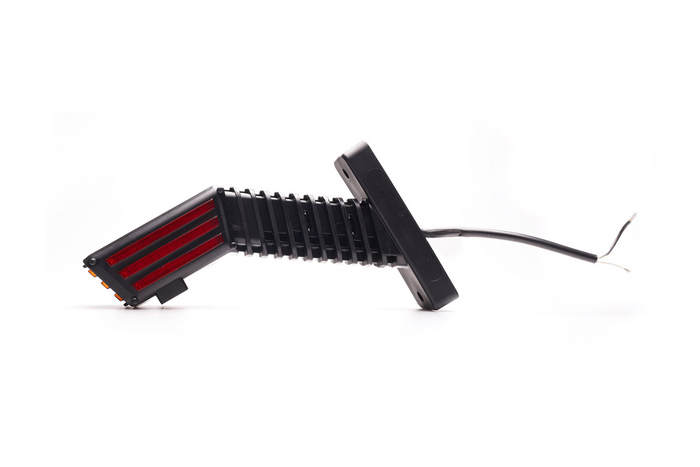

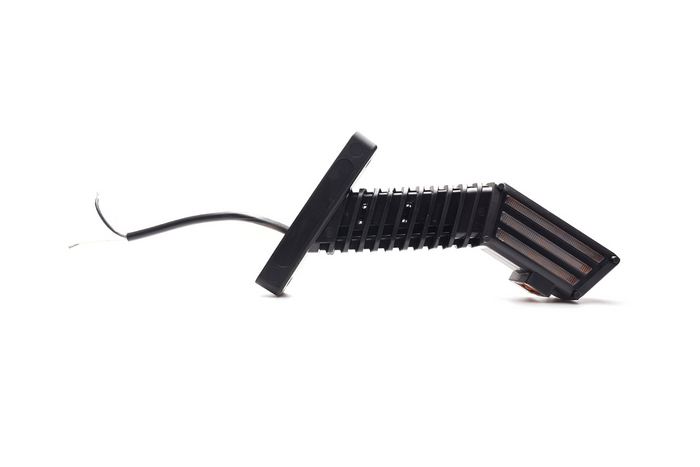

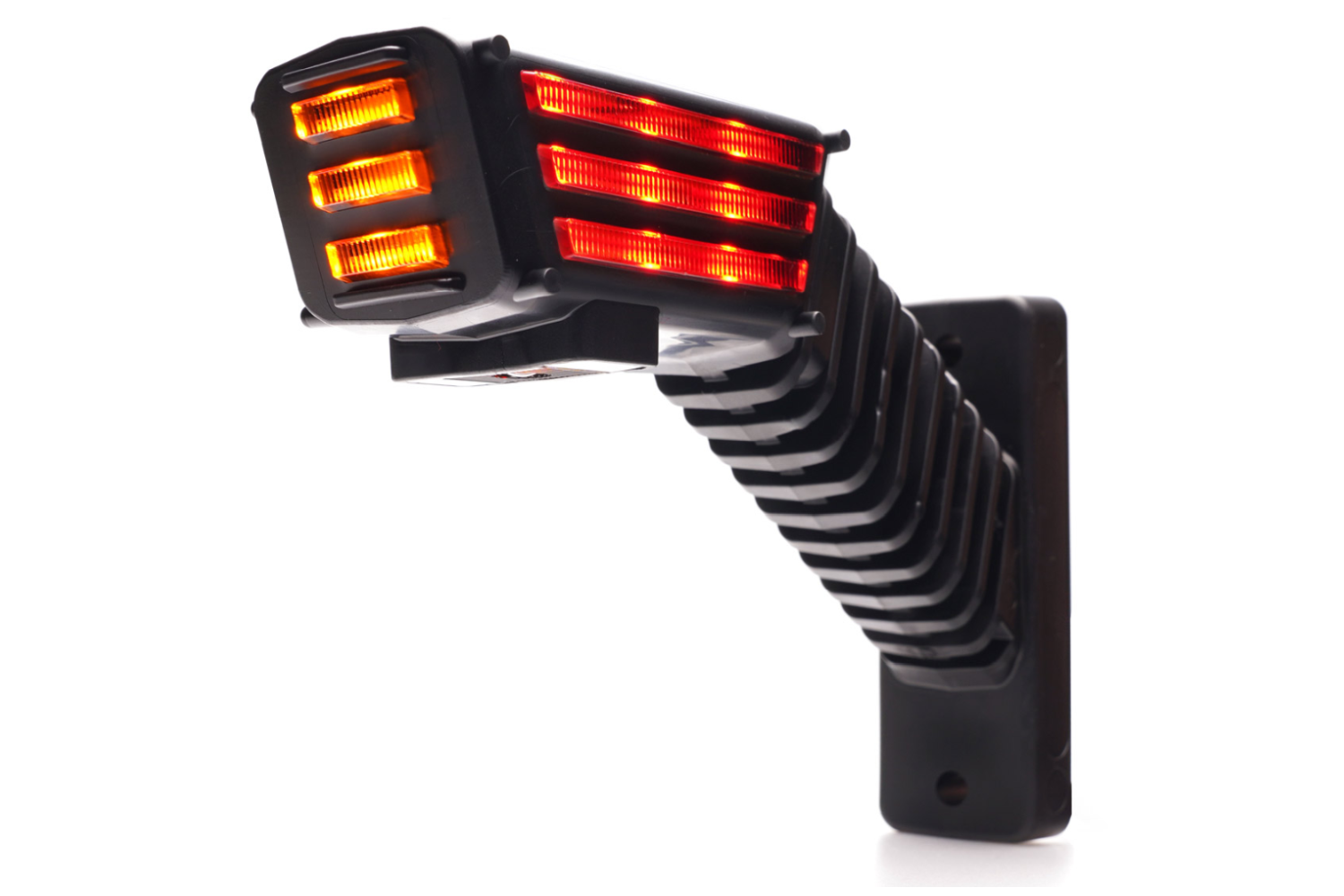

WAŚ 2554L W297.4.1 SPOT LED marker lamp, left, on a boom
WAŚ 2554L W297.4.1 SPOT LED marker lamp, left, on a boom

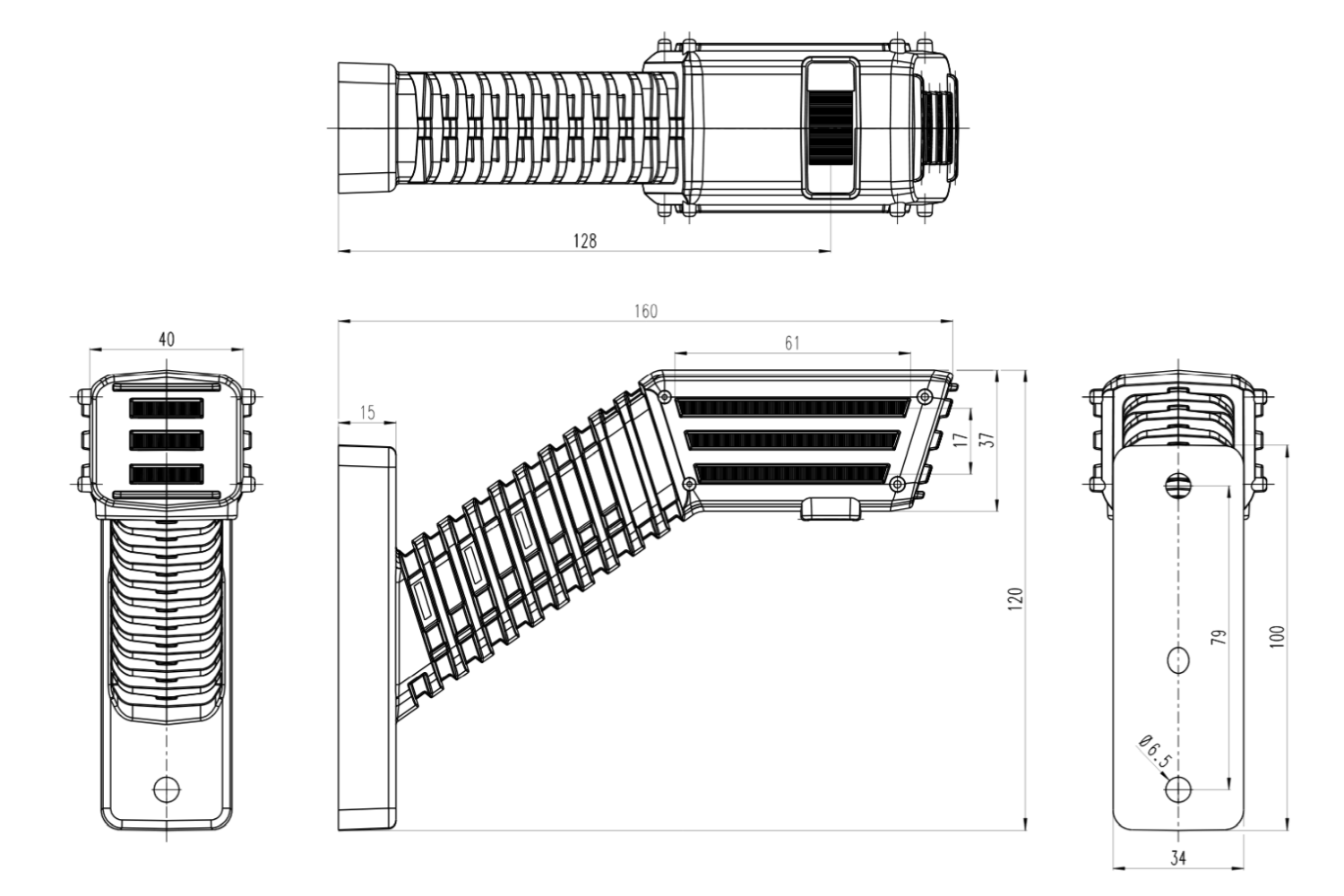

The 2554L W297.4.1 SPOT marker lamp by WAŚ , designed for mounting on the left side of the vehicle , has dimensions of 160 × 120 × 40 mm . It is designed to work in 12-24 V installations and is used in trailers, trailers, agricultural machinery, and trucks.
The lamp features a boom and two single 0.4m cables for easy installation and connection. LED technology ensures energy-efficient operation, high durability, and high visibility of the contour markings in various road conditions .
The model is equipped with a SPOT module , which generates a concentrated spot of light projected onto the ground . This solution helps better monitor the vehicle's position when reversing, turning, and maneuvering in areas with limited visibility, especially after dark and on poorly lit yards, ramps, and access roads.
Lamp functions
front position light
rear position light
side marker light
SPOT moduleThe lamp has four functions: front position light (white) , which improves the visibility of the vehicle from the front, making it easier for other road users to spot it, especially after dark and in difficult weather conditions; rear position light (red) , which signals the presence of a vehicle from behind, increasing safety and reducing the risk of collision; side marker light (orange) , which highlights the contours of the vehicle and improves its visibility at night and in low light conditions; and the SPOT function , which generates a concentrated light point projected onto the ground, which makes it easier to control the vehicle's position when maneuvering in places with limited visibility.
Tightness class
Marker lamp with IP6K9K protection class is the perfect solution for use in the most demanding environments. The IP6K9K marking indicates that the lamp is completely dust-proof (IP6X) and resistant to intense water jets at high pressure and temperature (up to 80°C), in accordance with DIN 40050-9. This protection makes the lamp ideal for commercial vehicles, construction and agricultural machinery, where exposure to dust, dirt, and water is frequent and intense. It's a reliable solution that ensures durability and effectiveness in all operating conditions .
Approvals
The marker lamp is E20 homologated and ECE and EMC certified, meaning it meets European safety and quality standards. The E20 certification confirms that the product is approved for use on public roads in European Union countries. The ECE certification guarantees compliance with international vehicle lighting regulations, while EMC (electromagnetic compatibility) ensures that the lamp does not interfere with other electrical devices and is immune to external interference.
Marker lamps are a key component of agricultural and construction machinery, trailers, and semi-trailers , as they serve as a signaling device and ensure vehicle visibility on the road and in the workplace . Properly selected rear lamps can significantly improve safety for both drivers and other road users. These lamps are particularly important in low-visibility conditions, such as at night, in fog , or in challenging weather conditions. For machinery operating on construction sites or in the field, rear lamps inform other operators of the vehicle's location, minimizing the risk of collisions. Using high-quality rear lamps not only meets legal requirements but also improves the durability and reliability of equipment under demanding operating conditions.
