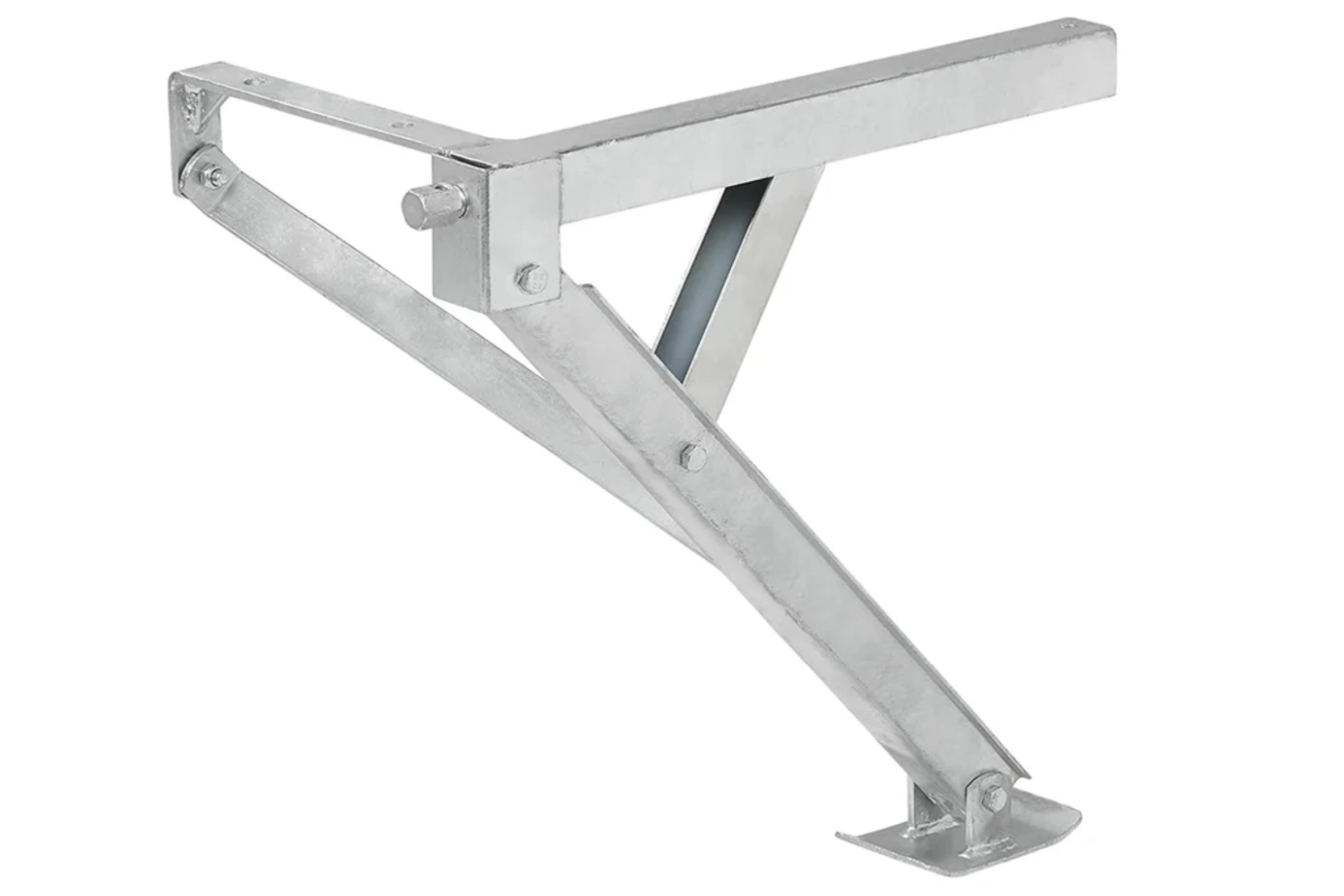

The ProPlus 361510V01 Corner Support with a tilting base is a compact stabilizing element designed for caravans and trailers without a lightweight system chassis. This model provides reliable corner support for the trailer when parked, reducing tilt and improving comfort while camping, parking, or loading.
The ProPlus 361510V01 variant is designed for mounting on the front left and rear right corners of the trailer . The support is designed to stabilize the vehicle when parked and should not be used to lift the trailer.
It's best to mount the support directly to the trailer frame , ensuring a stable and durable connection to the vehicle structure. For optimal stability, it's recommended to mount the supports as far outboard as possible. When using four corner supports, they should be mounted at an angle of approximately 30-45° . The support's tilting base helps it better adapt to the ground and distributes pressure evenly when parked. This solution increases the trailer's stability, especially on slightly uneven surfaces . To ensure proper load-bearing capacity, the corner support should always be extended by more than half its working length.
Permissible load
The extendable corner support is designed to support a load of 600 kg per support , ensuring stable and safe support for the trailer when parked. Using four supports allows for even stabilization of the structure and increases the stability of the entire vehicle. These supports should only be used for stabilization ; they are not intended for lifting the caravan.
Extension length

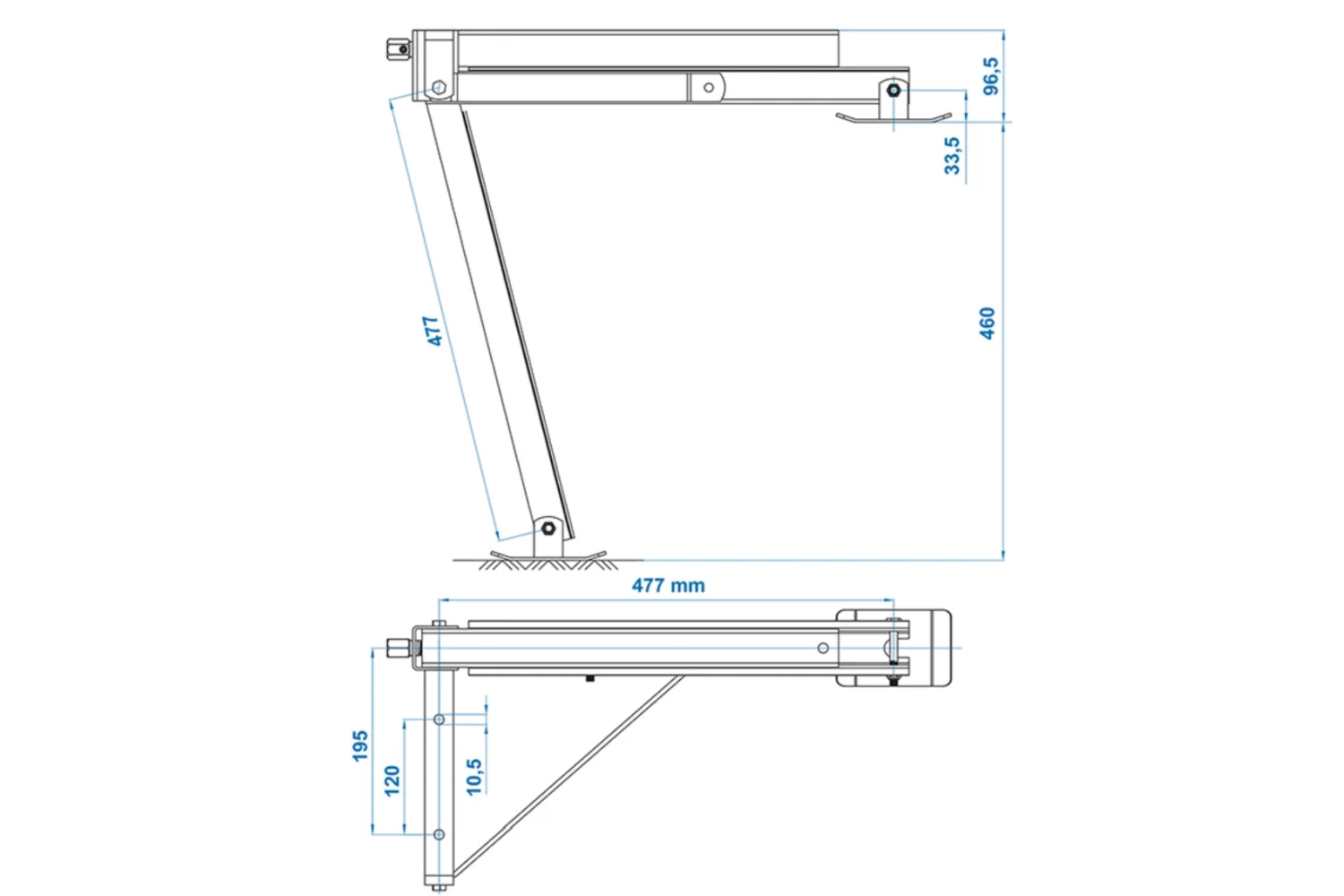

The support's extension length is 460 mm , allowing for convenient adjustment of the support height to suit various ground conditions and trailer design. The appropriate adjustment range allows for stable trailer positioning when parked, loaded, or in use. To ensure load capacity, the corner support should always be extended by more than half its length.
Attachable crank
The corner support is operated using a push-on crank (not included) , which allows for convenient raising and lowering of the support. The mechanism is controlled using a 19mm hex key , ensuring simple and precise height adjustment and stable trailer support when parked. This allows the support to be easily rotated up or down without the need for additional locking or releasing of the mechanism , allowing for quick and convenient preparation of the trailer for parking or driving.
Anti-corrosion protection
The support is made of galvanized steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The zinc coating protects the steel components from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage.
Corner supports are a practical piece of trailer equipment used to stabilize the trailer during parking, loading, and unloading . They provide reliable structural support, reduce tilt, and increase safety around the trailer. Fixed supports are most often mounted on the rear or side of the frame and help maintain stability, especially when the trailer is not connected to a vehicle. They are not designed to lift the trailer with a load, but rather to provide stable support. This practical solution is used on cargo trailers, boat trailers, and caravans , improving comfort and safety.
