ProPlus 610900V01 camper roof window roof vent 280x280mm

ProPlus 610900V01 camper roof window roof vent 280x280mm

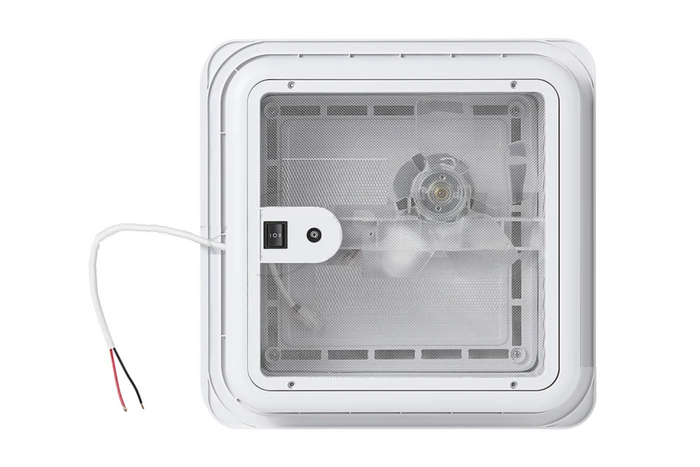

The 610900V01 ProPlus Motorhome Roof Light is a compact, high-quality roof light equipped with a powerful 12V electric fan . Designed for smaller motorhomes, campervans, and trailer bathrooms, where efficient air circulation and the ability to quickly remove moisture and odors (exhaust function) are key. This model doesn't have a permanent, open air vent, allowing for complete control over the microclimate inside the vehicle .

Key features and parameters:

• two-way 12V fan: the integrated fan can operate both as a fresh air supply to the interior and as an exhaust (discharge of water vapor and used air to the outside);
• no permanent ventilation: the structure is sealed in such a way that when the cover is completely closed, no cold air or outside noise can get inside - an ideal solution for colder days or winter trips;
• protection against insects: the window is equipped with a dense, integrated mosquito net that effectively protects the interior of the vehicle against mosquitoes, flies and other insects when the cover is fully open;
• high UV resistance and durability: the white cover and frame are made of high-quality plastic resistant to degradation under the influence of solar radiation (does not turn yellow or crumble);
• wide installation range: the design allows installation in roofs with a thickness of 28 mm to as much as 80 mm , which makes them extremely universal and adapted to most insulation thicknesses used in the caravanning industry.

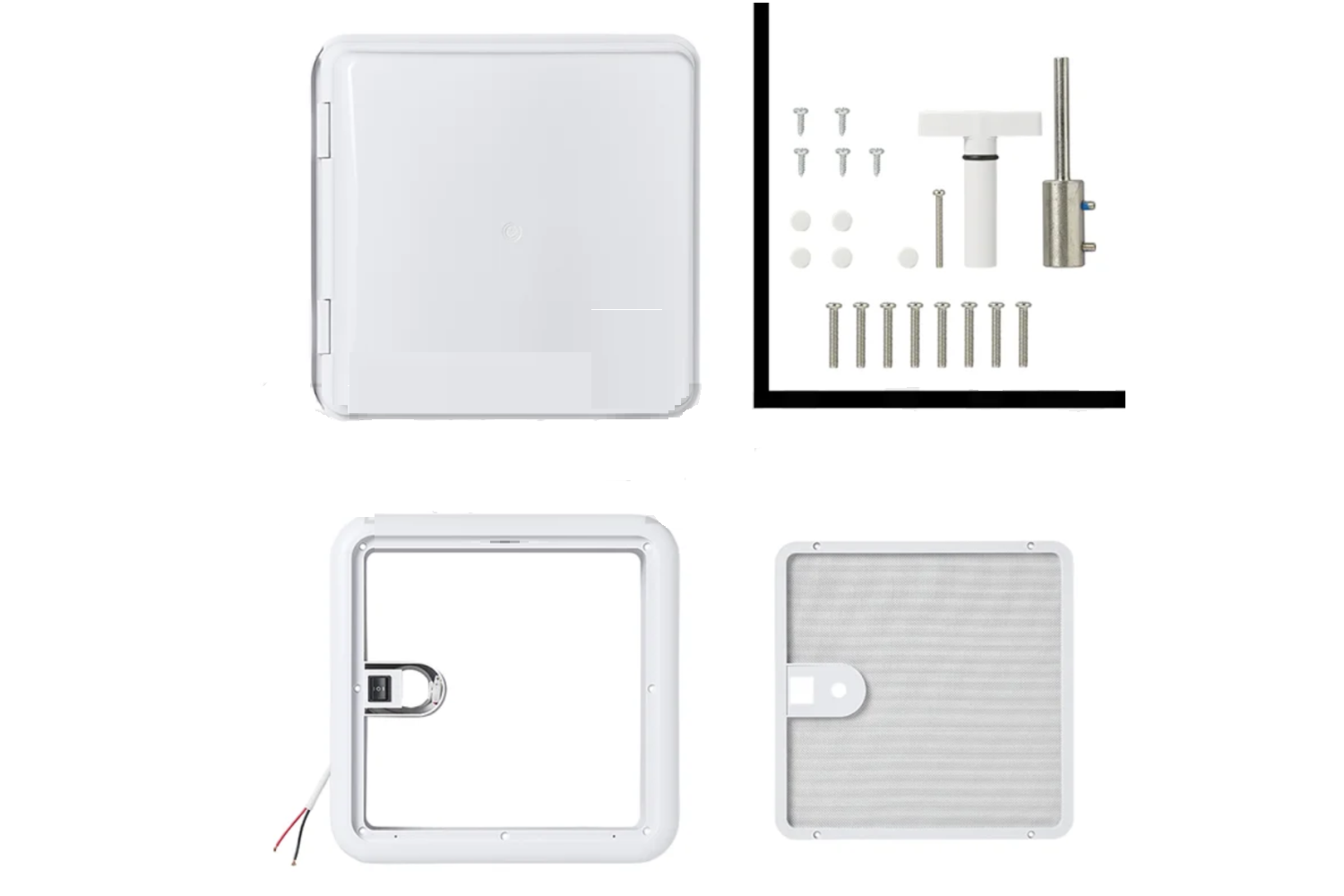

The window cover opens and closes manually (using a convenient mechanism). The maximum opening angle of the cover is 50° , ensuring optimal airflow while protecting against driving rain. The kit includes all necessary mounting hardware.

Dimensions:

• mounting hole in the roof: 280 × 280 mm
• permissible roof thickness: 28 – 80 mm
• total external width: 363 mm
• total external length: 358 mm
• dimensions of the inner masking frame: 320.5 × 320.5 mm
• passage light dimensions (internal): 278 × 278 mm
• external height above roof line (window closed): 84.5 mm
• maximum overall height (when opened at 50°): 307.5 mm
• depth of the inner frame extending into the ceiling: 35 mm
