ProPlus 341510 jockey wheel 150kg 48mm 800-1040mm with scale
ProPlus 341510 jockey wheel 150kg 48mm 800-1040mm with scale

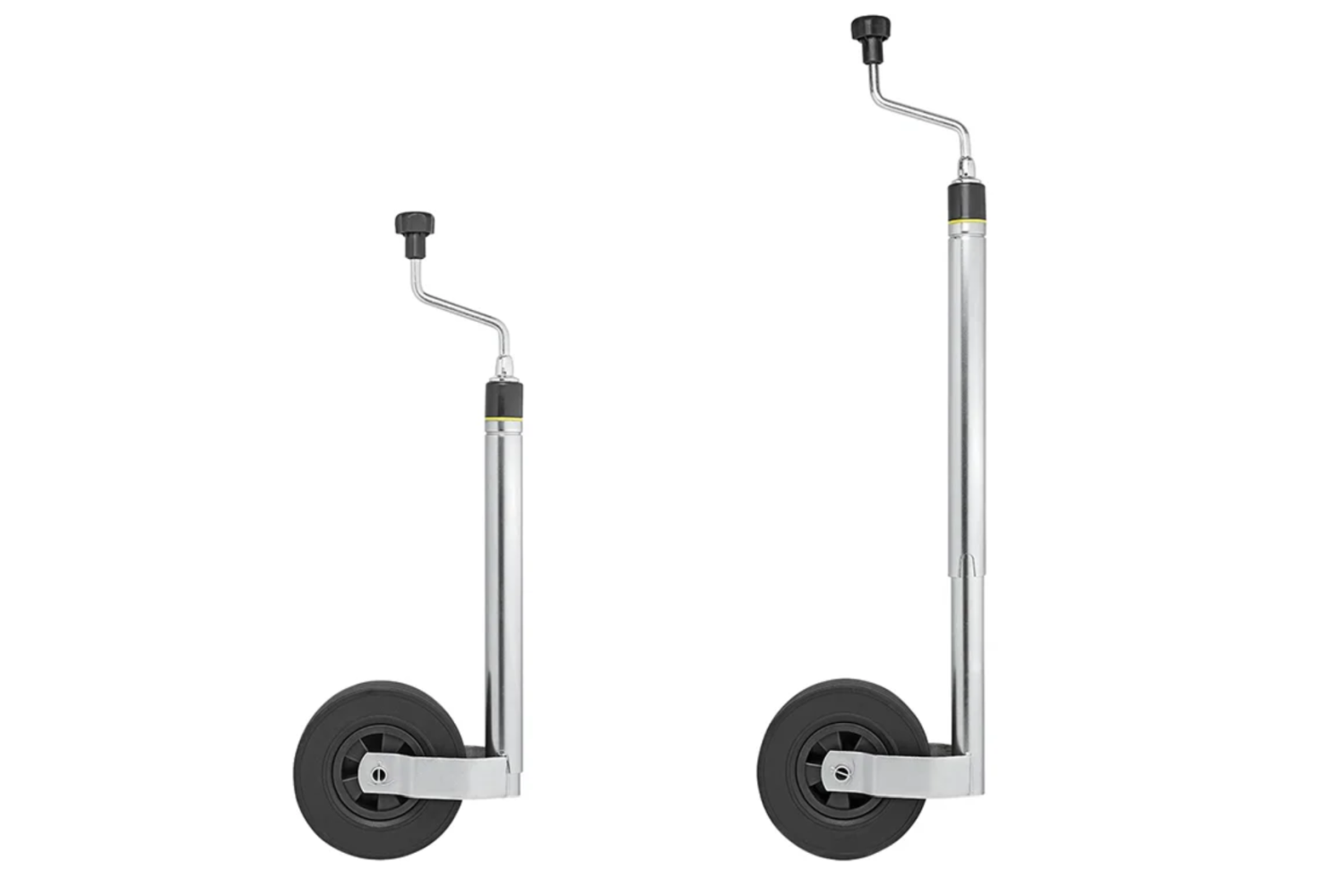

The ProPlus 341510 jockey wheel features a 48 mm diameter tube and a total height of 800 mm , including the wheel, ensuring a solid, stable construction and comfortable operation. The model also features a hook load indicator with a weighing function , allowing you to monitor the drawbar load up to a maximum of 125 kg.
A jockey wheel is a practical trailer accessory that stabilizes the trailer when parked and facilitates maneuvering and rolling the trailer around a yard, driveway, or campsite. It allows for convenient coupling and uncoupling of the trailer from the towbar, as well as precise positioning. Jockey wheels are designed to stabilize the trailer – they are not intended for lifting a loaded trailer . They are an ideal solution for cargo trailers, boat trailers, and caravans , increasing comfort and safety.
Permissible load
The permissible load when parked is 150 kg , providing stable support for the trailer during loading, unloading, and parking. During maneuvering, the maximum load is 90 kg , ensuring safe rolling and positioning of the trailer without the risk of overloading the mechanism. Proper adherence to these limits ensures product durability and safe operation.
Extension length
The support wheel extension is 240 mm , providing a suitable range of drawbar height adjustment. The height with the wheel is 800 mm, and the maximum height with extension reaches 1040 mm . This range allows for convenient adjustment of the trailer to various ground conditions and facilitates connecting and disconnecting it from the tow bar, increasing comfort and stability when parked.
Type of wheel
The 220 x 65 mm wheel is equipped with a solid rubber tire , eliminating the risk of punctures and ensuring high durability during use. The steel rim reinforces the structure, increasing resistance to loads and mechanical damage, ensuring stable and reliable operation in various operating conditions.
Anti-corrosion protection
The jockey wheel is made of galvanized steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The zinc coating protects the steel components from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage.
