License plate frame with LED lighting TT TECHNOLOGY TT.11013 driving light and position light 12/24V
License plate frame with LED lighting TT TECHNOLOGY TT.11013 driving light and position light 12/24V

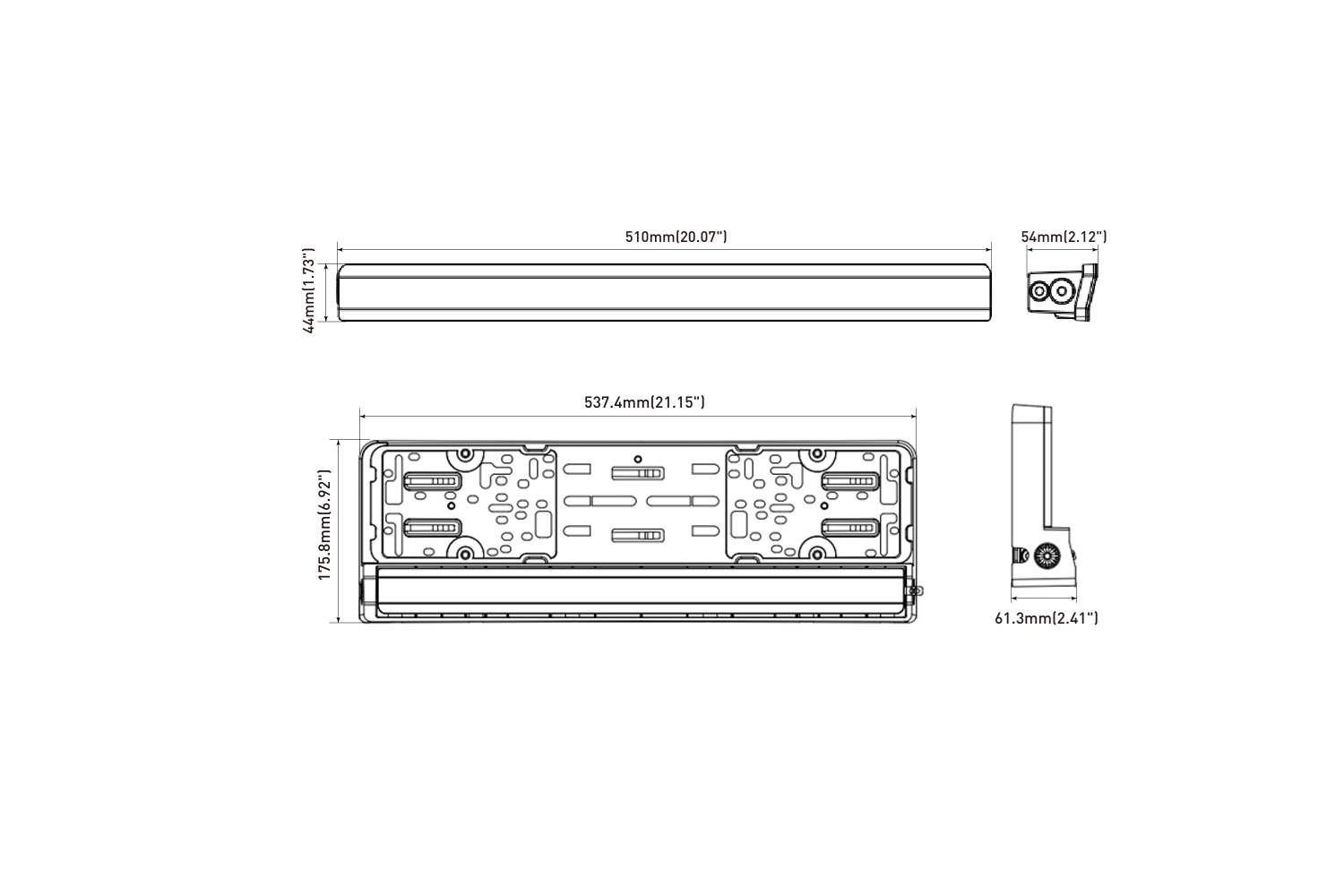

The TT.11013 LED license plate light strip with frame is a modern and robust solution designed for commercial, off-road, and specialized vehicles, trailers, tow trucks, and work equipment. The strip is 510 mm long and features a DT-4 PIN plug for easy connection.
The TT.11013 strip offers three lighting functions: high beam , white position light , and amber position light . This makes it suitable for both additional lighting when driving in difficult conditions and for improving the visibility and aesthetics of the vehicle.
The LED strip operates within a voltage range of 9-32V , making it suitable for both 12V and 24V systems. The high beam has a power of 100W, 10 LEDs , and generates a luminous flux of 9500lm , providing strong illumination of the road ahead. The white position light has a power of 2W and 18 LEDs , and the amber position light has a power of 2W and 18 LEDs . The SMD LEDs used emit light in a color range of 6000-6500K .
The design is made of durable materials: the aluminum housing ensures resistance to damage and good heat dissipation, while the PC lampshade protects the LEDs from external factors. The lamp operates in a temperature range of -40°C to +60°C , making it suitable for use in demanding conditions.
Tightness class
The license plate light frame with LED strip has an IP69K sealing rating , indicating very high resistance to dust, water, and harsh operating conditions . This marking confirms complete protection against dust ingress and resistance to intense water jets at high pressure and temperature. This makes the product suitable for commercial vehicles, off-road vehicles, construction machinery, and agricultural machinery, where the lighting is exposed to dust, mud, rain, road grime, and pressure washing.
Approvals
The LED strip with license plate frame bears the CE, ECE, R10, R148, R149, and ROHS markings, confirming the product's compliance with safety, quality, and vehicle application requirements. ECE R10 approval covers electromagnetic compatibility, meaning immunity to interference and the absence of negative impact on other electrical devices in the vehicle. The R148 and R149 regulations cover vehicle lighting requirements, including appropriate brightness, color, and light distribution. The ROHS marking confirms the restriction of the use of selected hazardous substances, while CISPR 25 Class 3 noise reduction indicates a limited level of electromagnetic interference.
