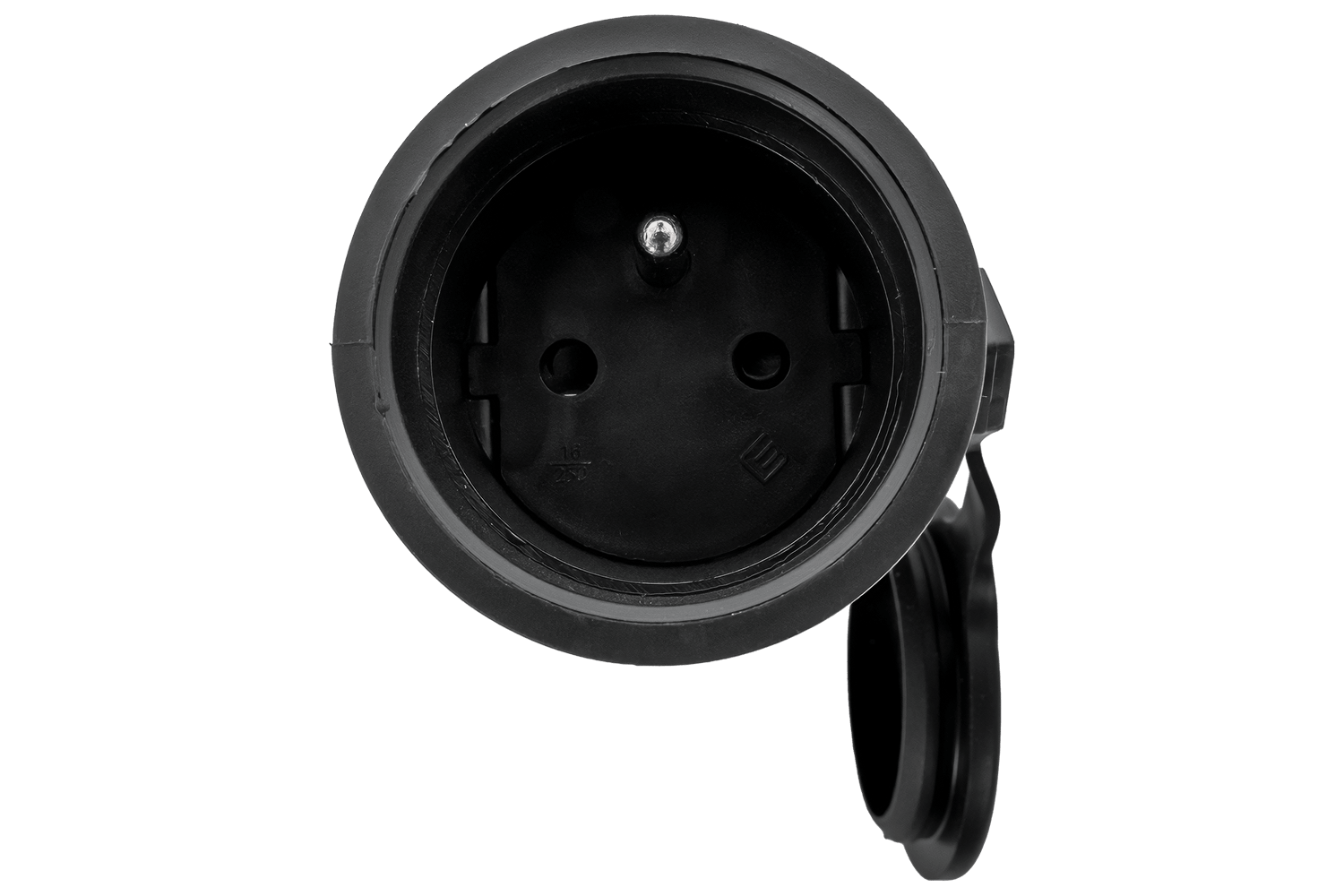

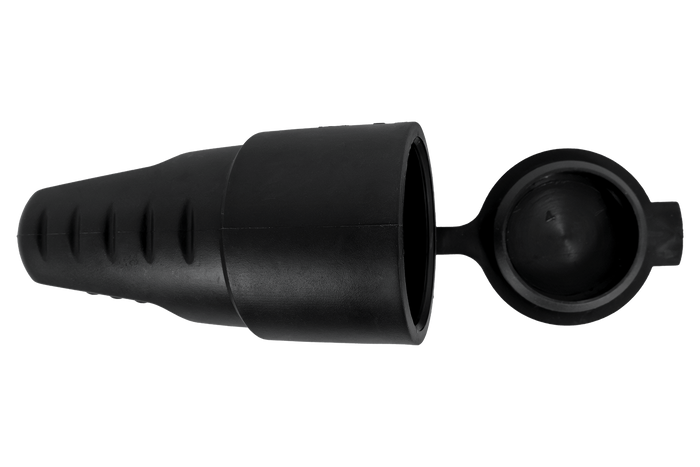

MANTES 3P female socket, rubber, with flap, 16A, 250V
MANTES 3P female socket, rubber, with flap, 16A, 250V
The MANTES 3P 16A female rubber socket is a removable connector designed for installation on a power cord . It's ideal for building and repairing extension cords and service cables used in garages, workshops, gardens, construction sites, industrial facilities, and outdoor applications. The female model enables a stable connection with the appropriate plug, ensuring safe power delivery to electrical devices.
The rubber casing increases the socket's resistance to impact, shock, abrasion, and heavy use in harsh environments. This material is well-suited for outdoor use, where electrical equipment is exposed to dirt, moisture, ground contact, or frequent handling. The socket is grounded, rated for 250 V and 16 A , and has a maximum wire cross-section of 3 × 2.5 mm².
A protective cover protects the socket's interior from dust, dirt, and moisture when the connector is not in use. The IP44 rating provides protection against foreign objects and water splashes from all directions , so the socket can be used in locations exposed to rain, moisture, and typical outdoor conditions. However, it is not intended for immersion in water or operation in areas subject to constant flooding.
Technical specifications:
- female socket
- number of pins: 3P
- with grounding
- voltage: 250V
- rated current: 16A
- protection class: IP44
- color: black
- standard: French
- max. wire cross-section: 3x2.5mm2
- lockable protective flap
- material: durable technical rubber
- CE declaration
