DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm
DROMET type B oval clamp M10 23×41mm

DROMET type B oval clamp M10 23×41mm

  • The DROMET M10 23×41 mm Type B U-bolt is an oval, steel U-bolt clamp designed for stable attachment of various structural elements. Its simple design and durable construction make it widely applicable in assembly work.
Producer: DROMET
Thread diameter: M10
Mounting spacing: 23 mm
Width: 33 mm
Total height: 41 mm
1,89 €
1,54 € Net price
Add to compare
Express checkout 1-Click(without registration)
189 pts.
1.89 pts.

DROMET type B oval clamp M10 23×41mm

1,89 €
1,54 € Net price
    189 pts
    1.89 pts
    Frequently Asked Questions (FAQ)Reviews about the productAsk a question
    Ask a question
    If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
    Write your opinion
    Your opinion:
    5/5
    Add your own product photo:

    DROMET type B oval clamp M10 23×41mm

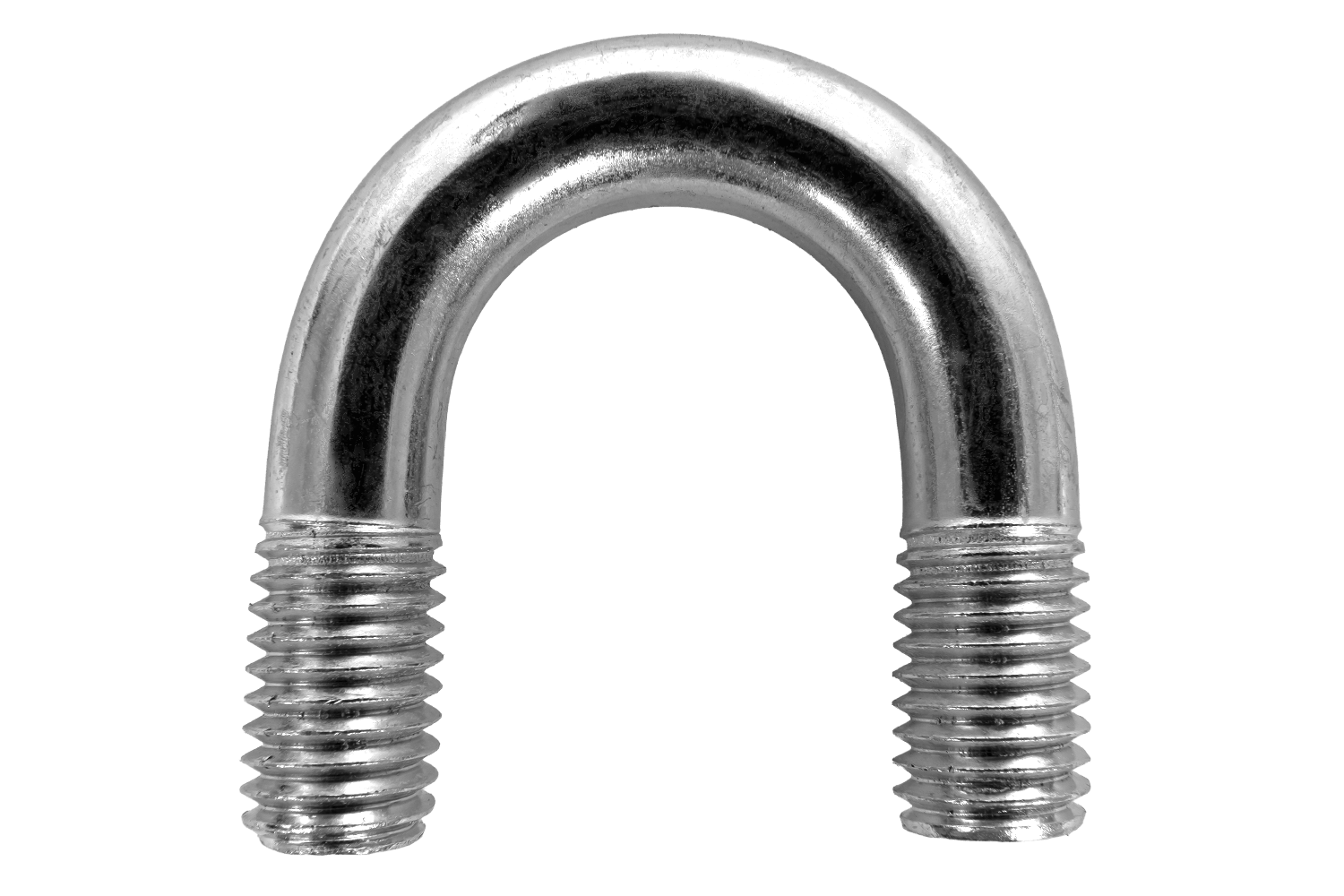

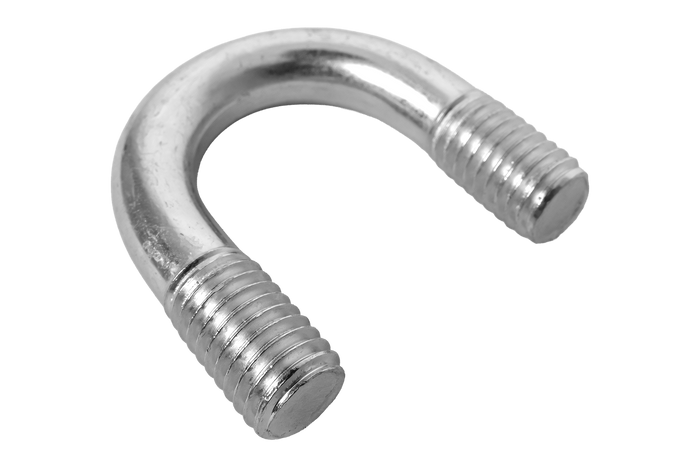

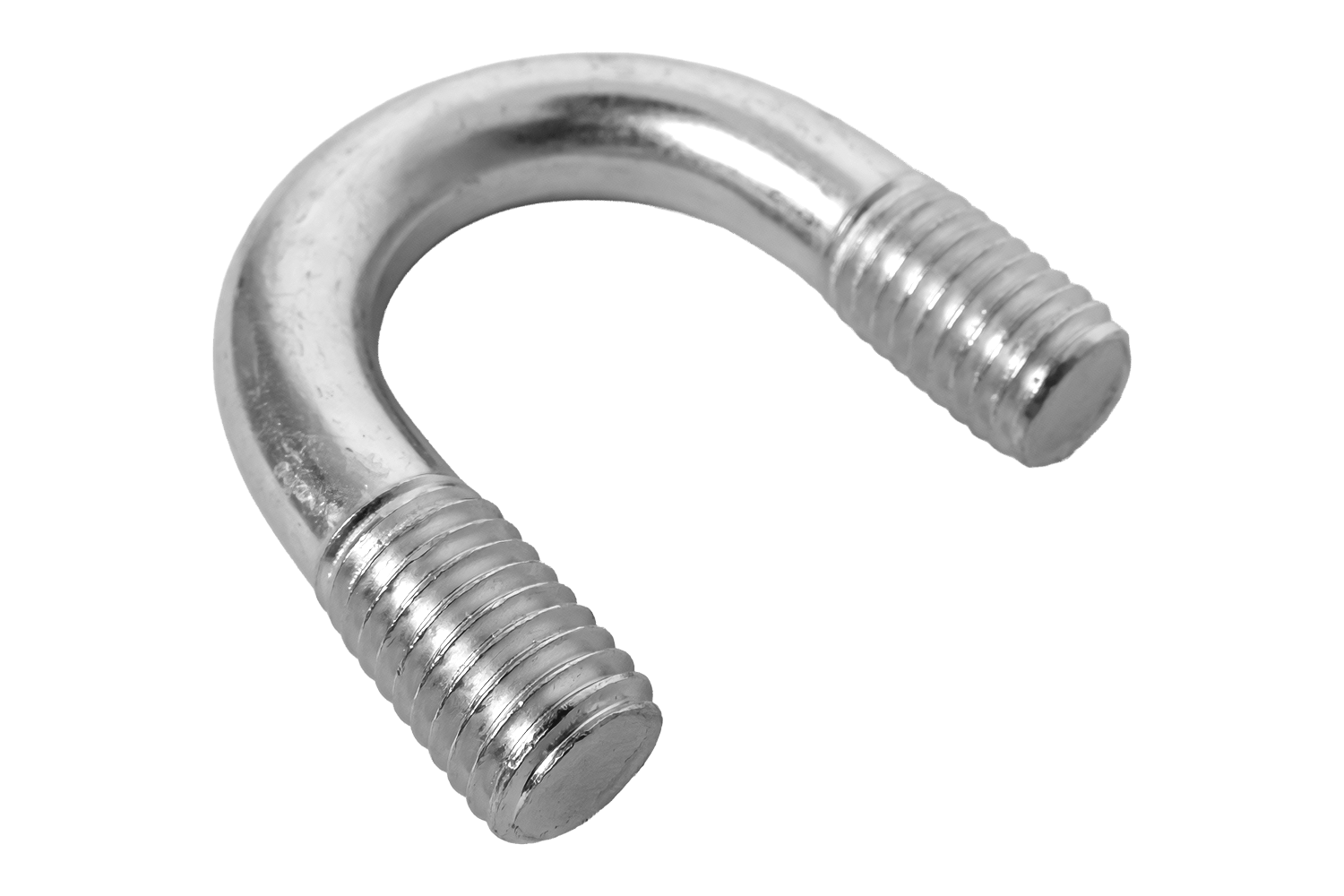

    The DROMET M10 23x41 mm U-bolt (Type B) is an oval steel clamp designed for creating durable clamp connections. Its rounded shape evenly encloses the fastened element and holds it firmly in place. The U-shaped design and two threaded ends allow for quick and secure assembly using appropriate nuts.

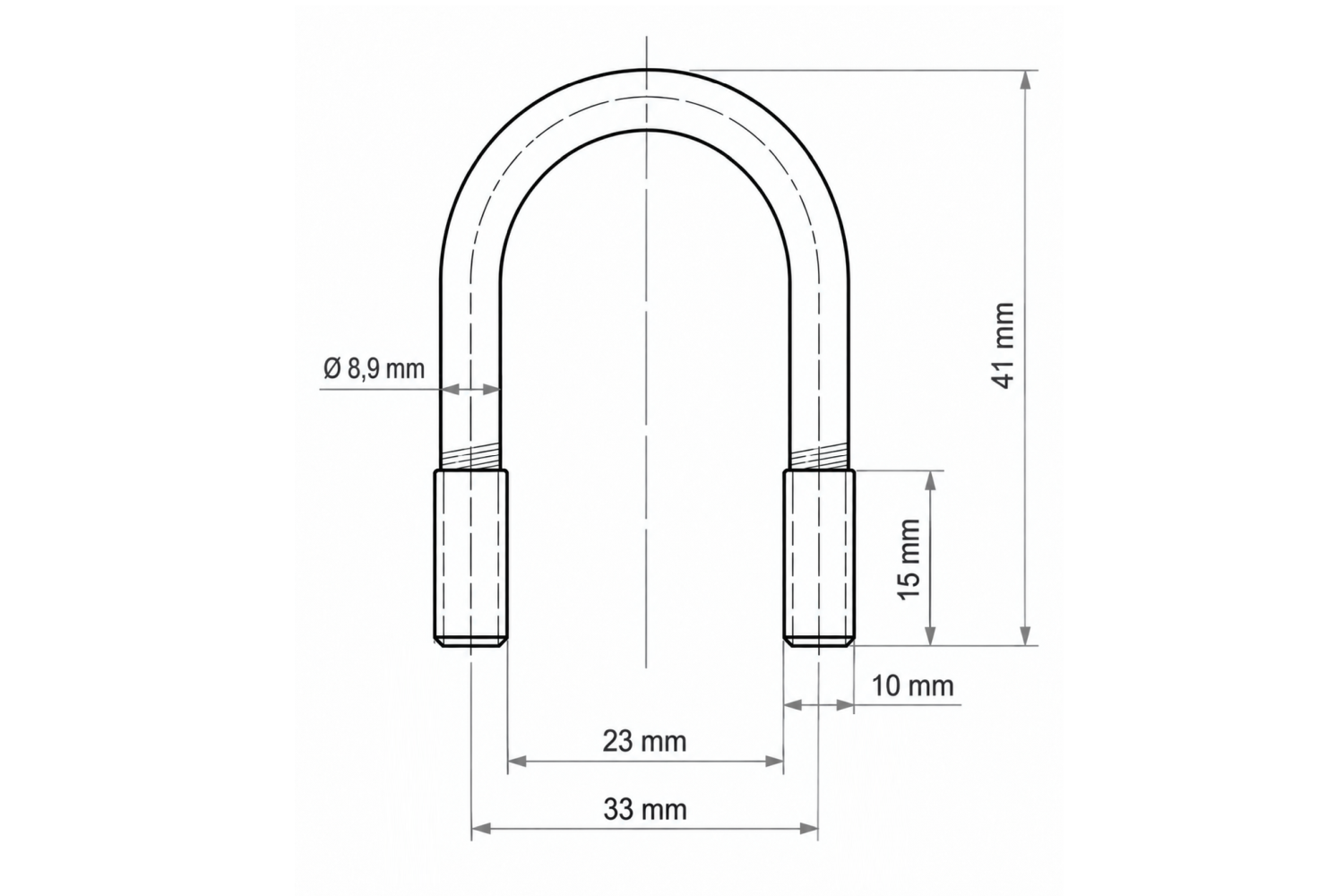

    This model has an M10 thread , a total height of 41 mm , and an internal width of 23 mm . It is made of 8.9 mm diameter rod, and the threaded section is 15 mm long. Two threaded ends allow for proper clamping and a stable connection.

    The clamp's surface is electrolytic zinc- plated, which increases resistance to corrosion, moisture, and weathering. Its simple design facilitates both assembly and disassembly during service or when replacing attached components.

    Oval, U-bolt type B clamps can be used in a variety of technical and construction applications. They are suitable for securing pipes, rods, and rounded elements , as well as trailers, industrial and agricultural machinery, steel structures, and technical installations. Before installation, select the clamp size appropriately for the dimensions of the component being fastened.

    Producer
    DROMET
    Product code
    UT016739
    Thread diameter
    M10
    Diameter of the smooth part of the rod
    fi. 8,9 mm
    Mounting spacing
    23 mm
    Width
    33 mm
    Thread length
    15 mm
    Total height
    41 mm
    Protection against corrosion
    zinc min 8µm
