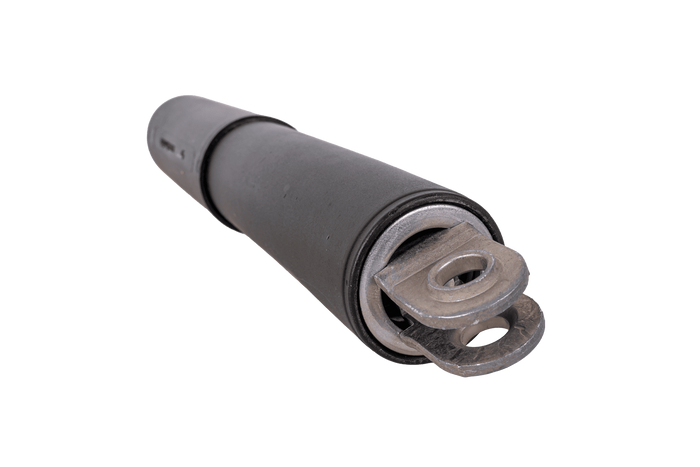

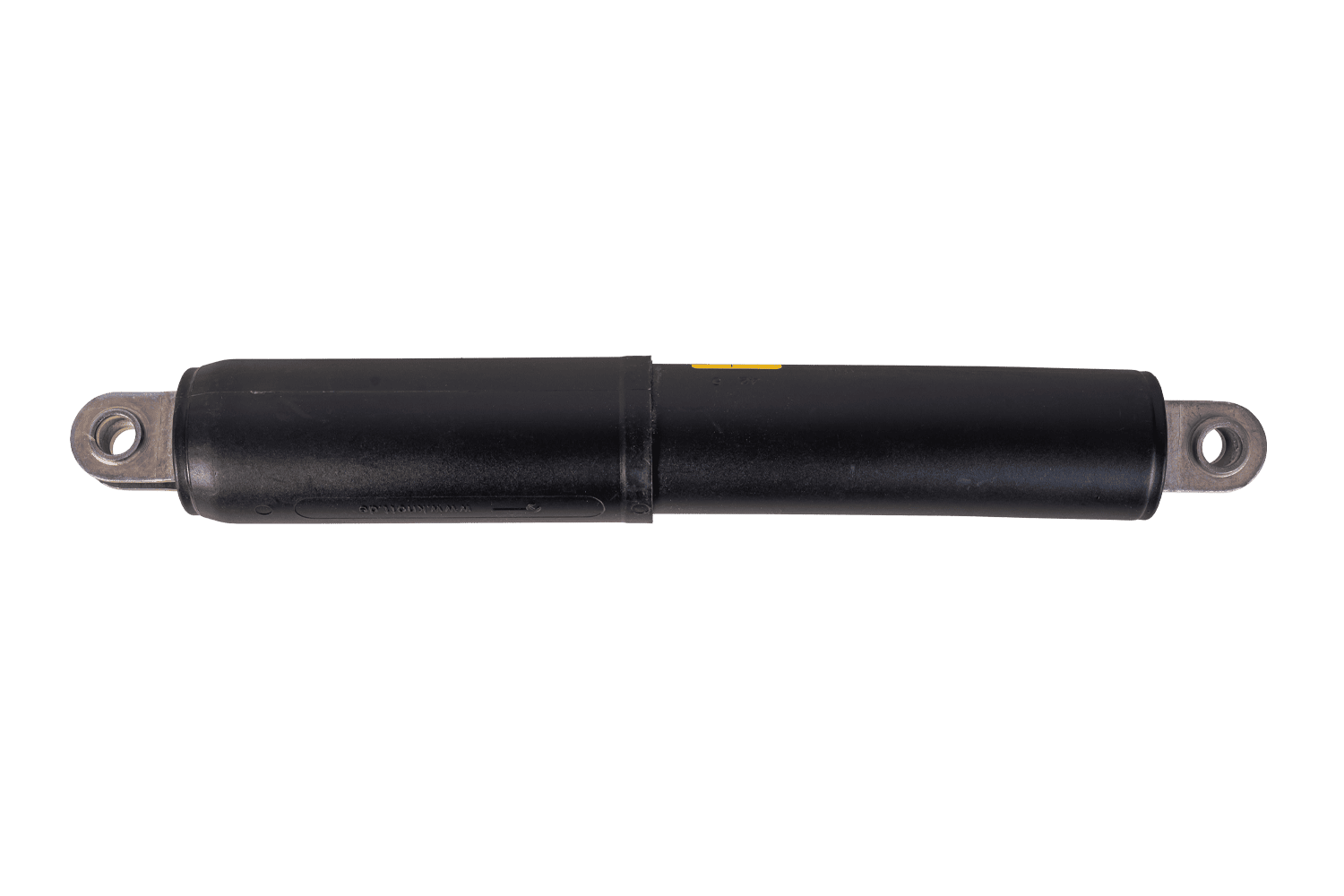

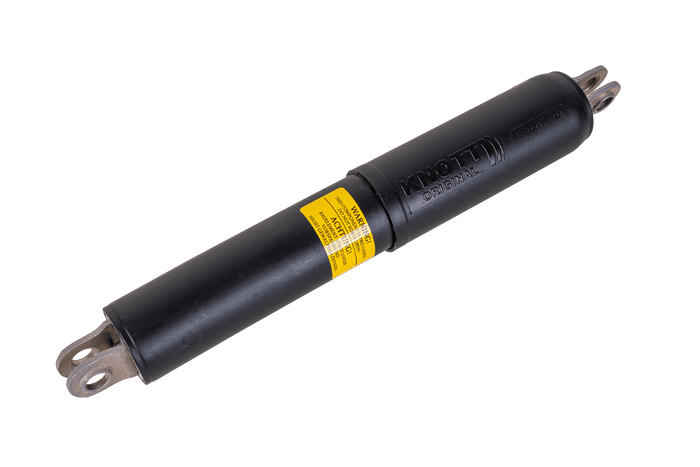

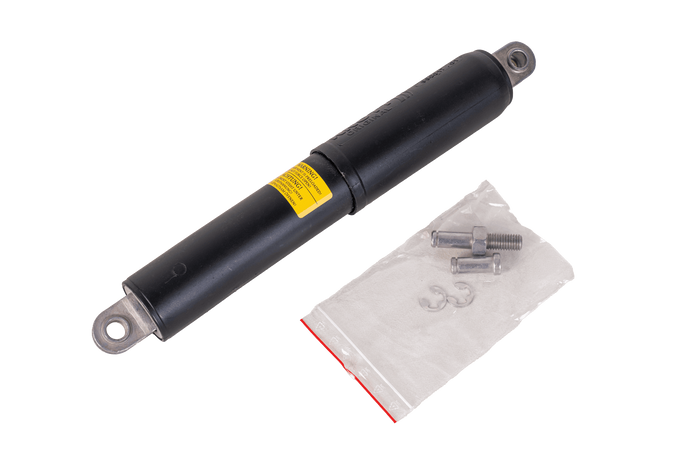

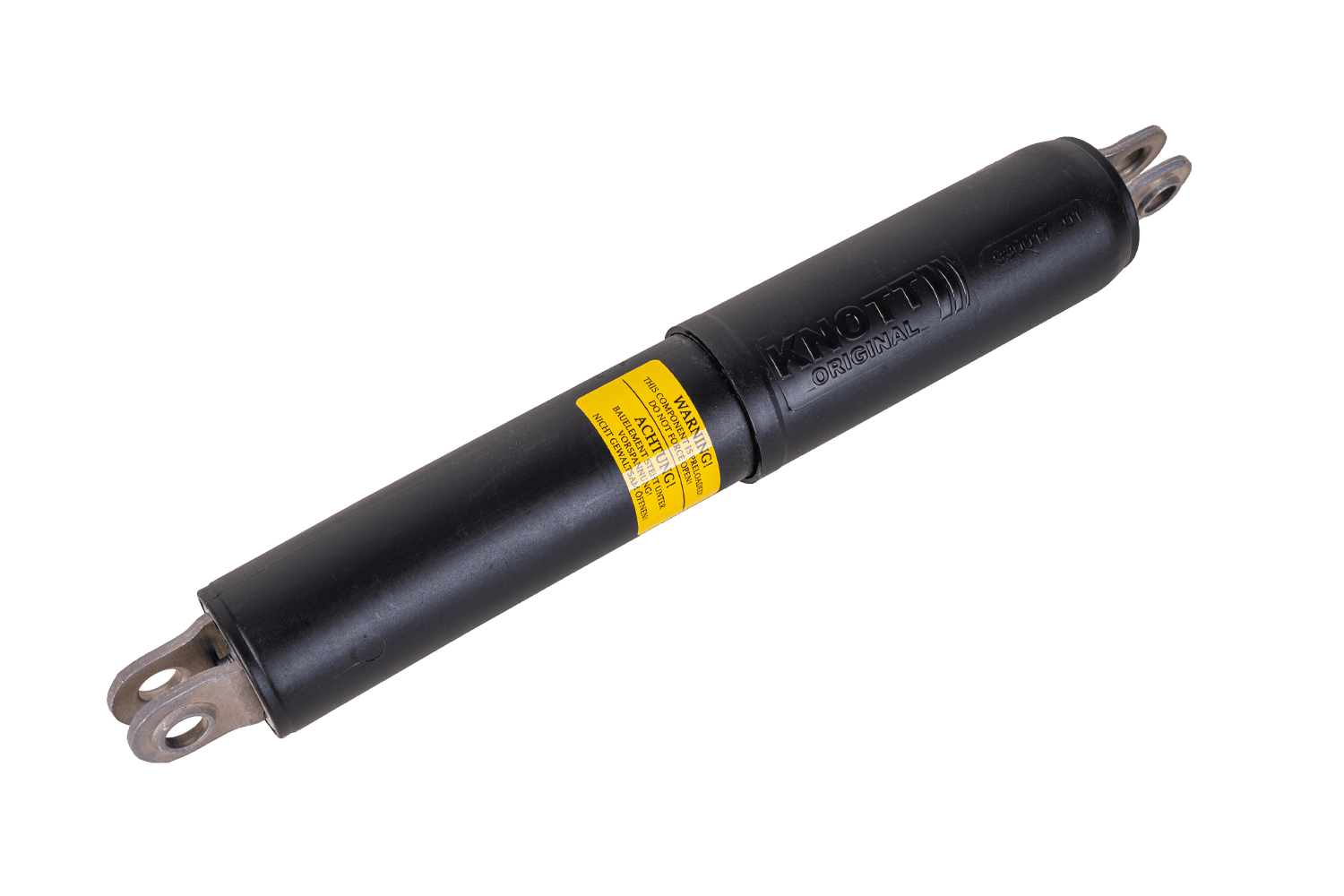

KNOTT KF-GF1 overrun device/brake shock absorber for trailer
KNOTT KF-GF1 overrun device/brake shock absorber for trailer
The KNOTT KF-GF1 handbrake lever gas spring is a unique shock absorber that supports the handbrake lever in overrun devices. This component ensures smooth operation of the mechanism, facilitates applying and releasing the brake , and helps maintain proper system tension when the trailer is stationary.
The product is suitable for servicing and repairing braking systems in cargo trailers, flatbed trailers, boat trailers and other trailers equipped with compatible Knott overrun devices.
The gas spring is made of high-quality materials and features anti-corrosion protection, making it suitable for outdoor use. Its proper operation improves the comfort of using the handbrake, reduces jerky lever movements, and contributes to the safety of trailer parking .
Compatibility with overrun devices:
- KF7.5
- KF13
- KF17
- KF20
- KF27
A worn gas spring can cause the handbrake lever to feel stiff when lifted or to drop on its own. When replacing it, it's worth checking the condition of the mounting pins and lubricating the moving parts of the brake mechanism.
Dimensions:
- maximum length (measured from the centers of the mounting holes): 290 mm
- minimum length (measured from the centers of the mounting holes): 191.5 mm
- working stroke: 98.5 mm
- outer body diameter: 43.5 mm
- diameter of mounting holes: 10.3 mm
- mounting sleeve width: 18.4 mm
