AL-KO 200V overrun device/brake shock absorber
AL-KO 150V overrun device/brake shock absorber
The AL-KO 200V overrun device shock absorber is a component of the trailer braking system, designed for AL-KO 200V overrun devices . It is responsible for smooth operation of the overrun brake, damping forces generated during braking, and reducing jerks when starting and stopping the combination.
This model is equipped with a 37.5 mm mounting sleeve, allowing for proper seating in a compatible overrun device. The shock absorber gradually absorbs the pressure of the slider, improving driving comfort and braking safety for caravans, cargo trailers, or utility trailers.

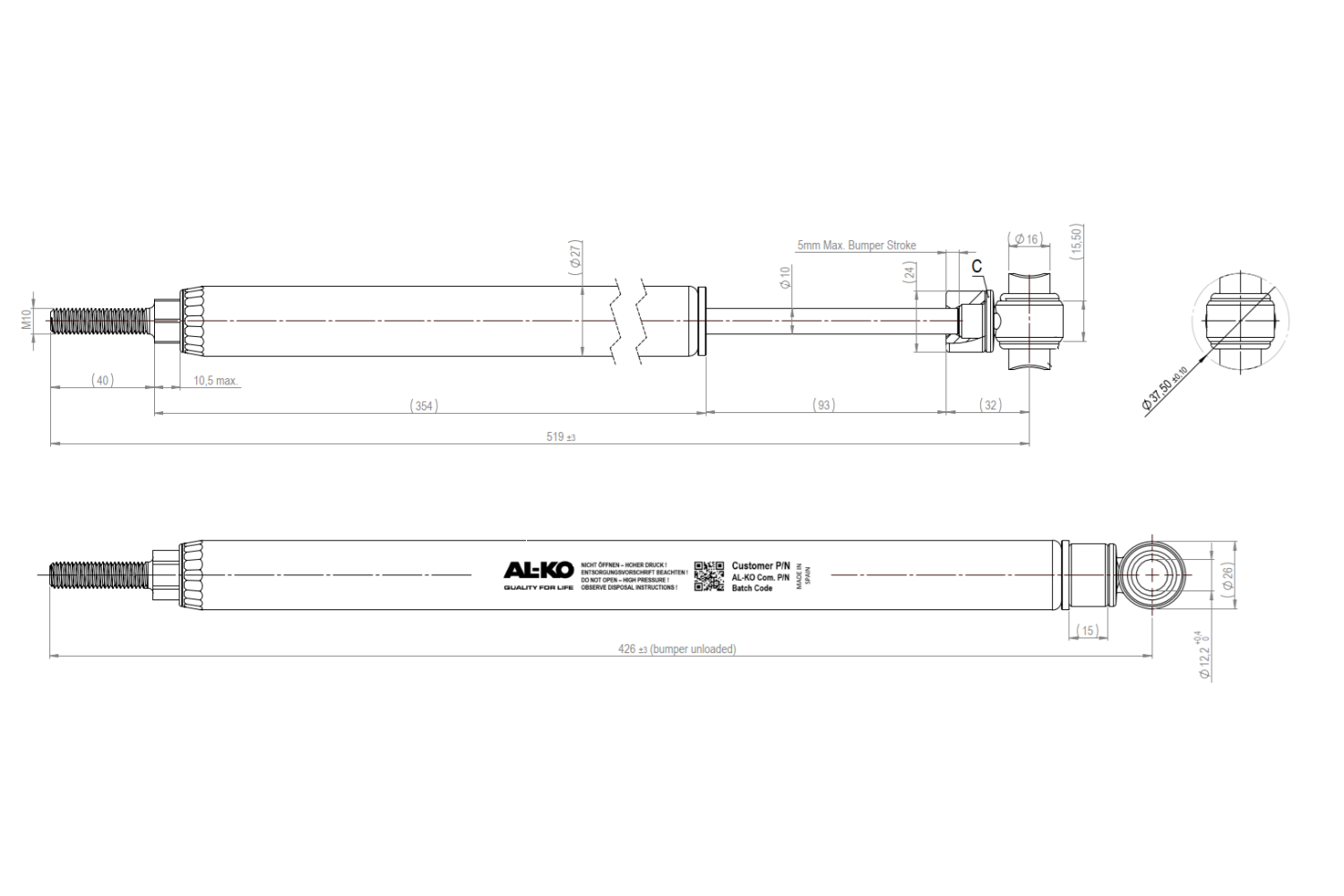

Parameters:
- type : shock absorber of the overrun device
- compatibility : AL-KO 200V
- maximum length : 519 mm
- minimum length : 426 mm
- body diameter : 27 mm
- thread : M10
- rod diameter : 10 mm
- sleeve/mounting diameter : 37.5 mm
- mounting hole diameter : 12.2 mm
- maximum bumper stroke : 5 mm
The AL-KO shock absorber is designed for caravans, trailers, and utility trailers equipped with the AL-KO 150V overrun device. It works well as a service component of the braking system, providing smooth damping of the slider, reducing jerking, and improving comfort and safety when braking the trailer.
