Trailer side reinforcement 40cm for UNITRAILER Force
Trailer side reinforcement 40cm for UNITRAILER Force

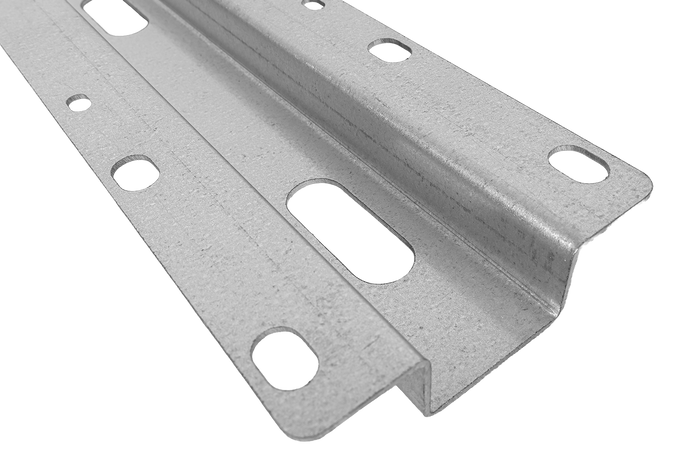

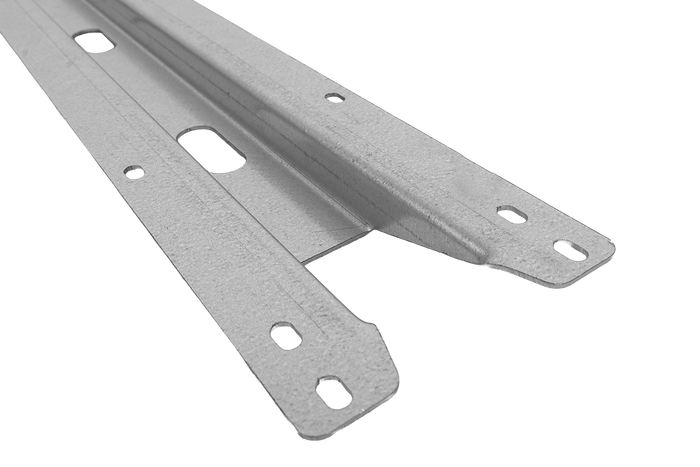

The H400 Sidewall Reinforcement Set is a dedicated solution for UNITRAILER Force trailers with 400mm high sides. The set consists of four reinforcements , each 496mm high and 127mm wide, providing effective stiffening of the entire sidewall structure.
Dedicated to UNITRAILER trailers :
- Force 230 KIPP
- Force 230/R KIPP
- Force 264 KIPP
- Force 264/R KIPP
The reinforcements are made of galvanized steel , making them corrosion-resistant and suitable for outdoor use . These elements increase the rigidity of the structure, improve the stability of the sides , and limit their deformation during cargo transport, especially when the sides are exposed to higher loads, vibrations, and pressure from the transported materials.
The kit includes all necessary mounting hardware, including screws, washers, bolts, and self-locking nuts. This makes the kit ready for installation, eliminating the need for additional accessories . The self-locking nuts help prevent connections from loosening due to vibration while driving.
Set contents:
- 4× H400 side reinforcement
- 16× hexagon head bolt M8×20
- 16× M8 washer
- 16× self-locking nut M8
- 24× cheese head screw M5×16
- 24× M5 washer
- 24× self-locking nut M5
