Extendable support with UNITRAILER TJ5001+TJ5002A adapter for 1300kg flatbed trailer 364-614mm

Extendable support with UNITRAILER TJ5001+TJ5002A adapter for 1300kg flatbed trailer 364-614mm

UNITRAILER set including a fixed support and a dedicated clamp , ensuring stable and safe support of the trailer during parking and loading work.

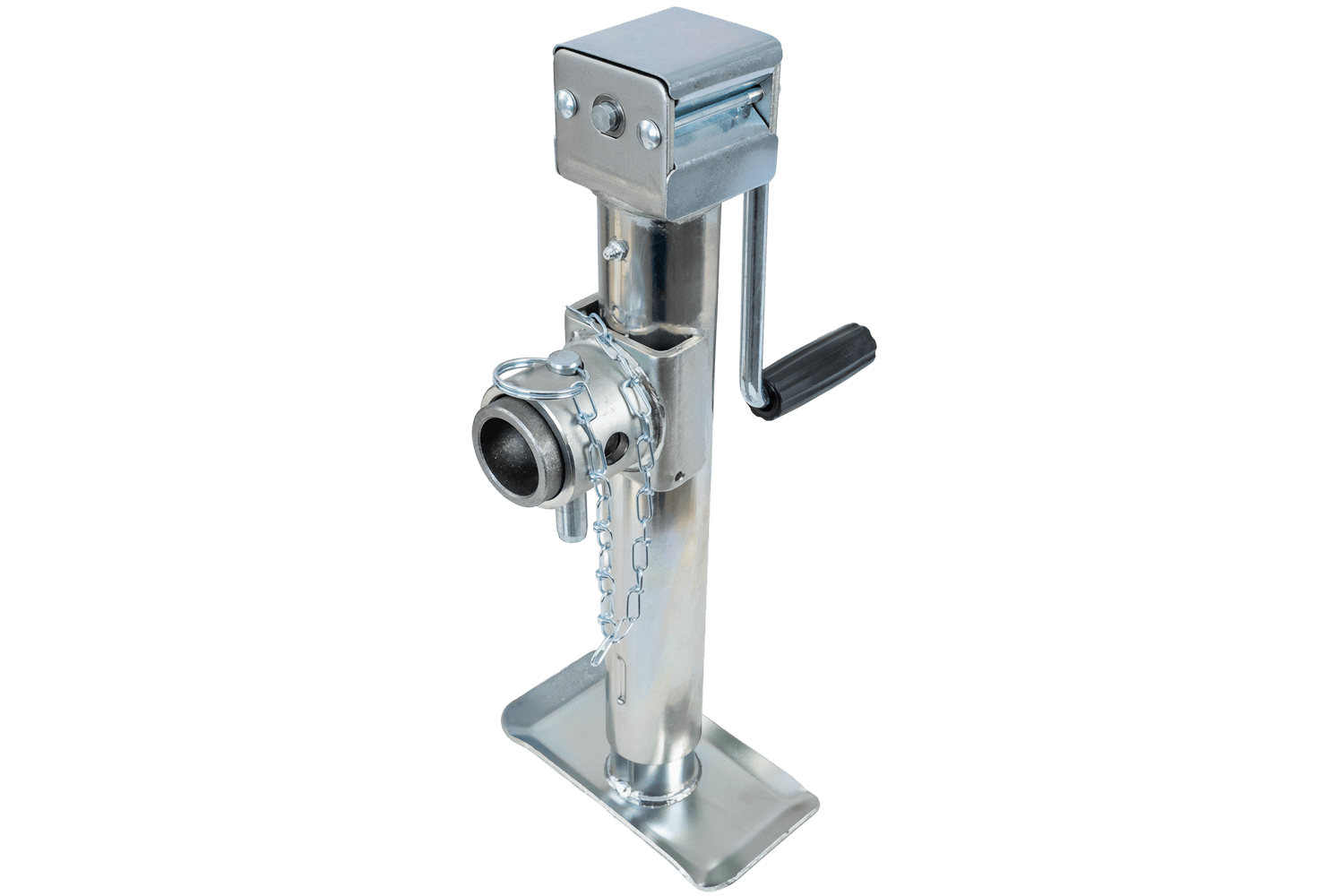

The TJ5001 extendable support leg features a 57 mm diameter tube, ensuring a solid and stable construction. Crank-type extendable supports have a higher load capacity , making them suitable for heavier trailers requiring stable and durable support. The support leg kit includes a sleeve for welding to the trailer , allowing for permanent installation.

The TJ5002A adapter bolts to the trailer structure , allowing for welding-free support installation. It has a 120 x 120 mm base and is equipped with four 13 mm diameter mounting holes spaced 80 x 80 mm apart, allowing for solid and durable mounting to the trailer frame.

Permissible load

The support's maximum load capacity is 1,300 kg , ensuring stable and safe support for the trailer during parking, use, or loading. The high load capacity guarantees reliable support for the structure, reduces the risk of tilt , and increases the safety and comfort of trailer use.

Extension length

The support's extension length is 254 mm , allowing for convenient adjustment of the support height to suit various ground conditions and trailer designs. Combined with the 364 mm tube, the total support height is 614 mm , ensuring stable trailer positioning when parked, loaded, or in use. The appropriate adjustment range allows for stable trailer positioning when parked, loaded, or in use.

Tilt

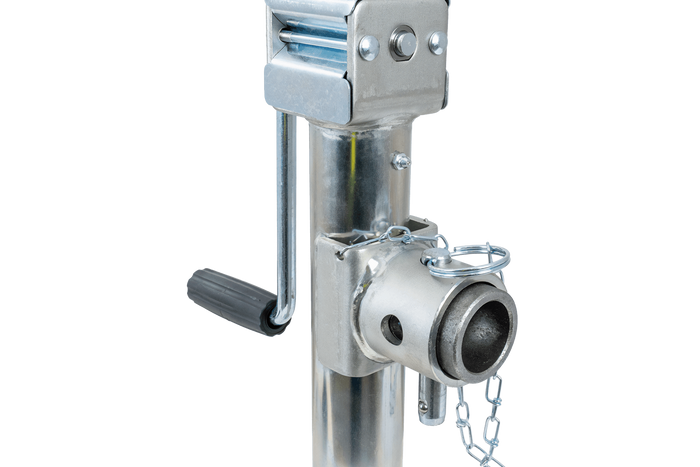

The extendable support leg features a tilt function that allows for quick and easy transport positioning. After use, it can be rotated and mounted horizontally on the adapter , eliminating any impact on trailer clearance or obstructions during driving. This solution enhances user comfort, improves safety, and protects the support leg from damage during transport.

Crank

The extendable support is operated by a side-mounted crank , which allows for convenient raising and lowering of the support. The fixed crank ensures simple and quick height adjustment and stable support for the trailer when parked, making it easier to prepare for use.

Anti-corrosion protection

The support is made of powder-coated steel , providing effective protection against corrosion and long service life, even with intensive outdoor use. The paint coating protects the steel components from moisture, road salt, and changing weather conditions, increasing the durability and resistance of the structure to damage.

Extendable crank supports are a practical trailer accessory used to stabilize the trailer during parking, loading, and use . Height adjustment is achieved using a crank, allowing for easy and precise adjustment of the support to the ground. They provide reliable structural support, reduce tilt, and increase safety around the trailer. They are most often mounted at the rear of the frame and help maintain stability, especially when the trailer is not connected to a vehicle. They are not designed to lift a loaded trailer , but rather to provide stable support. This practical solution is used on transport trailers, boat trailers, and caravans, improving comfort and safety.
