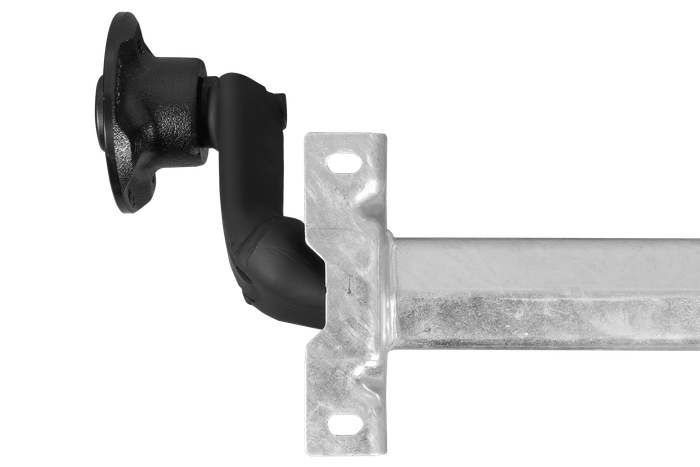

AL-KO OPTIMA unbraked axle for trailer 750kg 1500mm 1820mm 4x100
AL-KO OPTIMA unbraked axle for trailer 750kg 1500mm 1820mm 4x100
The unbraked axle from AL-KO is designed for light trailers with a maximum load capacity of 750 kg. The mounting hole spacing is 1500 mm, the hub spacing is 1820 mm, which allows for easy installation in a wide range of vehicles. The standard 4x100 bolt spacing ensures compatibility with most wheels available on the market. The swing arm length is 145 mm, which ensures stability and optimal shock absorption, thus increasing driving safety, even with a full load.
Axles are the structural foundation of every trailer, providing its stability, strength and proper cushioning during transport. They are a key element that allows for the safe transport of various loads. Choosing the right axles is important because it affects the safety, driving comfort and durability of the entire transport system. Proper cushioning helps protect the transported goods from damage, and the correct load capacity ensures stability during driving, especially in difficult conditions.
Trailer axles - versatility of use
Trailer axles are distinguished by their versatility, thanks to which they can be used in various types of vehicles, such as cargo trailers, caravans, flatbed trailers, or trailers for transporting animals and equipment. Their universal design allows them to be adapted to various transport conditions, regardless of the type of load being transported. These axles provide stability, safety and driving comfort, which makes them a reliable solution both in everyday use and for more specialized tasks. Thanks to the possibility of installing additional components, such as shock absorbers, their operation can be further optimized, adapting the trailer to individual needs.
Independent suspension and maintenance-free
Thanks to the independent suspension, each wheel is damped separately, which means that road irregularities only affect the side they are on. This system is maintenance-free and does not require maintenance, which allows users to save on servicing and maintenance costs. Additionally, the axle design eliminates the risk of damage to the wheel arch and other components due to excessive rotation of the swingarm, even under heavy load.
Driving comfort thanks to the advanced suspension system
Modern axles, such as those with the AL-KO hexagonal suspension system with rubber rollers, offer significantly improved ride comfort. Large deflection arrows and softer damping make the trailer ride smoother and vibrations are effectively reduced. Compared to standard steering axle systems, this suspension allows for more effective damping of road irregularities, which increases user comfort and safety.
Optimum protection against corrosion
The axle profile, frame and housing of the overrun devices are protected against corrosion by hot-dip galvanizing, which guarantees protection for a period of 10 years. Steel elements that require high precision are subjected to galvanizing, providing 5 years of protection against corrosion. For parts with the highest precision, electrogalvanizing is used, which protects them for 4 years. These various galvanizing methods effectively protect all components, ensuring their long durability and resistance to external factors.
Maintenance-free bearings and easy assembly
The axles are equipped with double angular contact ball bearings (compact bearings) that are designed for 250,000 km of operation. They are lubricated for life with a special water-displacing grease, which prevents the ingress of contaminants. Additional safeguards, such as double hub seals, protect the mechanisms from water and dirt. Thanks to the standardized tightening torque, axle assembly is quick and easy.
